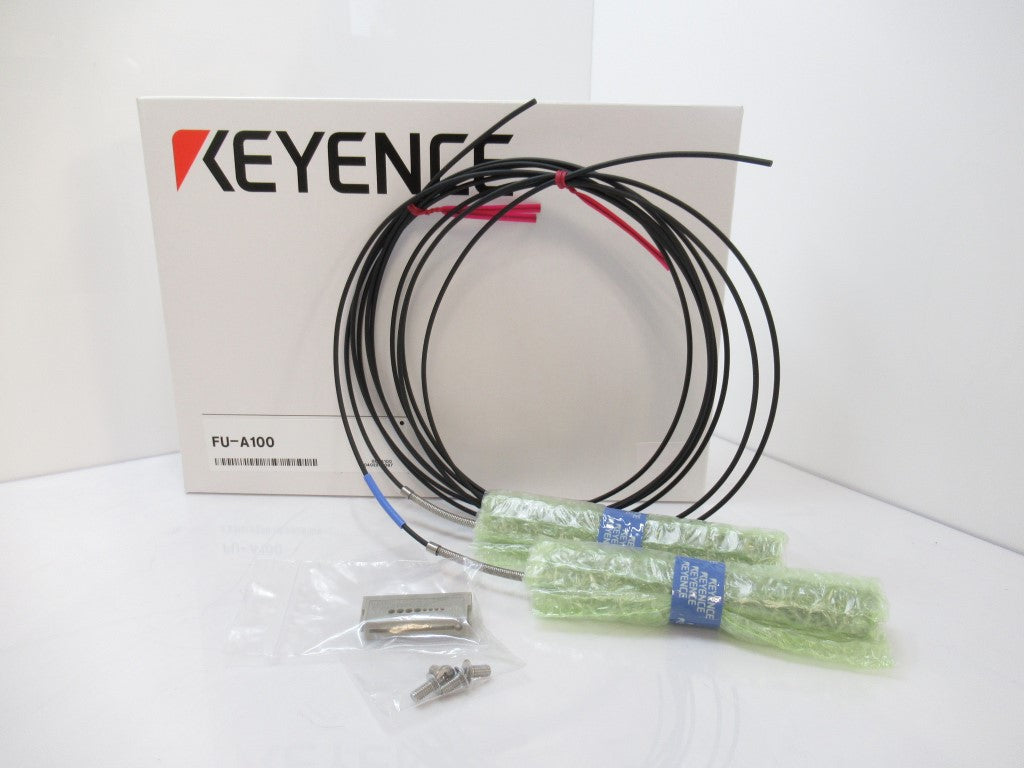

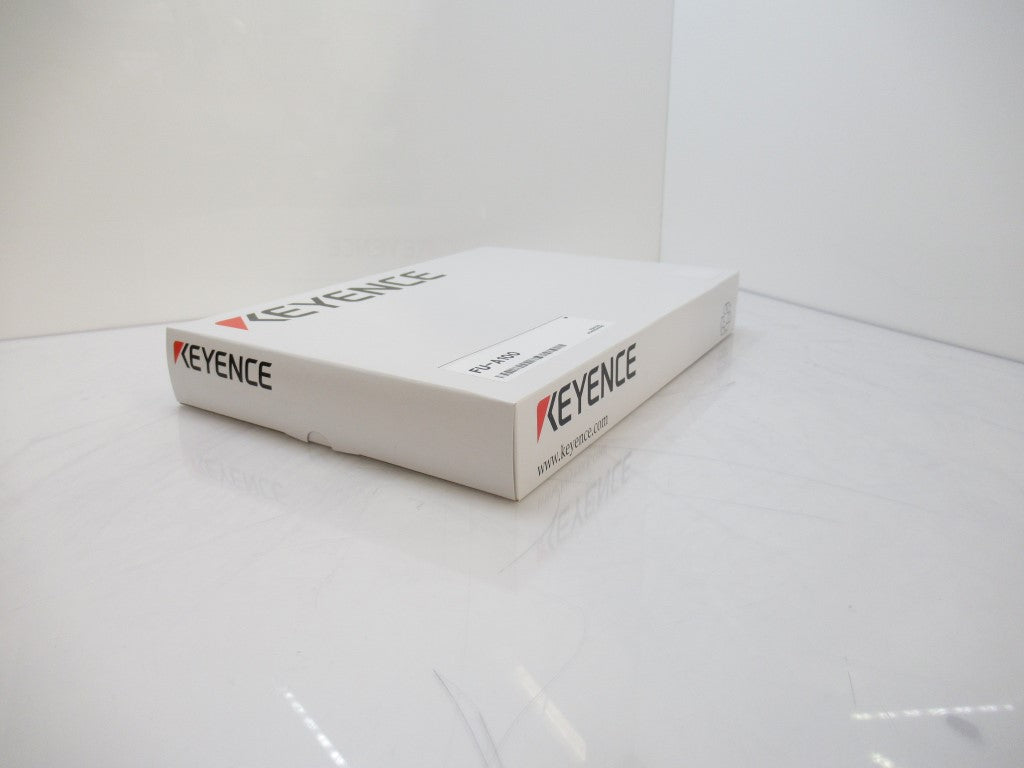

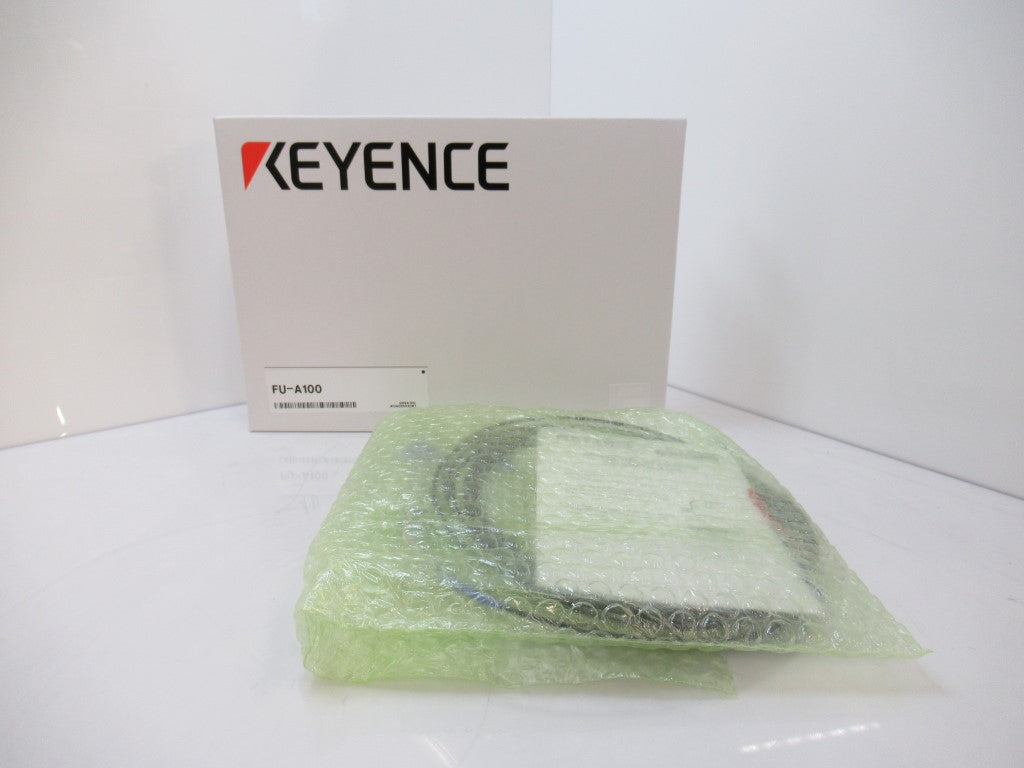

FU-A100 Keyence Fiber Unit Thrubeam Type

Product Information

• Type: Array thru beam 100 mm 3.94" type
• Optical axis area (Standard detection target): (100 × 0.25 mm) (3.937 × 0.01 in)
• Fibre unit length: 2 meter (6.6 ft) (Free-cut) 2.2 mm 0.24 in.Spiral parts cannot be cut
• Minimum bend radius: R10 mm0.394 in
• Minimum detectable object: 6 mm (0.24 in) opaque object
• Tightening torque: 0.75 N∙m
• Enclosure rating: IP67
• Ambient temperature: -20 to +50 °C -4 to 122 °F (No freezing)
• Relative humidity: 35 to 85 % RH (No condensation)
• Material: Case: Die-cast zinc, Detecting surface: PBT, Core fiber: Acrylic, Fiber sheath: Polyethylene
• Accessories: Fiber cutter, Mounting screws (M4 X L8, 4 units)
• Weight: Approx. 110 g
