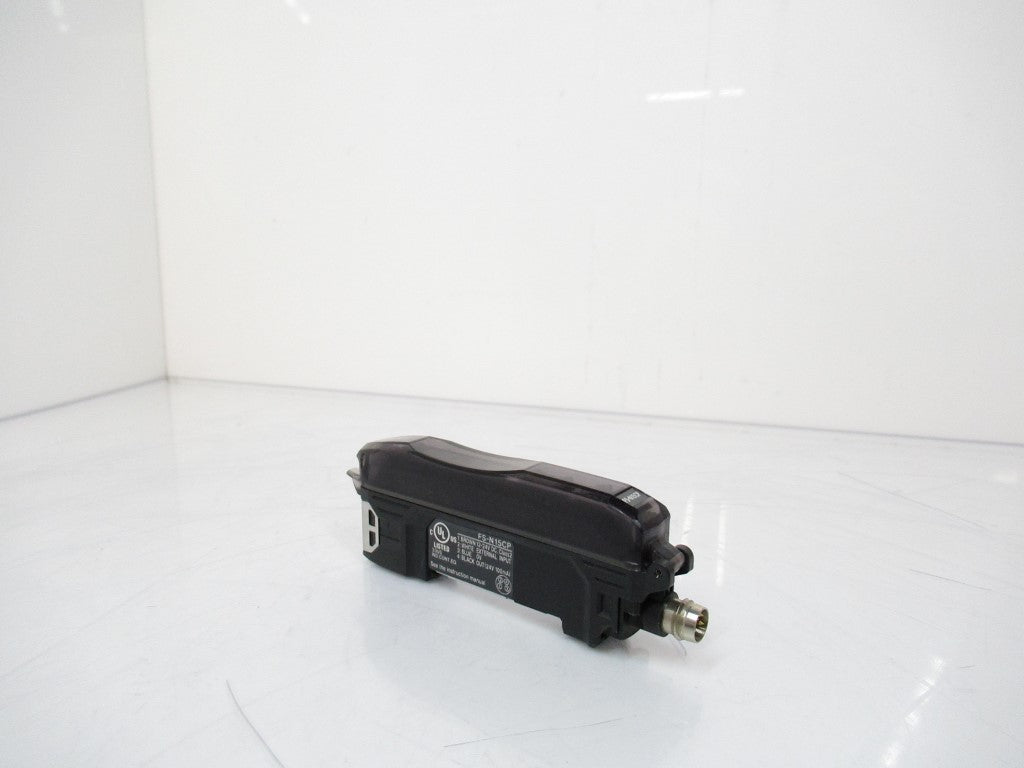

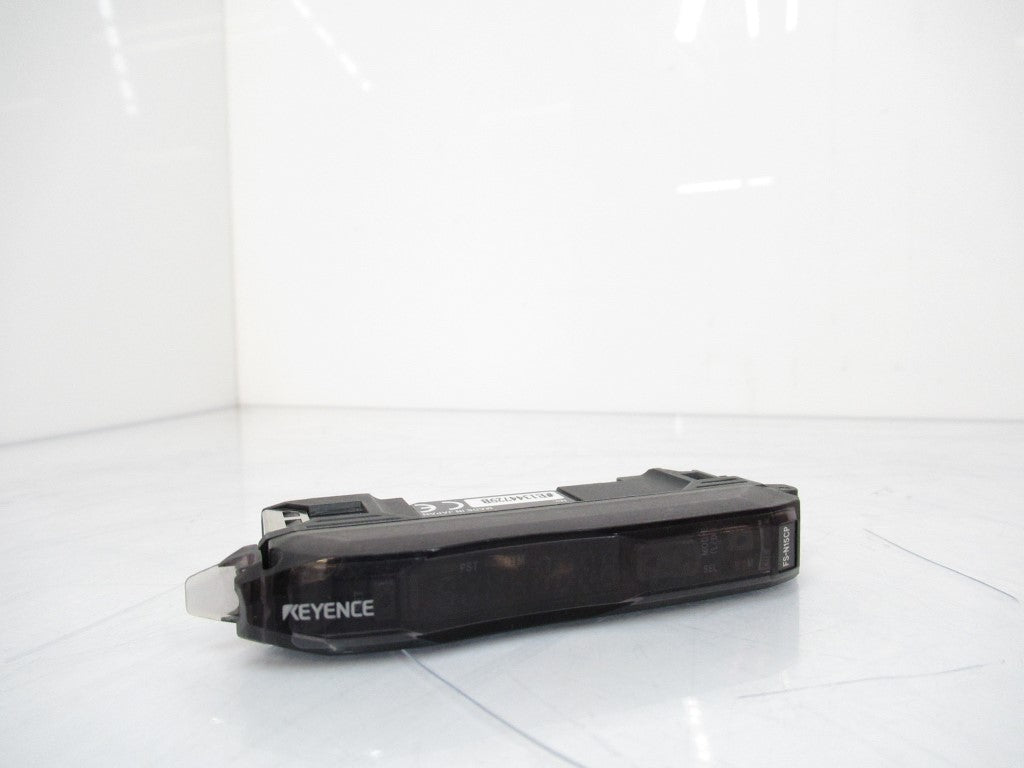

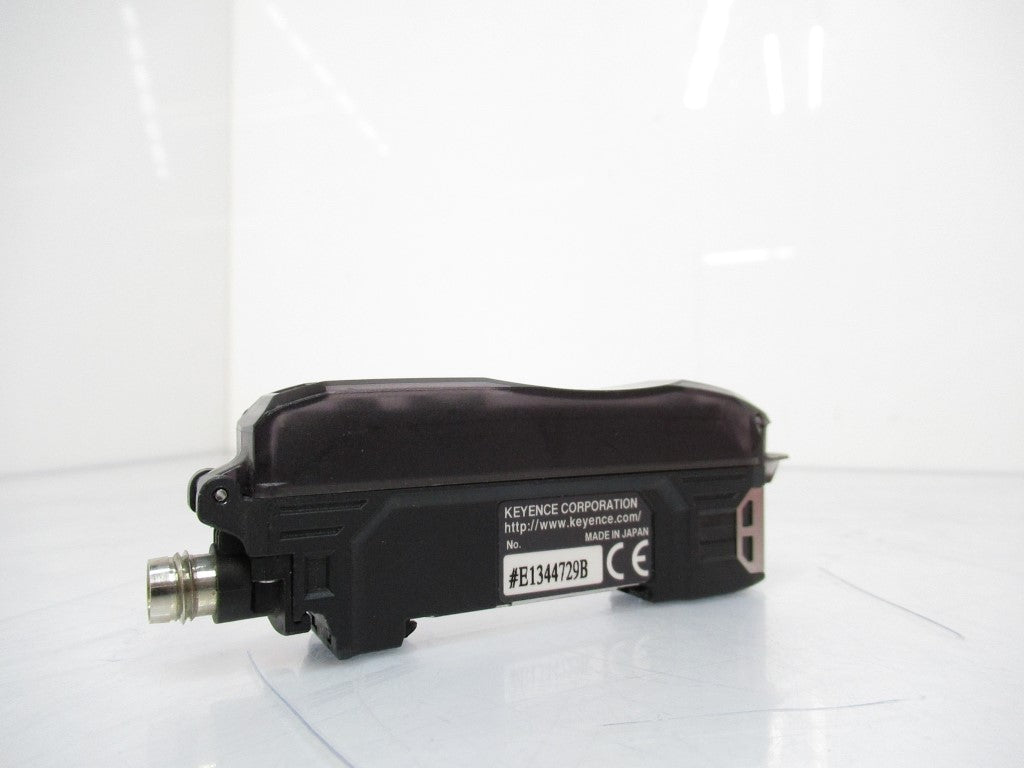

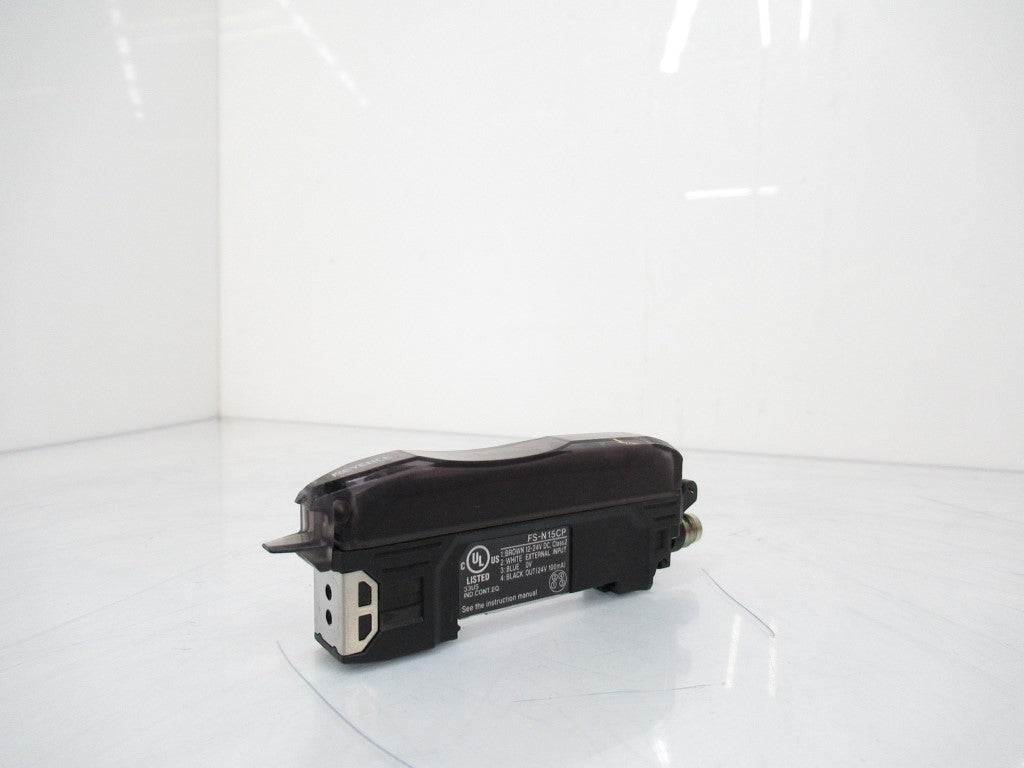

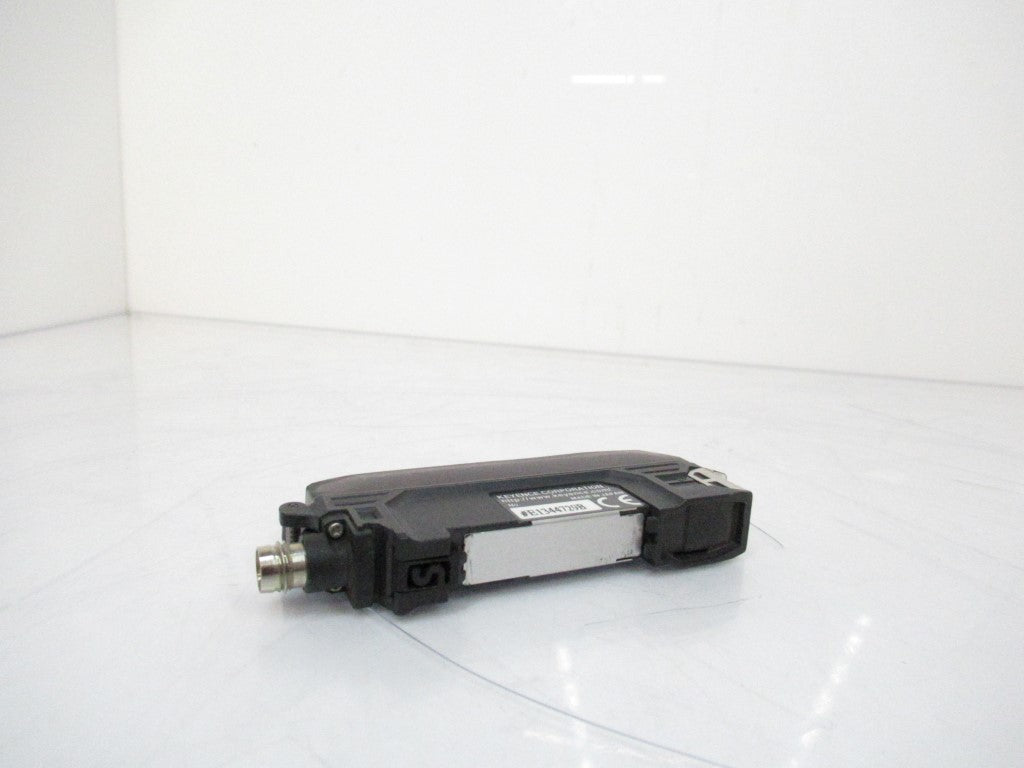

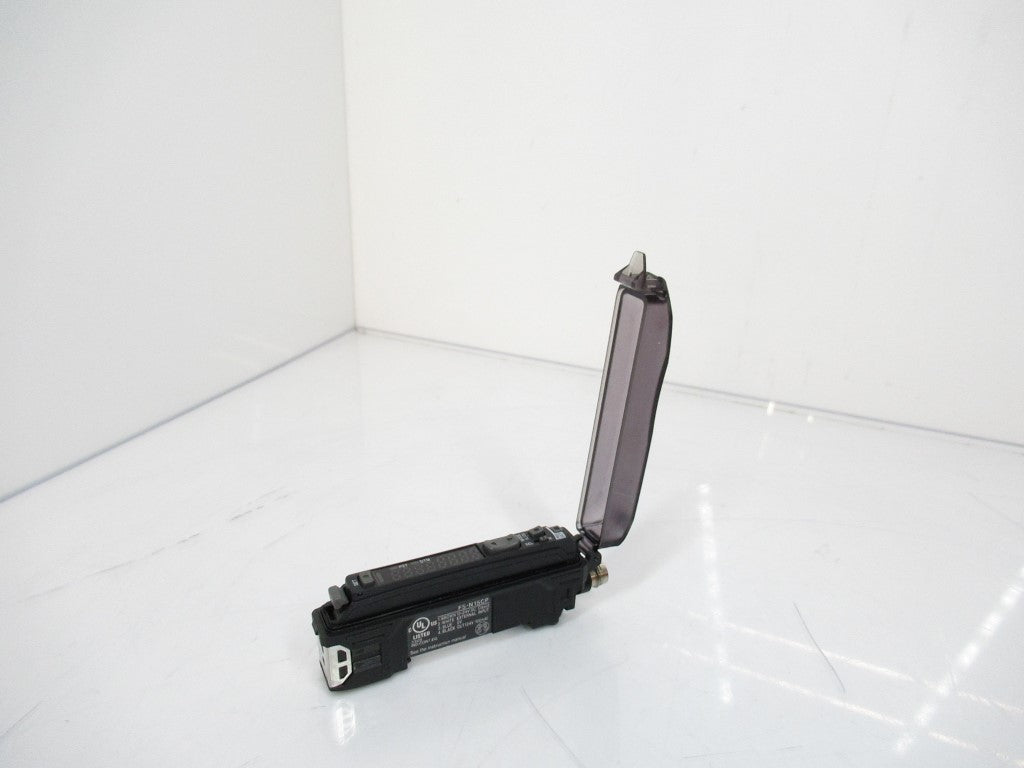

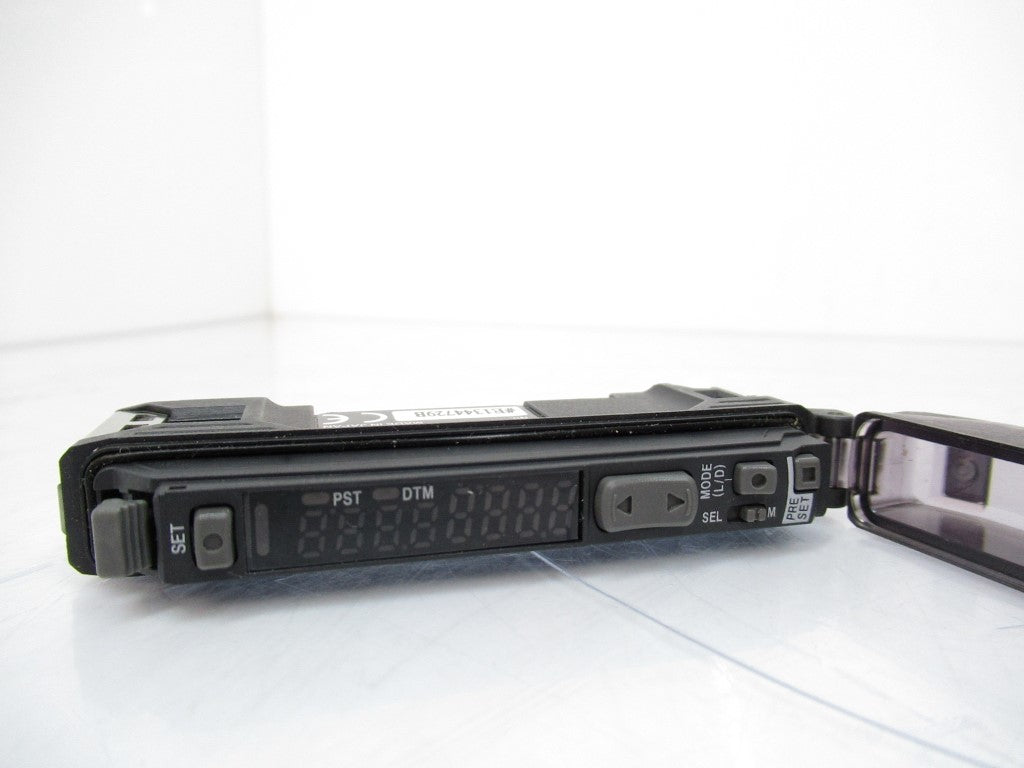

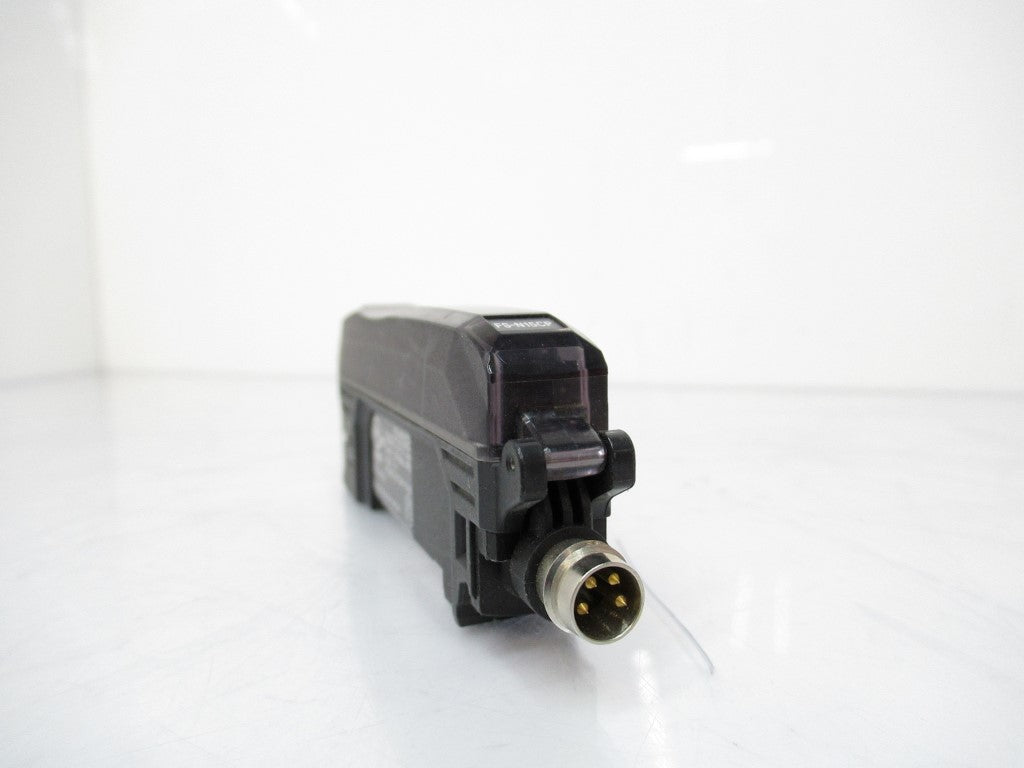

FS-N15CP FSN15CP Keyence Fiber Amplifier, M8 Connector Type, PNP, New In Box

FS-N15CP Keyence Fiber Amplifier, M8 Connector Type, PNP

by KEYENCE
Sold out
$214.43 USD
FACTORY SUPPLY BRAND NEW
SKU SEN-1027-E
UPC: DOES NOT APPLY
Only 0 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

Product Information

  • Type: IP66 Fiberoptic Amplifier, 1 output type
  • Output: PNP

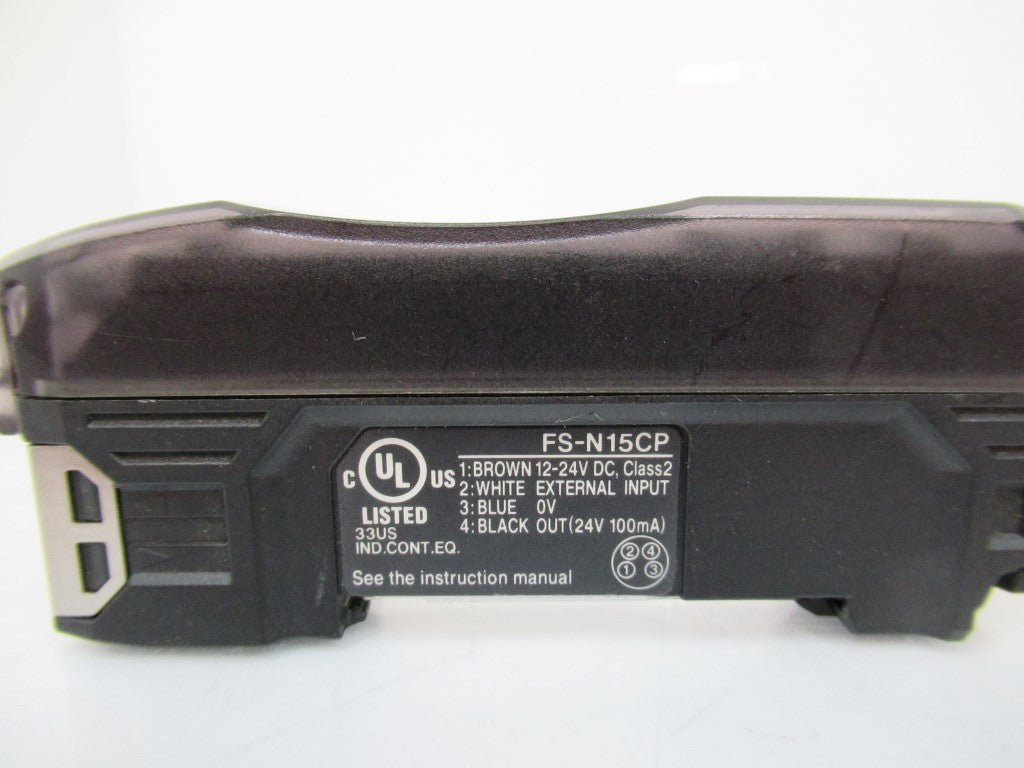

  • I/O format: M8 connector
  • Main unit/expansion unit: Main unit
  • Control output: 1 output, PNP open collector 24 V or less; maximum 100 mA or less, residual voltage 1 V or less
  • External input: 1, Input time 2 ms (ON)/20 ms (OFF) or more (25 ms or more (ON/OFF) when external calibration is selected.)
  • Output toggle: Light-ON/Dark-ON switchable
  • Light source LED: Red 4-element LED (wavelength 630 nm)
  • Timer function: Timer OFF/OFF delay/ON delay/One-shot
  • Response time: 50 µs (HIGH SPEED) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER) /4 ms (ULTRA) /16 ms (MEGA)
  • Number of interference prevention units: 0 units (expansion not possible)
  • Case size: H30.3mm 1.19" x W9.8mm 0.39" x L71.8mm 2.38"
  • Unit expansion: 0 units (expansion not possible)
  • Protection circuit: Reverse polarity protection, Over-current protection, Surge absorber
  • Power voltage: 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
  • Material Adapter: Glass-reinforced PBT
