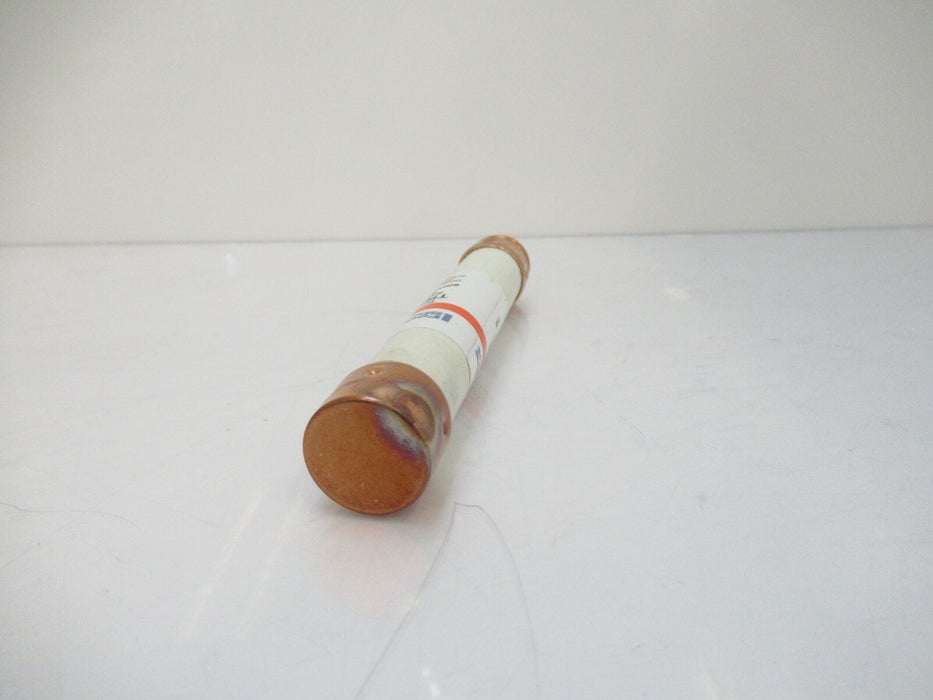

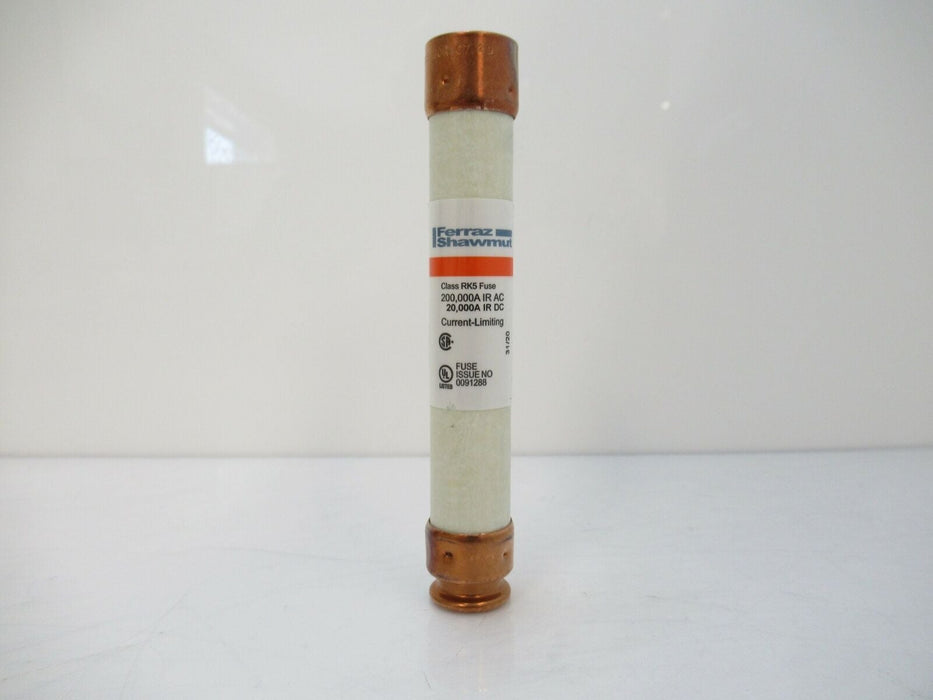

TRS30R Mersen Ferraz Shawmut Fuse UL Class RK5 30A-600V AC

SKU BRE-0183-E
Sold out
Original price $3.99 USD - Original price $3.99 USD
Original price
$3.99 USD
$3.99 USD - $3.99 USD
Current price $3.99 USD
Availability:
Out of stock

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

TRS30R

Mersen Ferraz Shawmut

Description

Fuse, Time-Delay, Class RK5, I.R. 200kA AC/20kA DC, 600VAC, 30A

(Sold By Unit New)

Product Specifications

Product Attribute Attribute Value
Application Motor Circuits Mains Feeders Branch Circuits Transformers Service Entrance Equipment General-Purpose Equipment
Body Material Polyester
Class Class RK5
Contact Material Copper
Current Rating 30 A
Height 14.44
Length 21.92
Primary Type Single Use Fuses
Series
Speed Time Lag
Standards UL Listed to Standard 248-12, File E2137 CSA Certified to Standard C22.2, No. 248.12
Termination Cartridge
Voltage Rating 600 VAC
Weight 50
Width 14.44

Overview

Tri-Onic TRS-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today’s motors and transformers.

Features:



  • OPotential Transformerional solid-state SmartSpot indicator
  • Time-delay for motor start-ups and transformer inrush currents without nuisance opening
  • Current-limiting for low peak let-thru current
  • Rejection-style design prevents replacement errors (when used with recommended fuse block)
