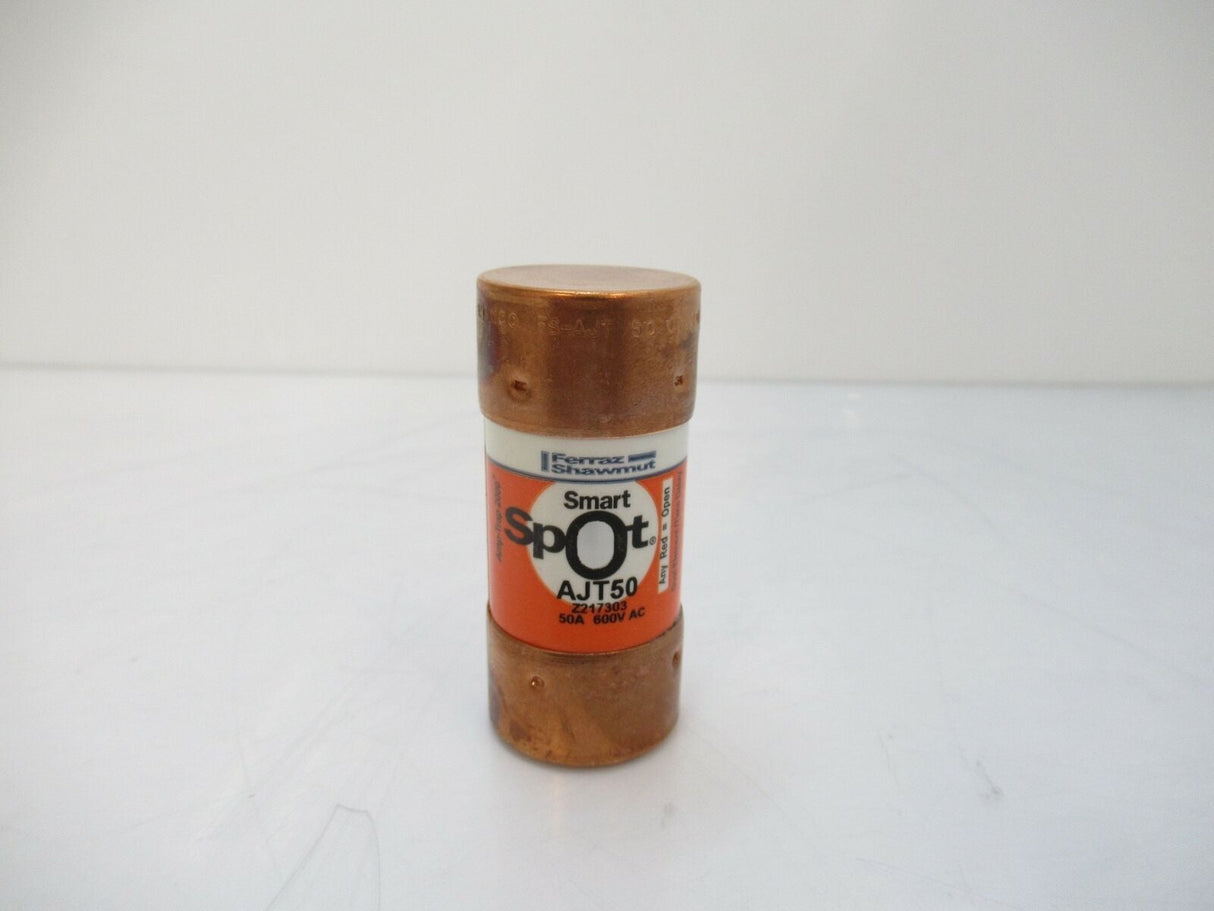

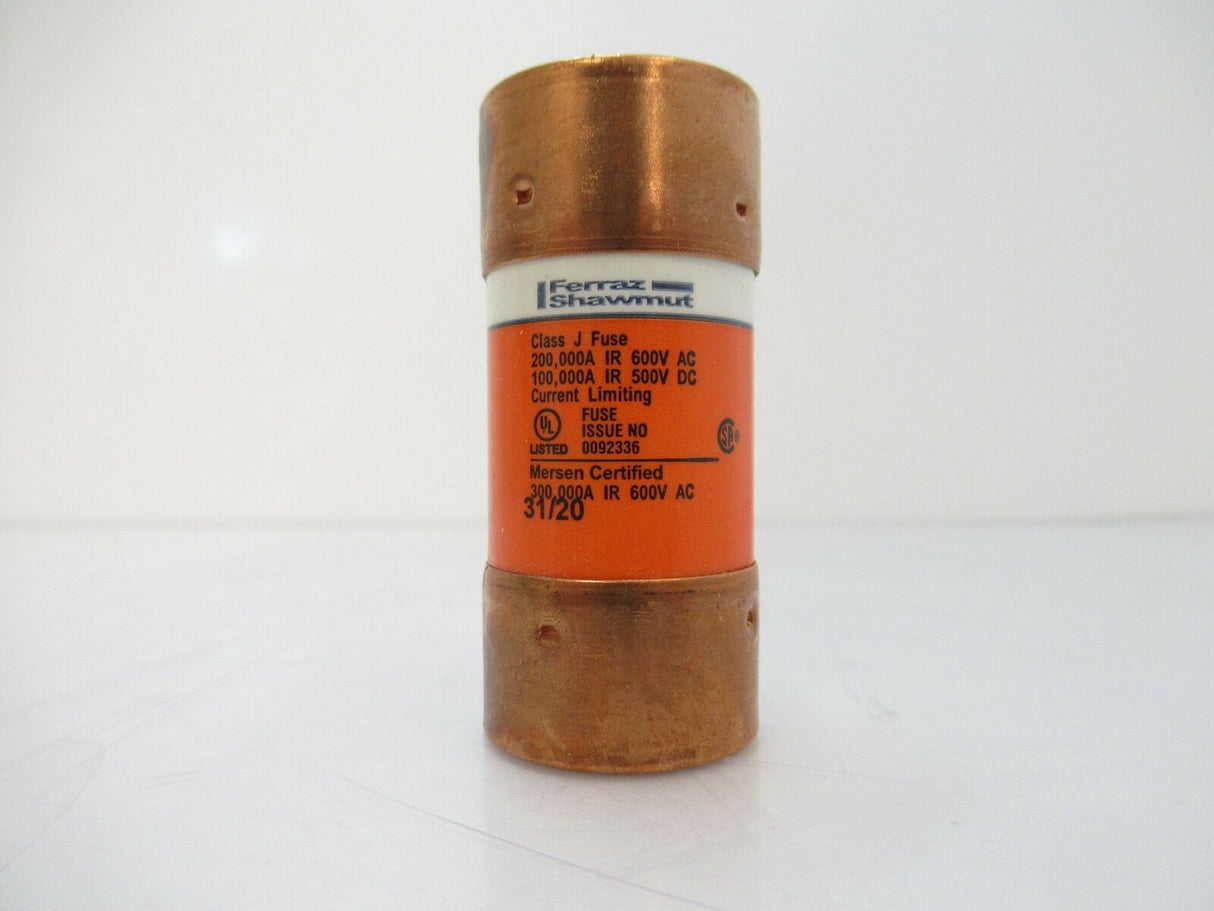

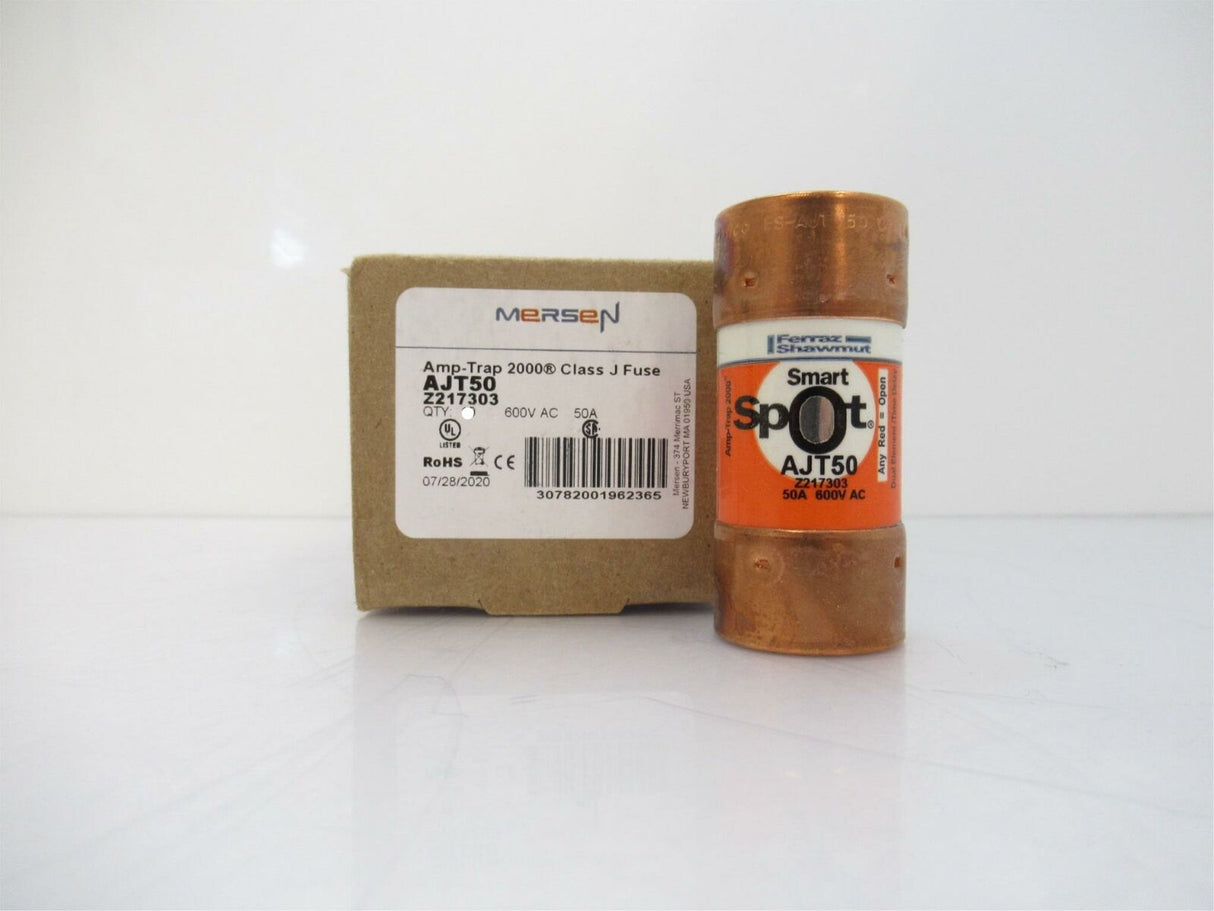

AJT50 Ferraz Shawmut Fuse Time-Delay Class J 50A / 600V AC

SKU BRE-1281-E
Sold out
Original price $6.60 USD - Original price $6.60 USD
Original price
$6.60 USD
$6.60 USD - $6.60 USD
Current price $6.60 USD
Availability:
Out of stock

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Condition :

AJT50

Mersen Ferraz Shawmut

Fuse, Time-Delay, Class J, Visual Indicator, 200kA AC/100kA DC, 600V AC, 50 Amp

(Sold By Unit, New)

Description

  • 0 Amps, 600 Volts AC
  • UL Class J Fuse
  • Time Delay for Motor Starting and Transformer Inrush
  • Solid State SmartSpot Visual Blown Fuse Indicator
  • Extremely Current Limiting
  • Most Current Limiting UL Class Fuse
  • Recommended for Arc Flash Energy Reduction
  • Physical Size: 1 1/16" x 2 3/8"
  • Metal Embossed Date and Catalog Number for Lasting Identification
  • AC Voltage Rating: 600
  • DC Voltage Rating: 500
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • UL Listed to Standard 248-8 File E2137
  • DC Listed to UL Standard 248
  • CSA Certified to Standard C22.2 No. 248.8
  • IEC 269-2-1

Related Products

  • Ultrasafe Fuse Holders
  • 1 Pole: US6J1; 1 Pole with Indicator: US6J1I
  • 2 Pole: US6J2; 2 Pole with Indicator: US6J2I
  • 3 Pole: US6J3; 3 Pole with Indicator: US6J3I
  • Fuse Blocks
  • Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
  • 2 Pole: 60602J 3 Pole: 60603J
  • Spring Reinforced, Box Lugs (Al/Cu #2-14)
  • Adder: 60305J 1 Pole: 60606J 2 Pole: 60607J 3 Pole: 60608J
  • Spring Reinforced, Box (Cu #4-14)
  • 3 Pole: 60658J
  • Fuse Reducers
  • 200 Amp to 60 Amp: J266
  • 100 Amp to 60 Amp: J166
