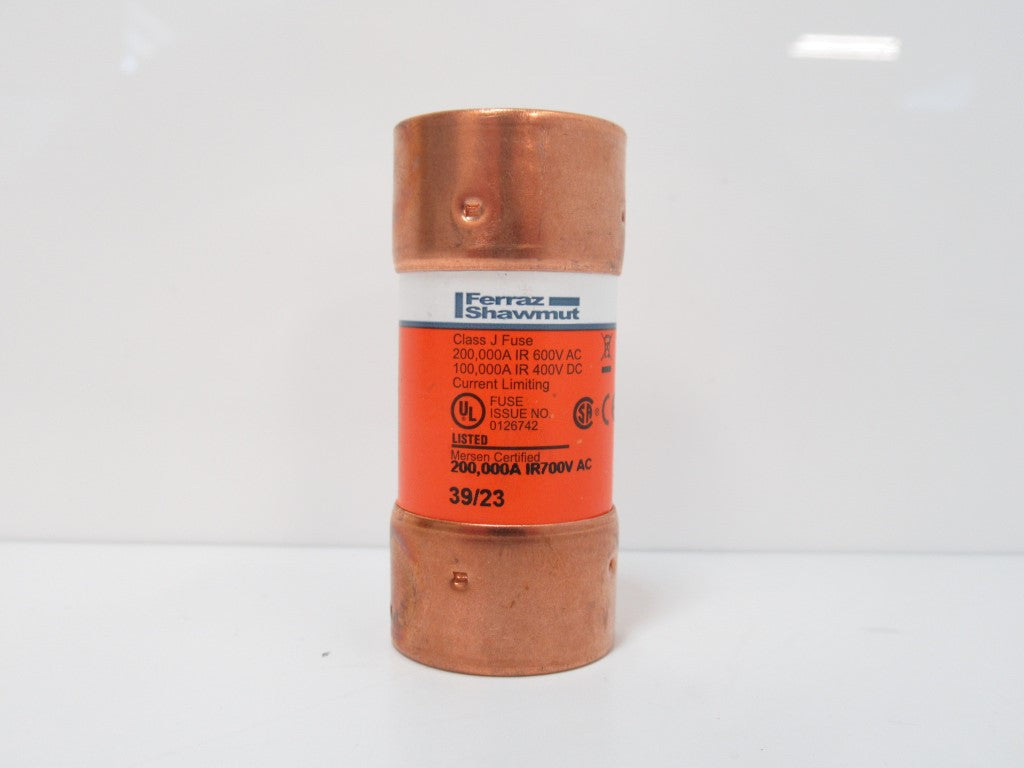

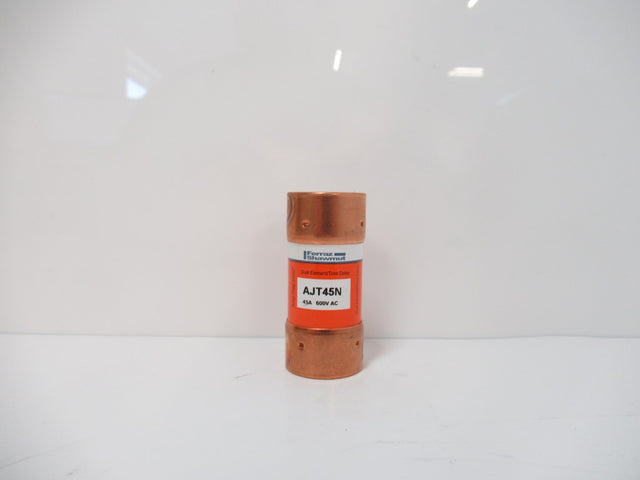

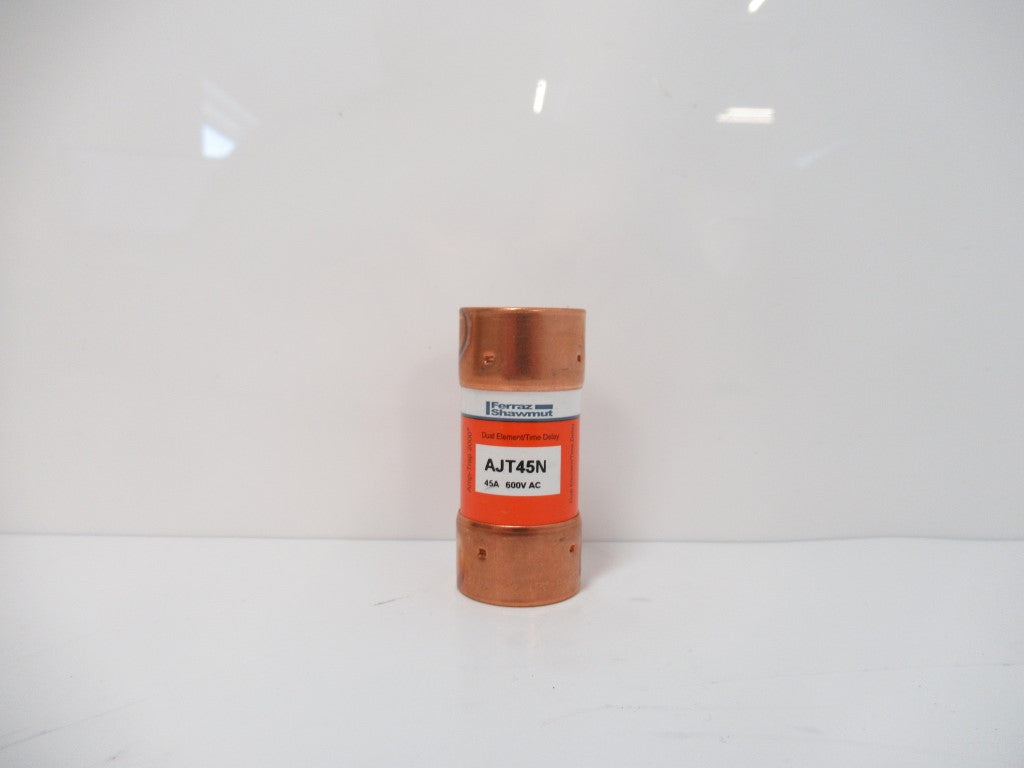

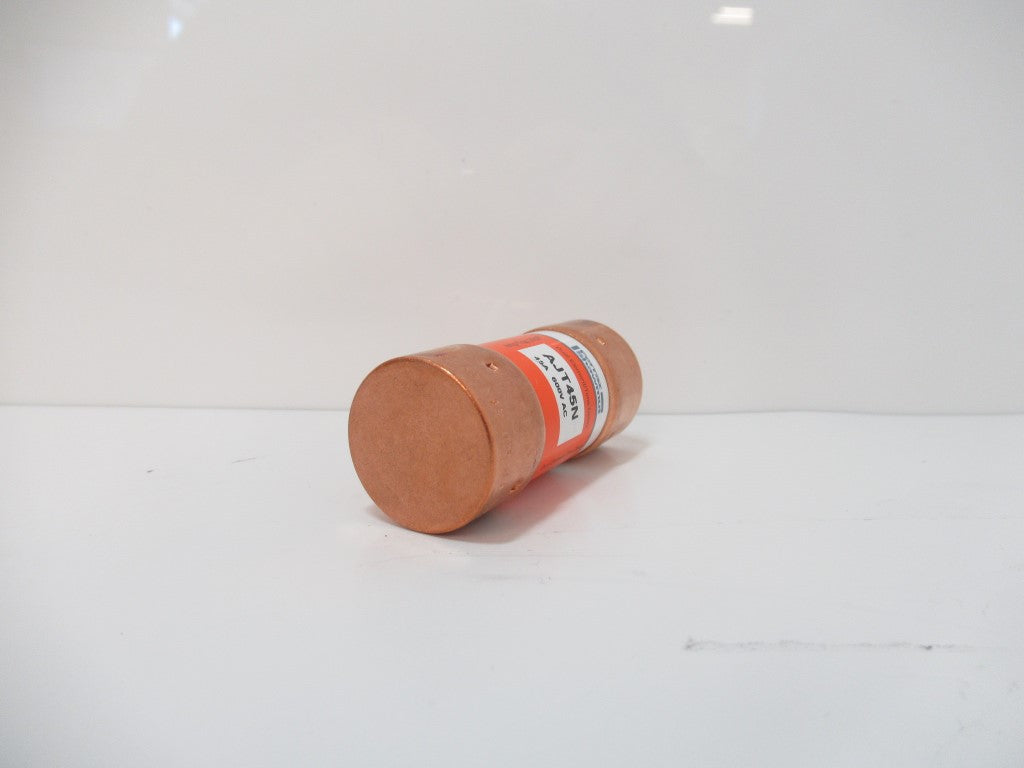

AJT45 Mersen Ferraz Shawmut Fuse Time-Delay 45A Class J 600V AC Pack Of 10

AJT45 Mersen Ferraz Shawmut Fuse Time-Delay Class J 45A 600V AC

by FERRAZ SHAWMUT
Sold out
$75.34 USD
FACTORY SUPPLY BRAND NEW
SKU BRE-1280-E
UPC: 30782001962341
Only 0 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

AJT45

Mersen Ferraz Shawmut

Description

Fuse, Time-Delay, Class J, Visual Indicator, 200kA AC/100kA DC, 600VAC, 45A

Pack Of 10

Product Specifications

Application Motor Circuits Mains Feeders Branch Circuits Lighting Heaters Transformers Control Panels Circuit Breaker Back-up Bus Duct Load Centers
Body Material Glass
Class Class J
Contact Material Tin-plated Copper
Current Rating 45 A
Height 2.17
Length 4.13
Primary Type Single Use Fuses
Series Amp-Trap 2000 SmartSpot Series
Speed Time Lag
Standards UL Listed to Standard 248-8, File E2137 DC Listed to UL Standard 248 CSA Certified to Standard C22.2, No. 248.8 IEC 269-2-1
Termination Cartridge
Type Cylindrical Fuses
Voltage Rating 600 V
Weight 0.3
Width 2.17

Overview

Mersen Amp-Trap 2000 SmartSpot Series – For Type 2:

Amp-Trap 2000® SmartSpot AJT fuses now provide a visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.

Features:
  • Solid state SmartSpot visual blown fuse indicator
  • Time-delay for motor starting and transformer inrush
  • 300kA interrupting rating - self-certified, UL witnessed tests
  • Extremely current-limiting for low peak let-thru current
  • Most current-limiting UL class fuse
  • Recommended for Arc Flash energy reduction
  • Small footprint requires less mounting space and allows smaller, more economical fuse blocks
  • Easy 2-to-1 selectivity for prevention of nuisance shutdowns
  • Unique Class J dimensions prevent replacement errors
  • High-visibility orange label gives instant brand recognition
  • Metal-embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • High-grade silica filler ensures fast arc quenching
  • Optional EI indicator/switch mount for AJT70 to 600 open fuse indication
