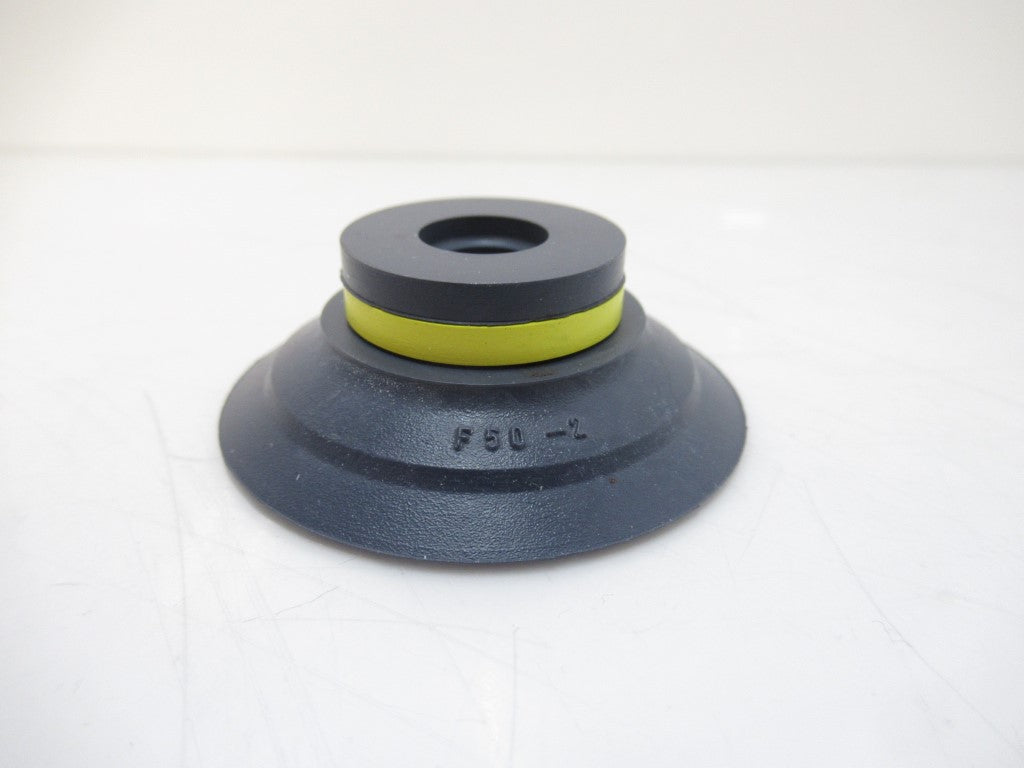

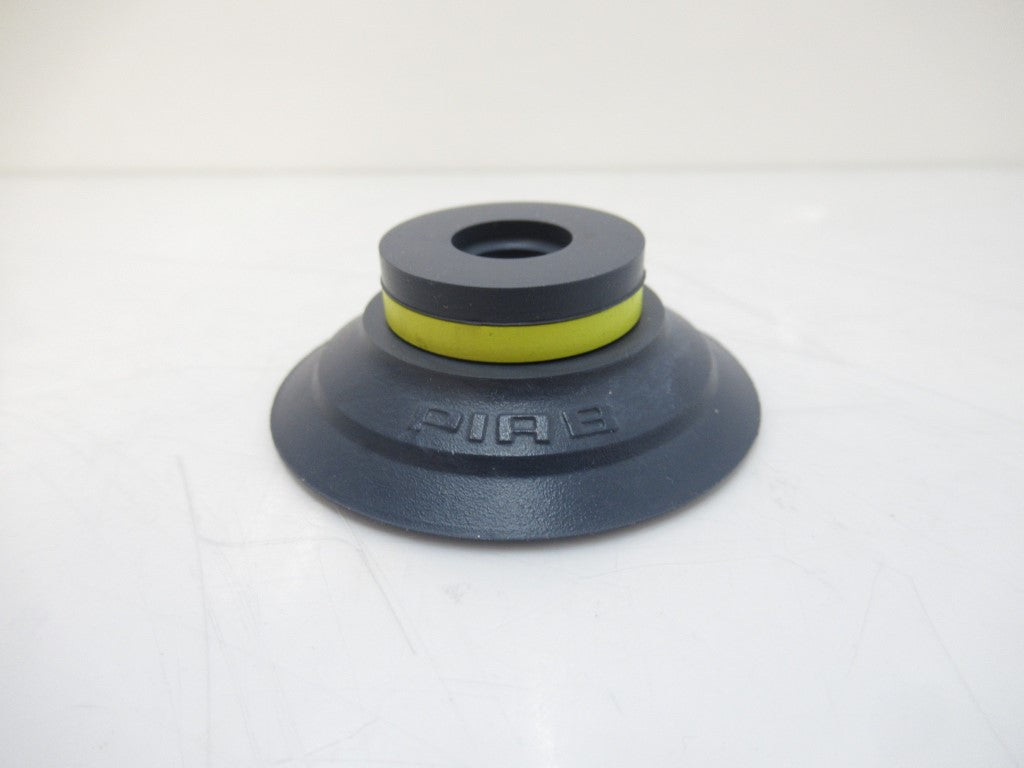

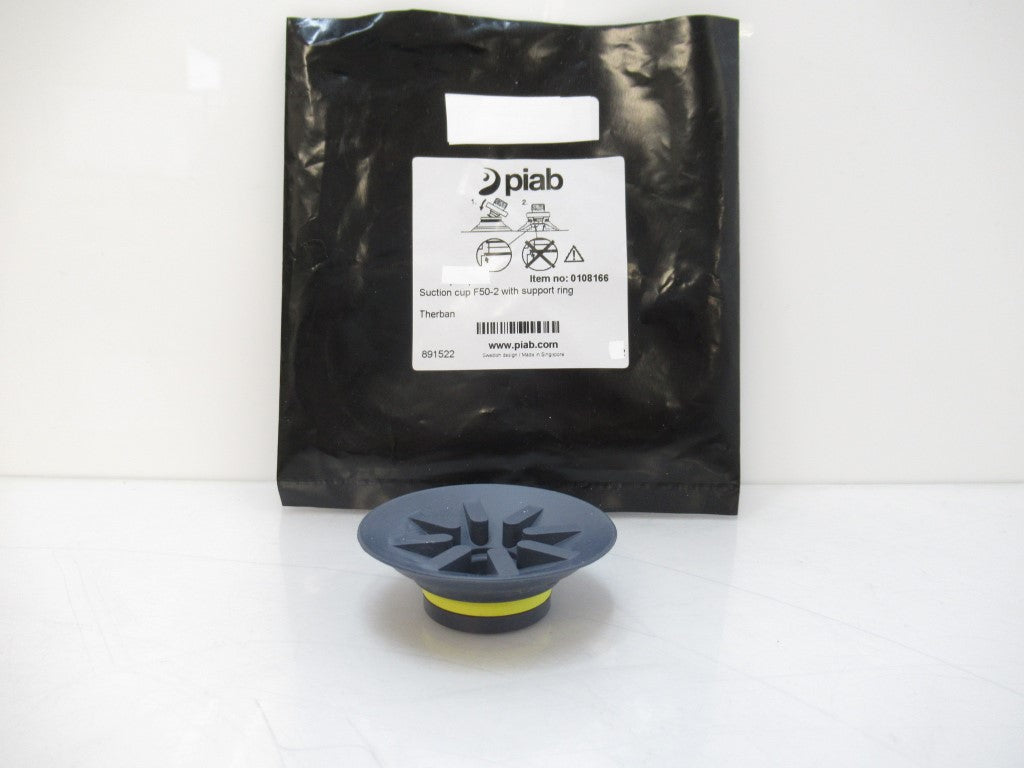

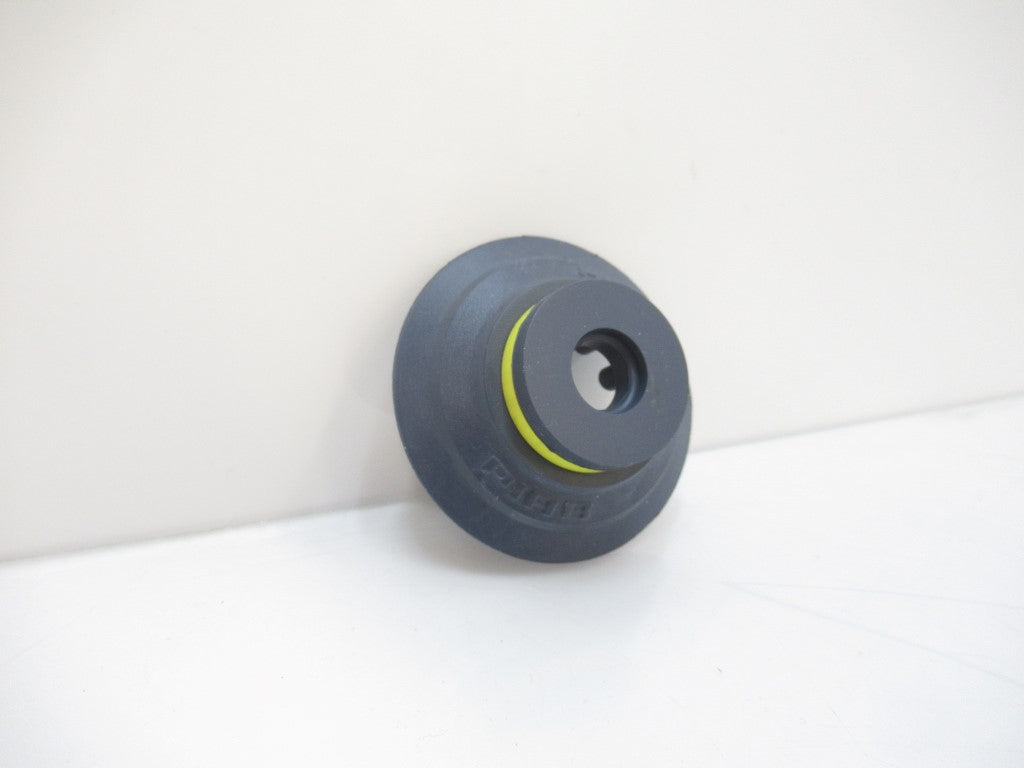

F50-2.37 0108166 Piab Suction Cup F50-2 With Support Ring

SKU VAC-0325-E
Sold out
Original price $29.71 USD - Original price $29.71 USD
Original price
$29.71 USD
$29.71 USD - $29.71 USD
Current price $29.71 USD
Availability:
Out of stock

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote
by Piab

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

F50-2.37 F50237 0108166

Piab

Suction Cup F50-2 With Support Ring

New And Sold By Unit

Features

  • Suitable for flat objects.
  • Good stability and little inherent movement.
  • Recommended when the lifting force is parallel to the surface of the object.

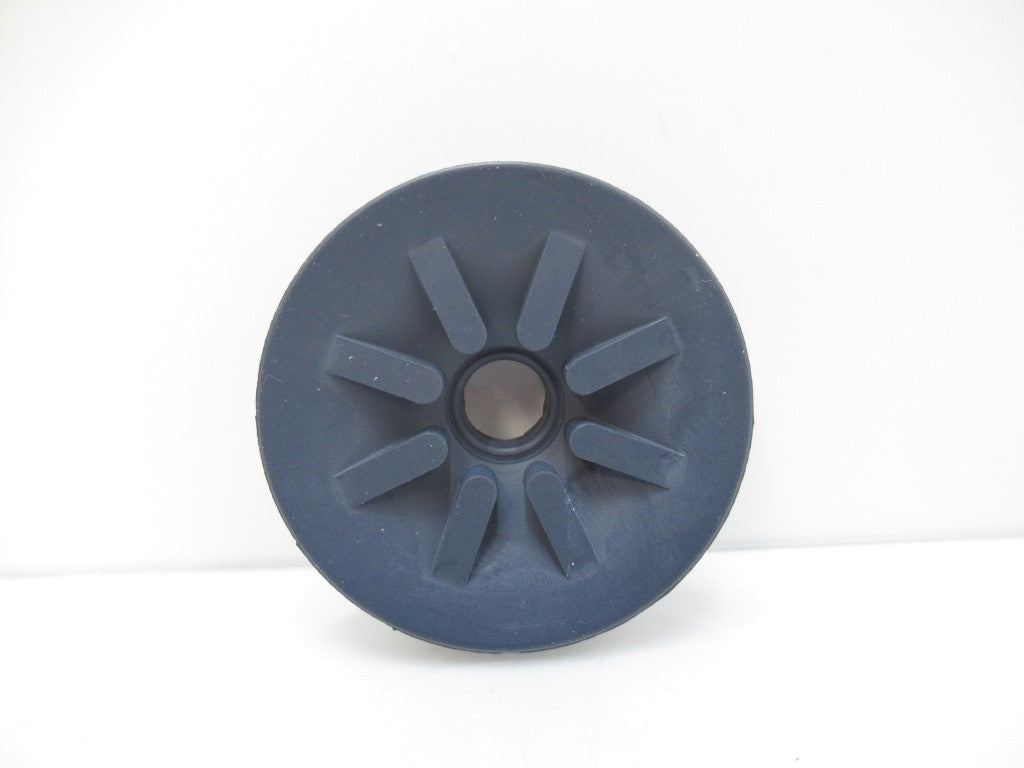

  • Cleats prevent thin, sensitive objects from being deformed and give extra friction when the lifting force is parallel.

Specification

  • Application: HighLowTempCup, MarkFree, PlasticInjectionMoldedParts, DrySheetMetal, GlassHandling
  • Suction cup shape: Flat
  • Material: HNBR
  • Suction cup model: F
  • Weight: 0.49 oz
  • Volume: 0.61 in³
  • Name: F50-2
  • Movement, vertical max.: 0.087 in
  • Curve radius, min.: 2.17 in

Dimension

  • Height: 0.69 in
  • Outer diameter, actuated: 2.15 in
  • Outer diameter: 2.087 in
