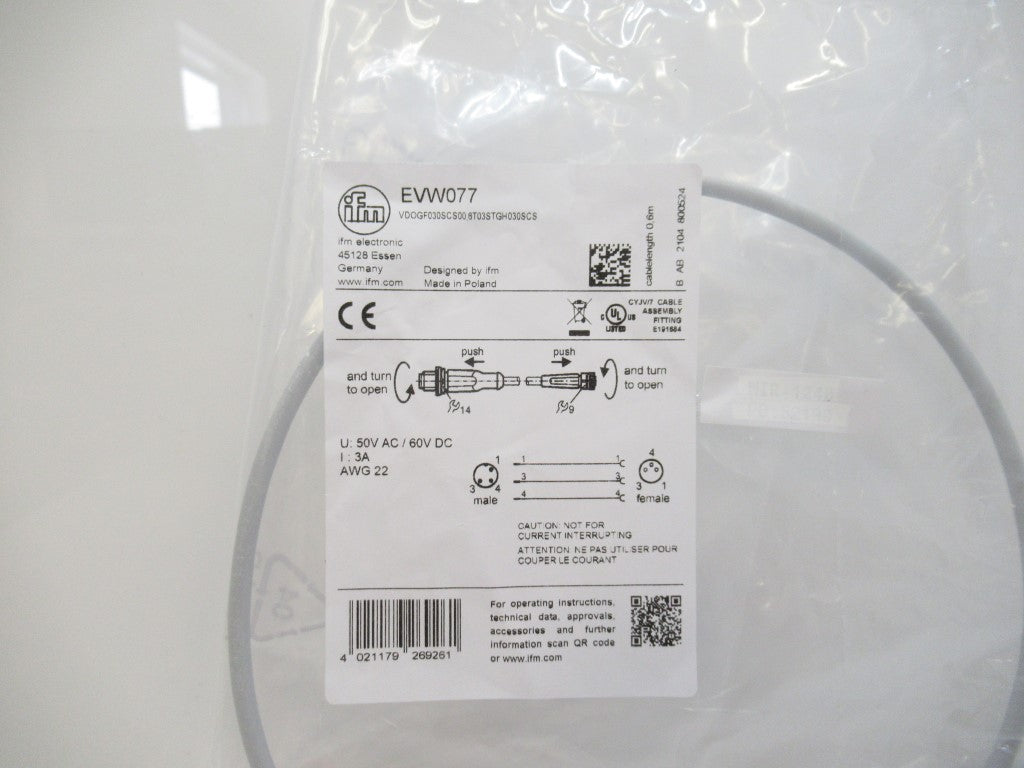

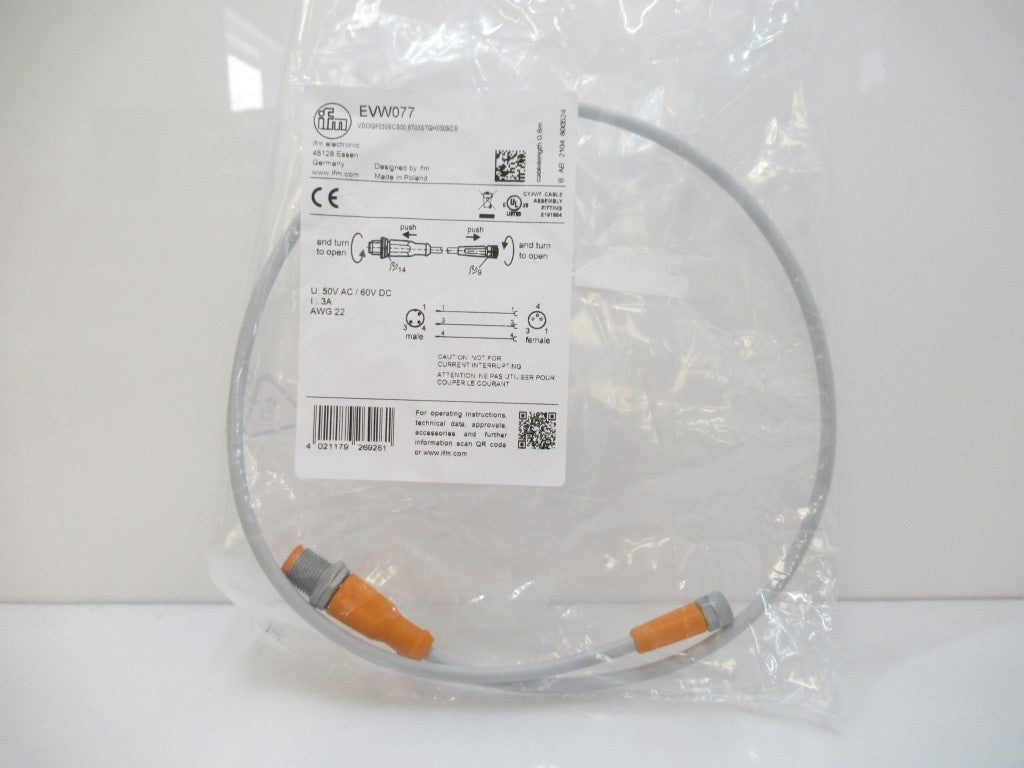

EVW077 Ifm Connection Cable 0.6 m PUR-Cable; M12 / M8 Connector

$29.14 USD
FACTORY SUPPLY BRAND NEW
SKU WIR-1240-E
UPC: EVW077
Only 2 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

EVW077  VDOGF030SCS00,6T03STGH030SCS VDOGF030SCS006T03STGH030SCS

 Ifm Electronic

Connection Cable 0.6 m PUR-Cable; M12 / M8 Connector

(New In Bag)

  • Weld-Slag Resistant Pur Cable With Drag Chain Suitability
  • Nut With Special Weld-Slag Resistant Coating
  • High Protection Rating For The Requirements Of Harsh Industrial Environments
  • Vibration And Shock Resistant Thanks To Coupling Ring With Locking Mechanism
  • Mechanical End Stop To Protect The O-Ring From Destruction

Description

  • Connection Technology
  • Product Characteristics
  • Patchcords

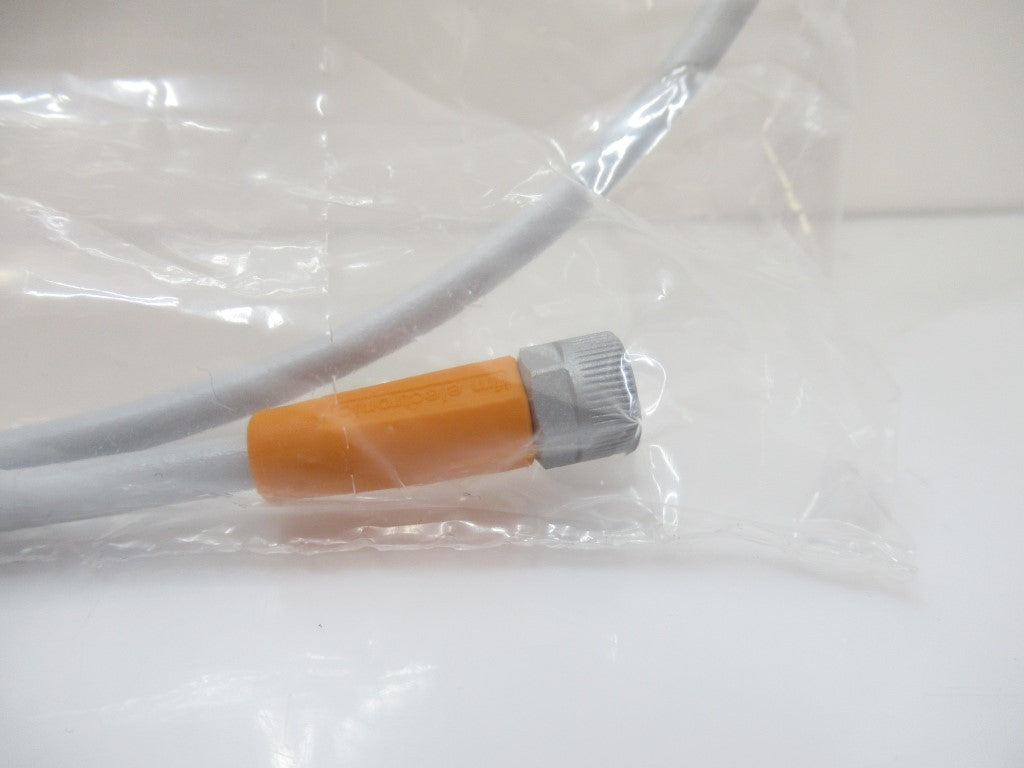

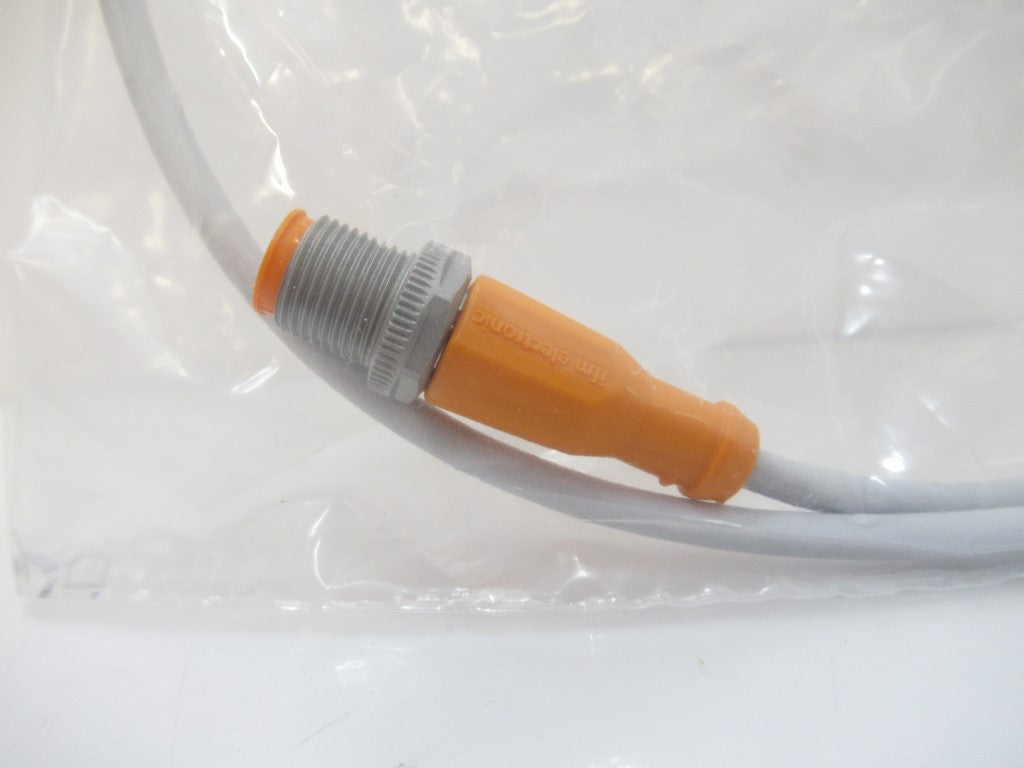

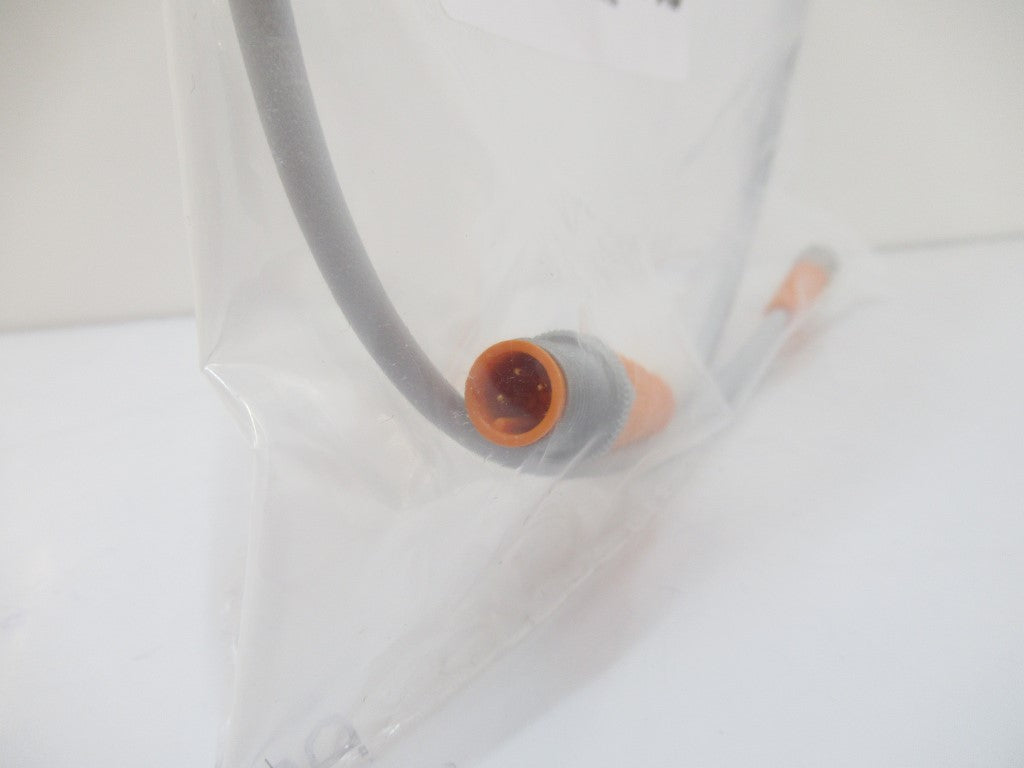

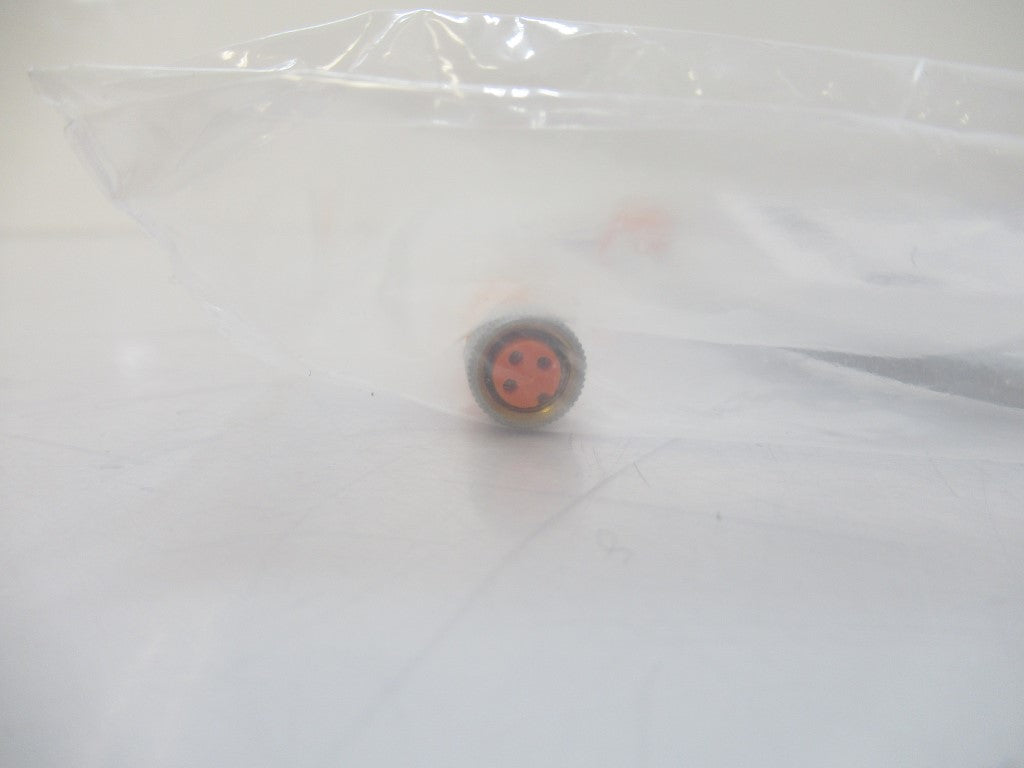

  • M12 Plug / M8 Socket
  • Free From Silicone
  • Free From Halogen
  • Gold-Plated Contacts
  • For Welding Applications
  • Electrical Design: AC/DC
  • Operating Voltage [V]: 50 AC / 60 DC
  • Current Rating [A]: 3
  • Protection Class: III
  • Environment
  • Ambient Temperature [°c]: -25...90, Calculus: Max. 75 °C
  • Ambient Temperature (Moving) [°C]: -25...90, Calculus: Max. 75 °C
  • Protection: IP 65 / IP 67 / IP 68 / IP 69k
  • Mechanical Data
  • Design: Straight / Straight
  • Material Body: Housing: TPU (Urethane) Orange; Sealing: Viton
  • Material Nut: Brass; Safe-Coated
  • Tightening Torque For Knurled Nut [nm]: Plug: 0.6...1.5 *) / Socket: 0.3...0.5
  • Drag Chain Suitability
  • Bending Radius For Flexible Applications: Min. 10 X Cable Diameter
  • Travel Speed: Max. 3.3 m/s For A Horizontal Travel Length Of 5 M And Max. Acceleration Of 5 m/s²
  • Bending Cycles: > 2 Million
  • Torsional Strain: ± 180 °/m
  • Weight [kg]: 0.042
  • Electrical Connection
  • Connection: Pur Cable / 0.6 M;3 X 0.25 mm² (32 X Ø 0.1 mm); Ø 4.5 mm; Not Irradiated (Can Be Recycled), Halogen-Free, Resistant To Welding Sparks
  • Sheath Color: Grey
