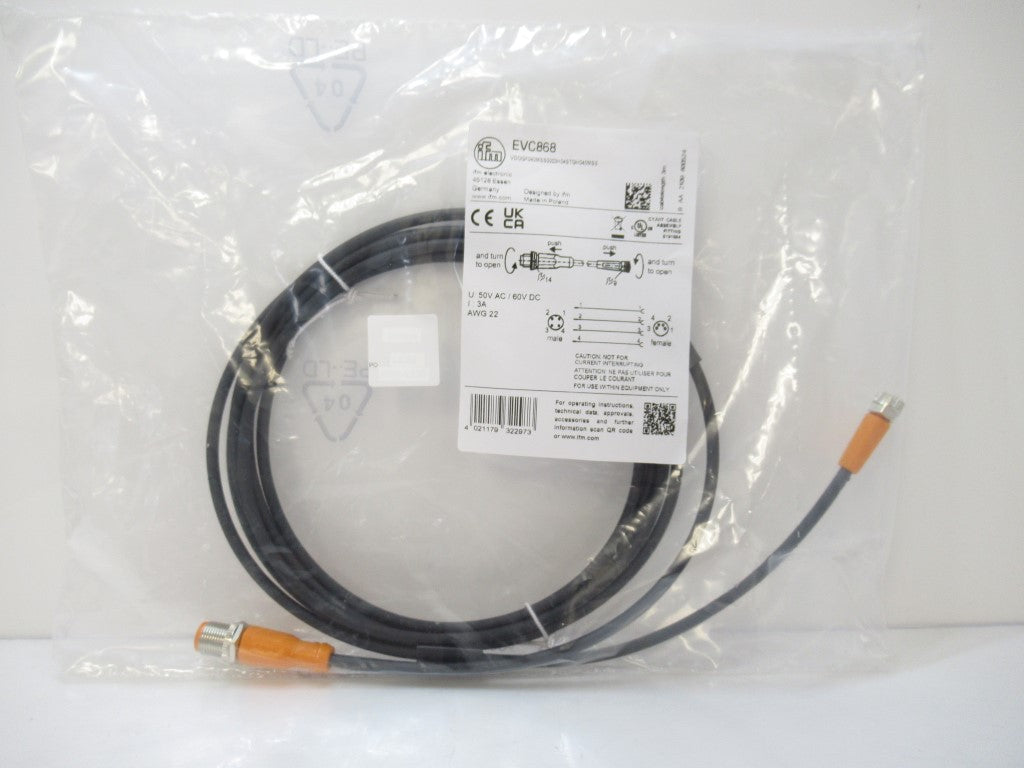

Ifm Electronic EVC868 Connection Cable For Sensors, 4-Pin AWG 22

SKU WIR-1330-E
Sold out
Original price $28.99 USD - Original price $28.99 USD
Original price
$28.99 USD
$28.99 USD - $28.99 USD
Current price $28.99 USD
Availability:
Out of stock

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Product Information

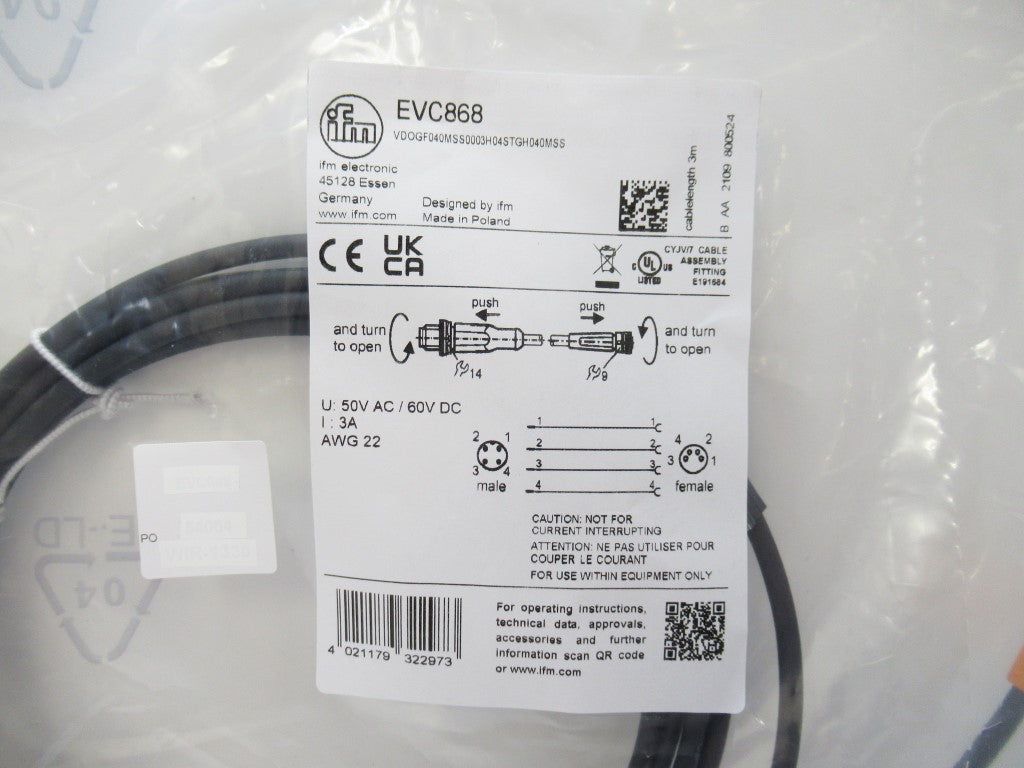

VDOGF040MSS0003H04STGH040MSS

  • Special Feature: Free From Silicone; Halogen-Free; Gold-Plated Contacts; Drag Chain Suitability
  • Operating voltage [V]: < 50 AC / < 60 DC
  • AWG 22
  • Protection class: III
  • Max. Current Load Total [A]: 3
  • Connection Cable: 3 m, PUR, Halogen-Free, Black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

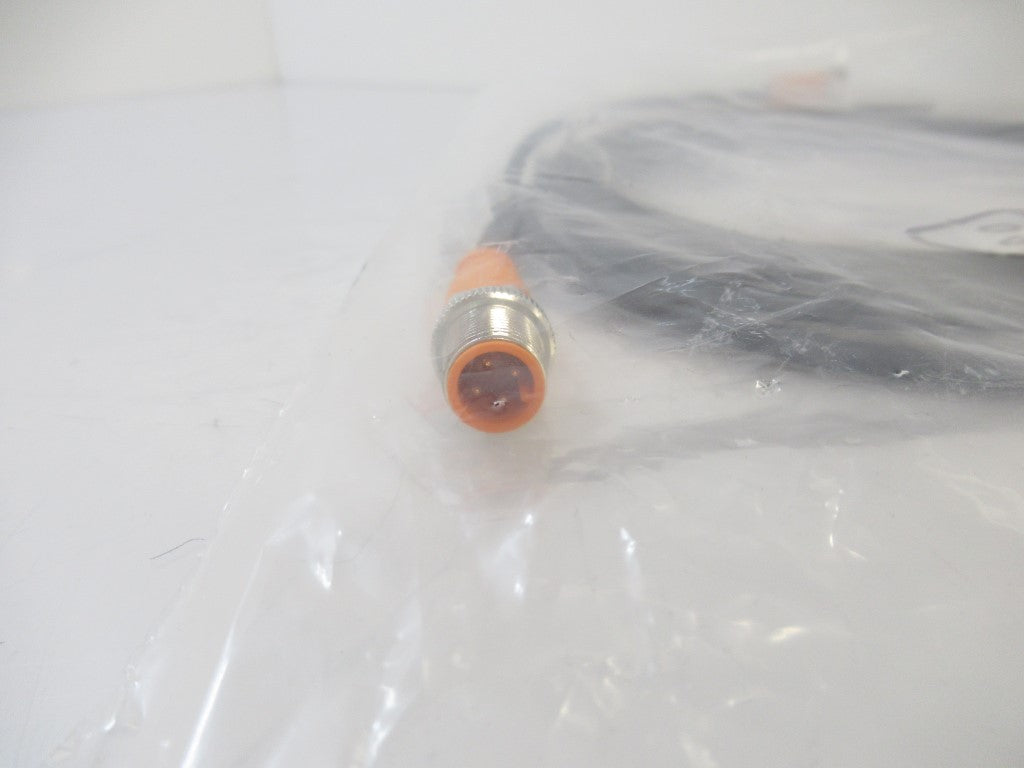

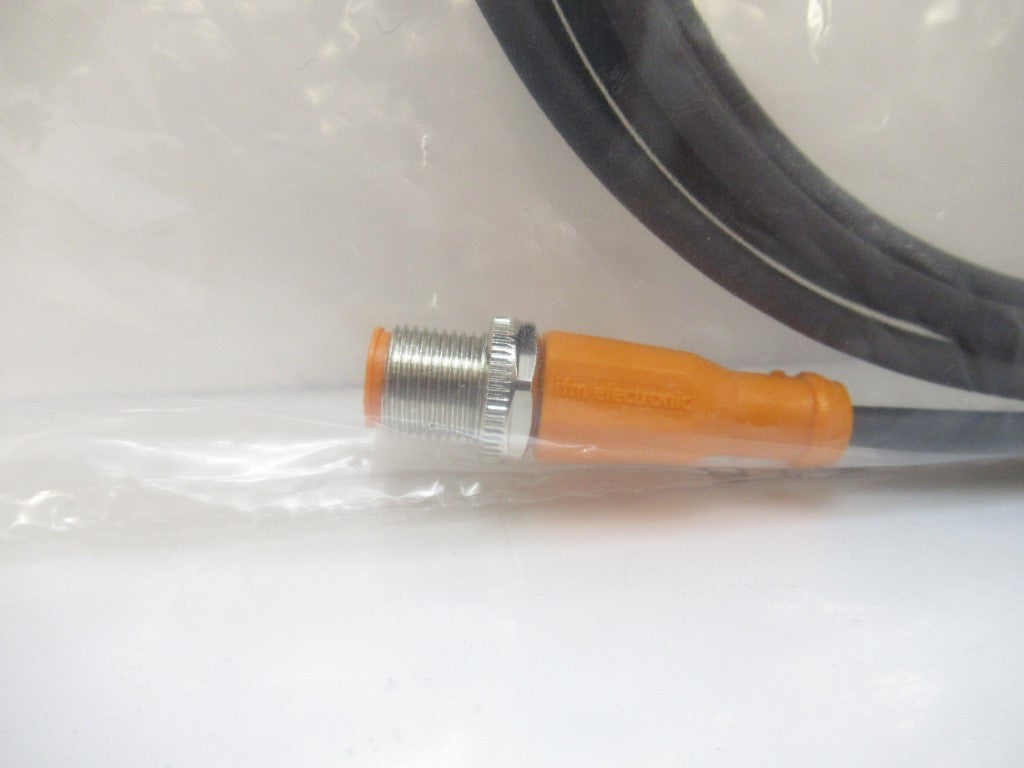

  • Connection - Plug: Connector 1 x M12, Straight; Locking: Brass, Nickel-Plated; Contacts: Gold-Plated; Tightening Torque: 0.6...1.5 Nm

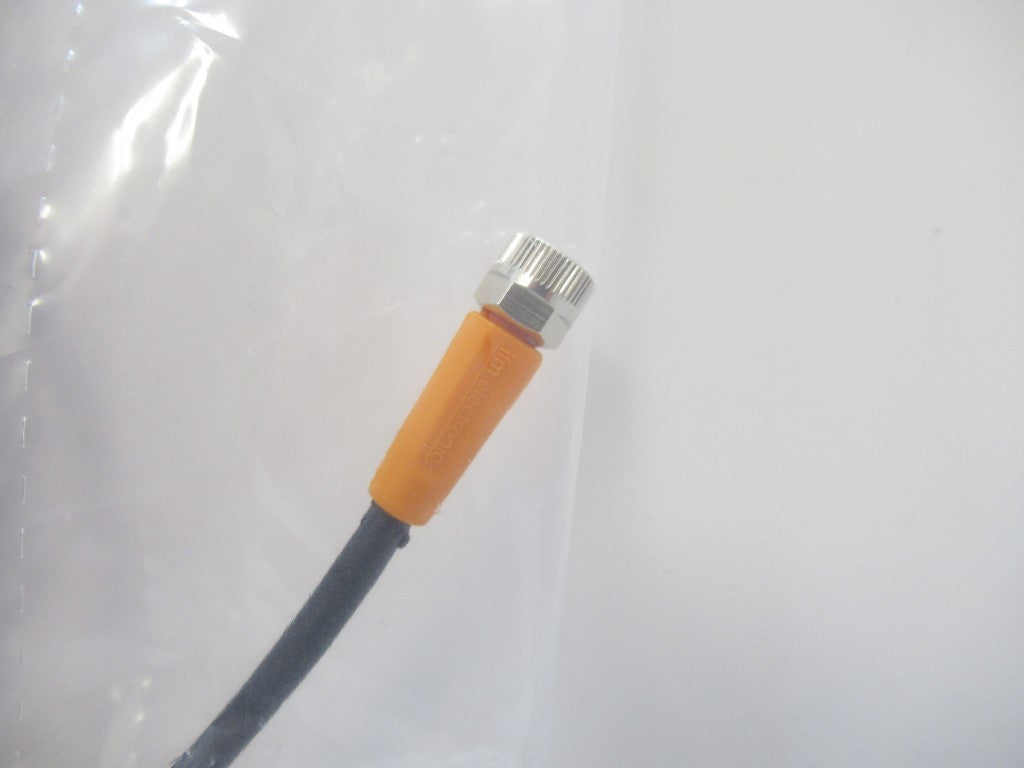

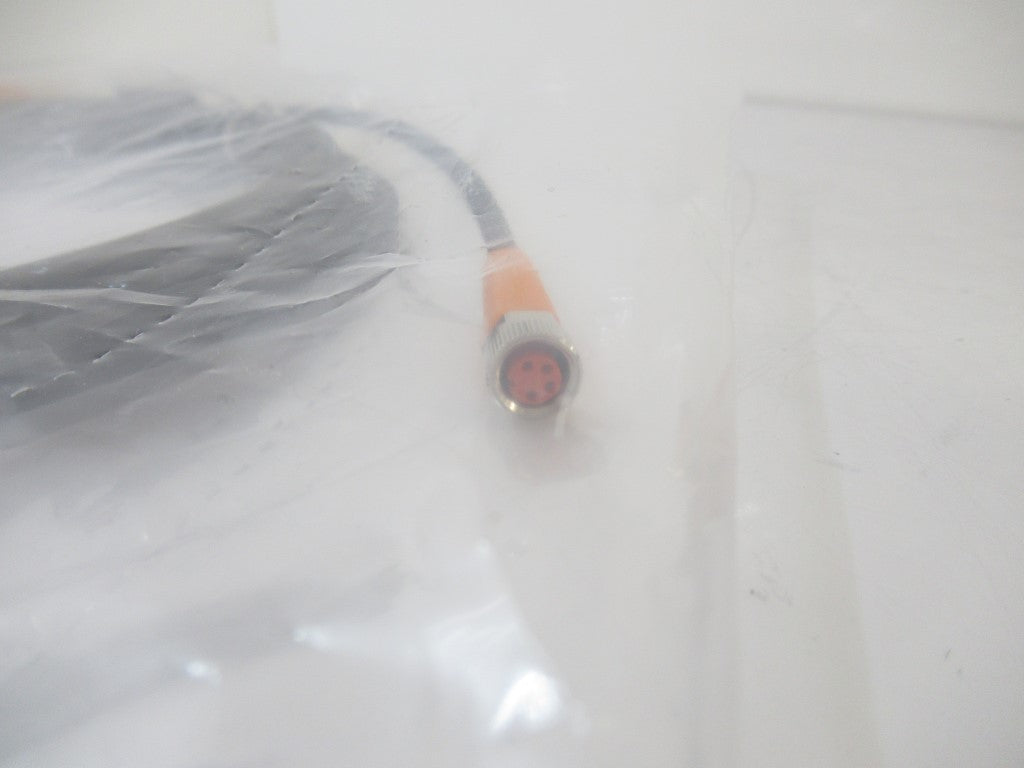

  • Connectiom - Socket: Connector: 1 x M8, Straight; Locking: Brass, Nickel-Plated; Contacts: Gold-Plated; Tightening Torque: 0.3...0.5 Nm
