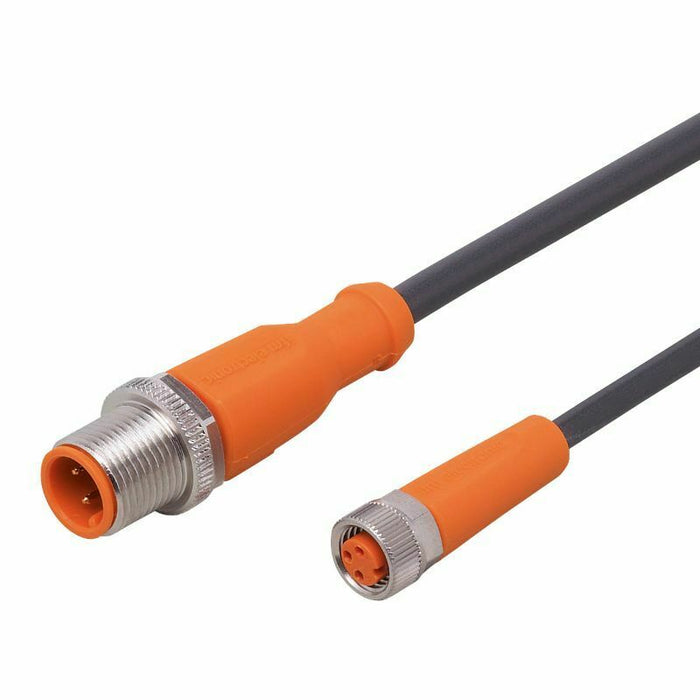

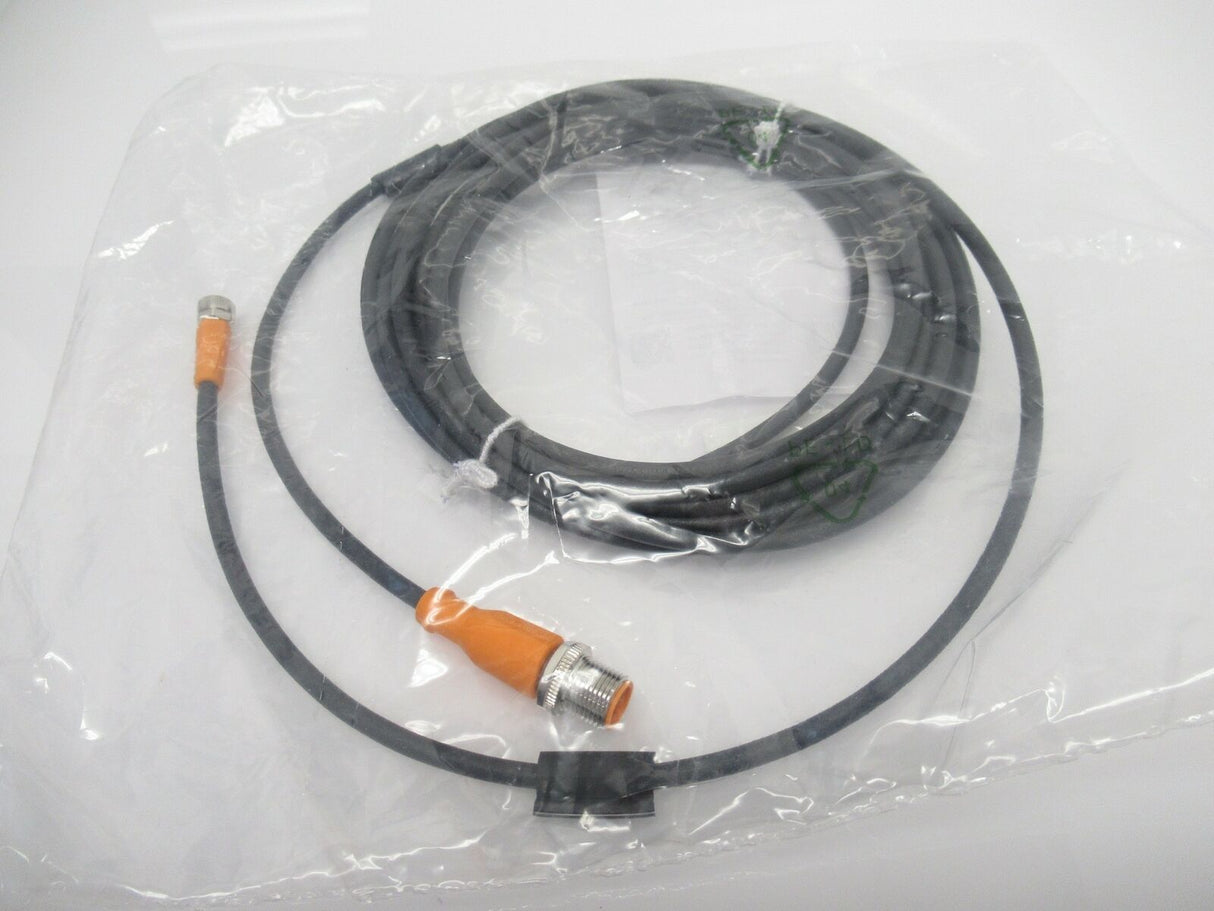

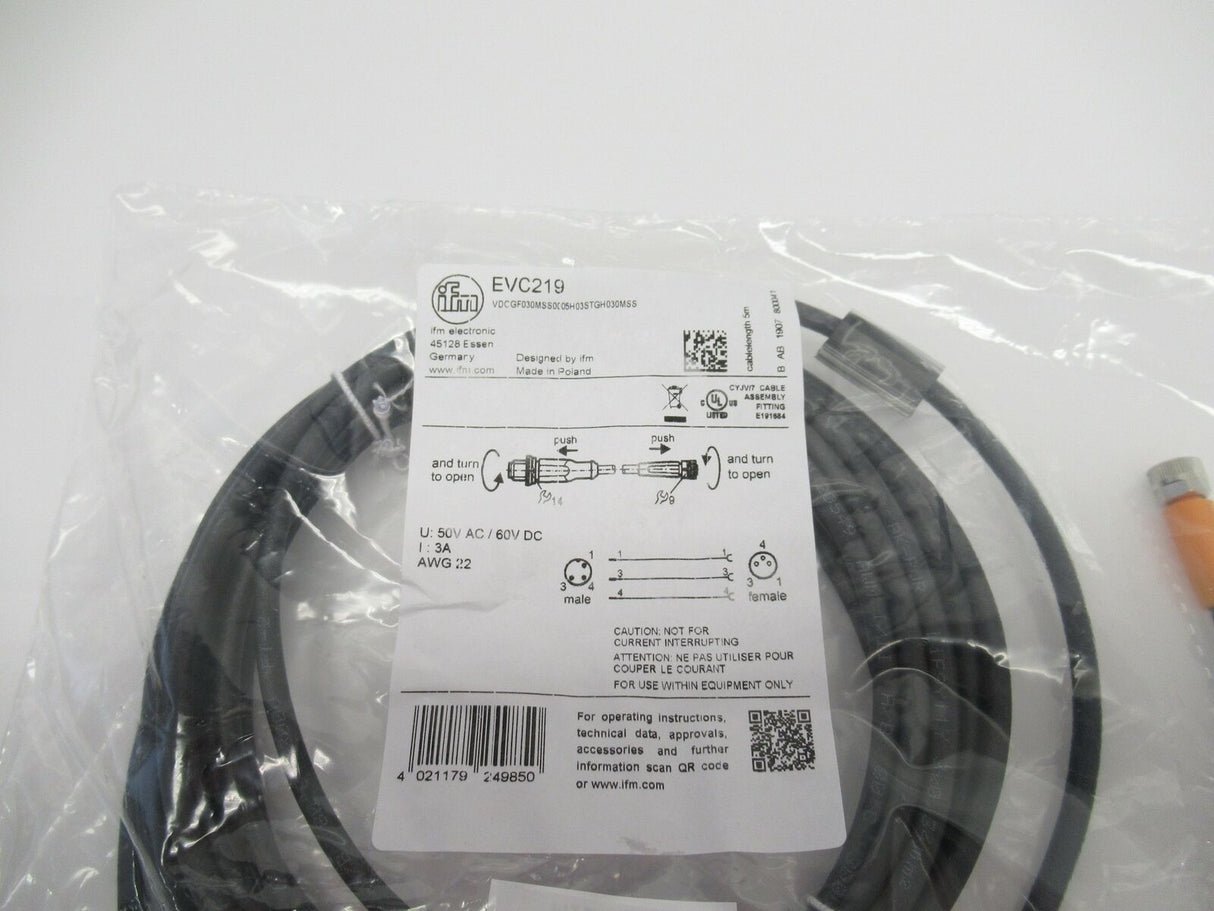

EVC219 Ifm Electronic Connection Cable For Sensors With M12 Plug, M8 Socket

EVC219 Ifm Electronic 5 m Pur-Cable; M12 / M8 Connector

by IFM ELECTRONIC
Sold out
$30.19 USD
FACTORY SUPPLY BRAND NEW
SKU WIR-1023-E
UPC: 4021179249850
Only 0 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

Product Information

VDOGF030MSS0005H03STGH030MSS

  • System: Free From Silicone; Halogen-Free; Gold-Plated Contacts; Drag Chain Suitability
  • Free From Silicone: yes

Electrical Data

  • Operating Voltage [V]: < 50 AC / < 60 DC
  • Protection Class: III
  • Max. Current Load Total [A]: 3

Operating Conditions

  • Ambient Temperature [°C]: -25...90
  • Note On Ambient Temperature: cULus: ...75
  • Ambient Temperature (Moving) [°C]: -25...90
  • Note On Ambient Temperature (Moving): cULus: ...75
  • Protection: IP 65; IP 67; IP 68; IP 69K

Electrical Connection

  • Plug Connector: 1 x M12, Straight; Locking: Brass, Nickel-Plated; Contacts: Gold-Plated; Tightening Torque: 0.6...1.5 Nm
  • Connection Cable: 5 m, PUR, Halogen-Free, Black, Ø 4.3 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )
  • Socket Connector: 1 x M8, Straight; Locking: Brass, Nickel-Plated; Contacts: Gold-Plated; Tightening Torque: 0.3...0.5 Nm
