Ifm Electronic EVC143 ADOGF030MSS0010H03, 10 m PUR-Cable, M8 Connector

SKU WIR-1342-E
Original price $12.05 USD - Original price $12.05 USD
Original price
$12.05 USD
$12.05 USD - $12.05 USD
Current price $12.05 USD
Availability:
Only 3 left!

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Product Information

  • Cable: 10 m, PUR, Halogen-Free, Black, Ø 3.7 mm; 3 x 0.25 mm² (32 x Ø 0.1 mm )

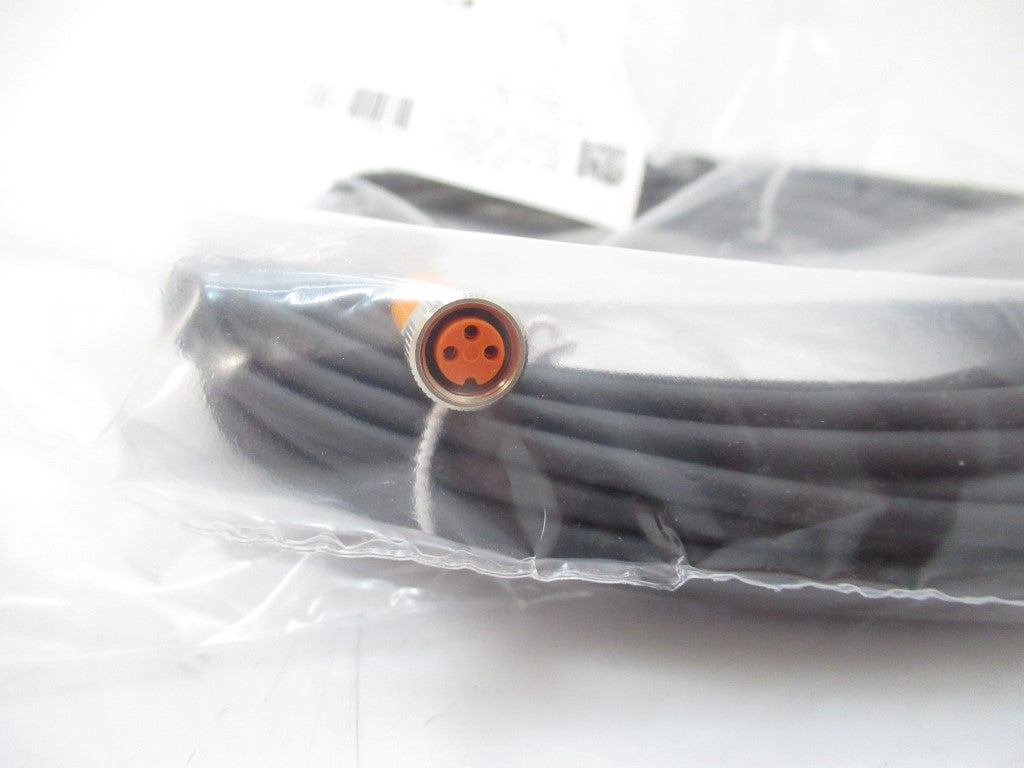

  • Connector: 1 x M8, Straight; Locking: Brass, Nickel-Plated; Contacts: Gold-Plated; Tightening Torque: 0.3...0.5 Nm
  • Material Nut: Brass, Nickel-Plated
  • Ambient Temperature [°C]: -25...90
  • Protection: IP 65; IP 67; IP 68; IP 69K
  • Weight: 203.4 g (0.45 lb)
  • Dimensions: 10 x 10 x 31 mm
  • Materials: Housing: TPU Orange; Sealing: FKM
  • UPC: 4021179249614
