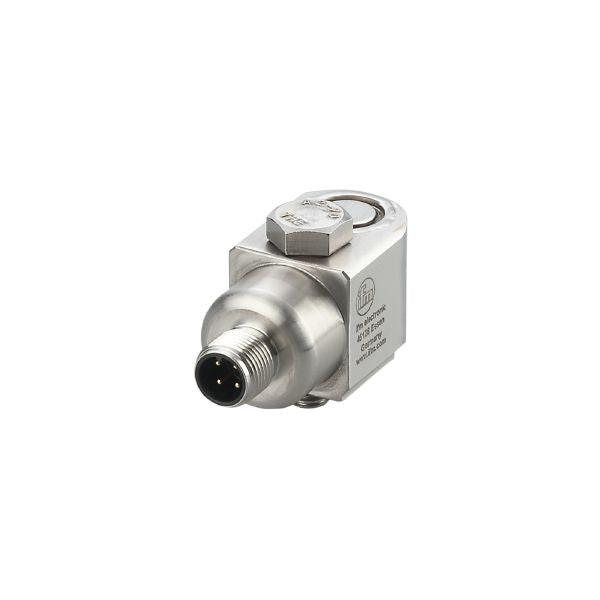

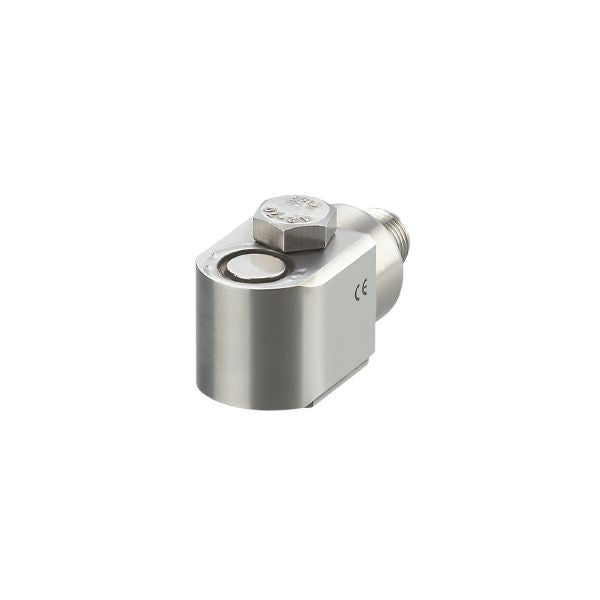

Efector IFM VSP003 Accelerometer
Country Of Origin:
| Measuring range of vibration [g] | -80...80; (-50...50 g when connected to a VSE) |
|---|---|
| Frequency range [Hz] | 1.5...16000 |
| Measuring principle | piezoelectric |
| Communication interface | IEPE |
| Design | for connection to external diagnostic electronics VSE |
|---|
| Bias voltage DC [V] | 10...12 |
|---|---|
| Current consumption [mA] | 0.5...8 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Reverse polarity protection | yes |
| Measuring range of vibration [g] | -80...80; (-50...50 g when connected to a VSE) |
|---|---|
| Frequency range [Hz] | 1.5...16000 |
| Measuring principle | piezoelectric |
| Noise density [mg] | 0.1 |
| Max. transverse sensitivity [%] | 5 |
| Minimum measuring time [s] | 1 |
| Number of measurement axes | 1 |
| Accuracy | ± 10 % |
|---|---|
| Measuring sensitivity | 100 mV/g |
| Communication interface | IEPE |
|---|
| Ambient temperature [°C] | -55...130 |
|---|---|
| Storage temperature [°C] | -55...130 |
| Protection | IP 67 |
| EMC |
|
||
|---|---|---|---|
| Shock resistance |
|
||
| MTTF [years] | 1142 |
| Weight [g] | 135 |
|---|---|
| Type of mounting | M8 x 1,25 |
| Material | housing: stainless steel |
| Tightening torque [Nm] | 8 |
| Pack quantity | 1 pcs. |
|---|
| Connector: 1 x M12; coding: A |
