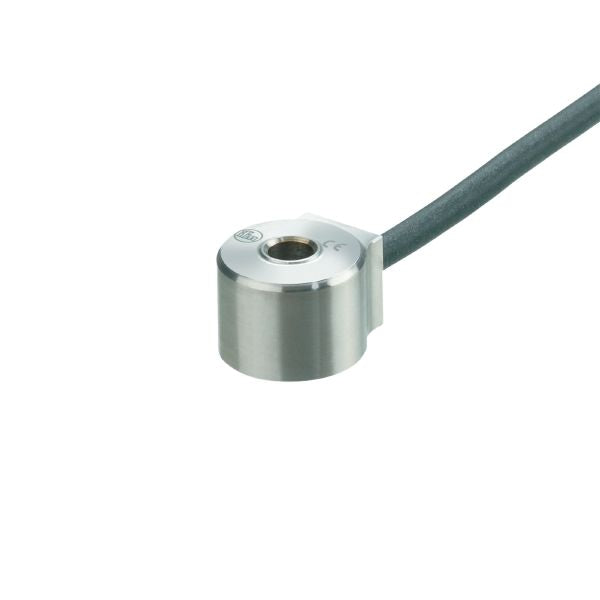

Efector IFM VSA204 Accelerometer
Efector IFM VSA204 Accelerometer is backordered and will ship as soon as it is back in stock.
As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.
Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Efector IFM VSA204 Accelerometer
Country Of Origin:
| Measuring range of vibration [g] | -150...150 |
|---|---|
| Frequency range [Hz] | 1...10000 |
| Measuring principle | capacitive |
| System | screened cable; Drag chain suitability |
|---|---|
| Design | for connection to external diagnostic electronics VSE |
| Application | vibration detection |
| Operating voltage [V] | 7.2...10.8 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of sensor | Microelectromechanical system (MEMS) |
| Analog current output [mA] | 0...10 |
|---|---|
| Max. load [Ω] | 300 |
| Measuring range of vibration [g] | -150...150 |
|---|---|
| Frequency range [Hz] | 1...10000 |
| Measuring principle | capacitive |
| Sensitivity [µA/g] | 35.5 |
| Number of measurement axes | 1 |
| Linearity deviation | 0,2 % |
|---|
| Ambient temperature [°C] | -20...80 |
|---|---|
| Storage temperature [°C] | -20...80 |
| Max. relative air humidity [%] | 80; (40 °C: 50 % non condensing) |
| Protection | IP 67 |
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||
| Vibration resistance |
|
||||||||
| MTTF [years] | 2104 | ||||||||
| UL approval |
|
| Weight [g] | 114.3 | ||||
|---|---|---|---|---|---|
| Type of mounting | mounting screw | ||||
| Material | housing: stainless steel (1.4404 / 316L) | ||||
| Tightening torque [Nm] | 5 | ||||
| Mechanische Überlastfestigkeit [g] | 500 | ||||
| Drag chain suitability | yes | ||||
| Drag chain suitability |
|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Cable: 3 m, PUR, Ø 4 mm, screened; Maximum cable length: 250 m; drain wire applied to the housing; 4 x 0.14 mm² |
