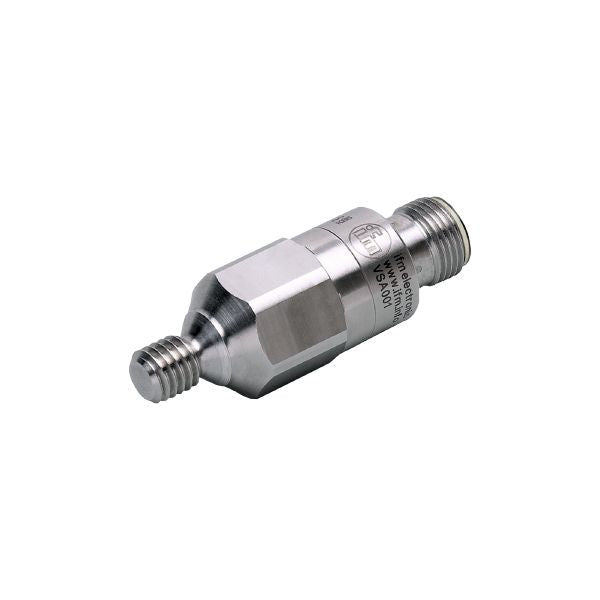

Efector IFM VSA201 Accelerometer
Country Of Origin:
| Measuring range of vibration [g] | -250...250 |
|---|---|
| Frequency range [Hz] | 1...6000 |
| Measuring principle | capacitive |
| Design | for connection to external diagnostic electronics VSE |
|---|---|
| Application | vibration detection |
| Operating voltage [V] | 7.2...10.8 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of sensor | Microelectromechanical system (MEMS) |
| Analog current output [mA] | 0...10 |
|---|---|
| Max. load [Ω] | 300 |
| Measuring range of vibration [g] | -250...250 |
|---|---|
| Frequency range [Hz] | 1...6000 |
| Measuring principle | capacitive |
| Sensitivity [µA/g] | 14.2 |
| Number of measurement axes | 1 |
| Linearity deviation | 5 % |
|---|
| Ambient temperature [°C] | -30...125 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Storage temperature [°C] | -30...125 | |
| Protection | IP 67; IP 68; IP 69K |
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 3094 |
| Weight [g] | 49 |
|---|---|
| Type of mounting | M8 x 1,25 |
| Material | housing: stainless steel (1.4404 / 316L) |
| Tightening torque [Nm] | 8 |
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connector: 1 x M12; coding: A; Maximum cable length: 250 m |
