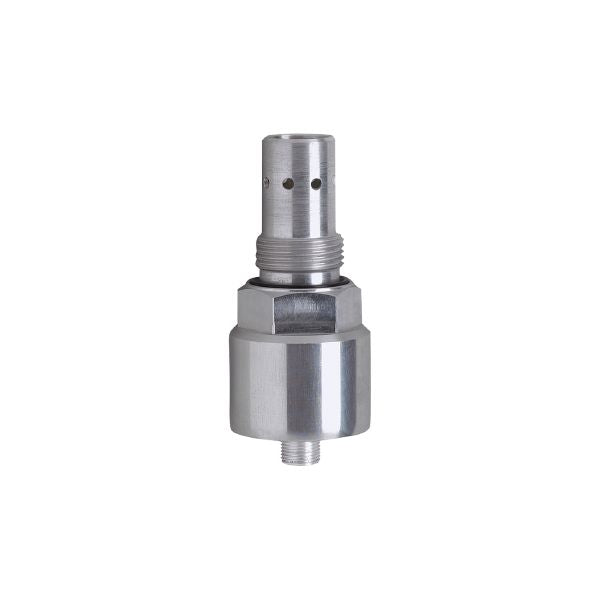

Efector IFM LDH100 Oil Humidity Sensor
Country Of Origin:
Electrical Data:
- Operating Voltage: 9...33 V DC
- Current Consumption: < 25 mA
- Protection Class: III
- Reverse Polarity Protection: No
- Measuring Principle: Capacitive
Inputs / Outputs:
- Analog Outputs: 2
- Output Range: 4...20 mA
- Max. Load: (Ub - 8) x 25 Ω
- Output Resolution: φ: 1%, T: 0.1 K
Measuring Range:
- Temperature Monitoring: -20...120°C
- Accuracy: φ: ±3%, T: ±2%
- Response Time: 1.3 s
Operating Conditions:
- Ambient Temp: -40...85°C
- Storage Temp: -40...85°C
- Max. Humidity: 100%
- Protection: IP 67
Tests / Approvals:
- EMC: EN 13309, IEC 61000-6-2 (2005), IEC 61000-6-4 (2006 + AMD1: 2010)
- Vibration Resistance: DIN EN 60068-2-6
- MTTF: 90 years
Mechanical Data:
- Weight: 176.5 g
- Wetted Parts: Aluminum, HNBR, Polyurethane resin, Epoxy resin
- Process Connection: G 3/4
Remarks:
- Accuracy values refer to measuring span
- Pack Quantity: 1 pcs
Electrical Connection:
- Connector: 1 x M12, A coding
