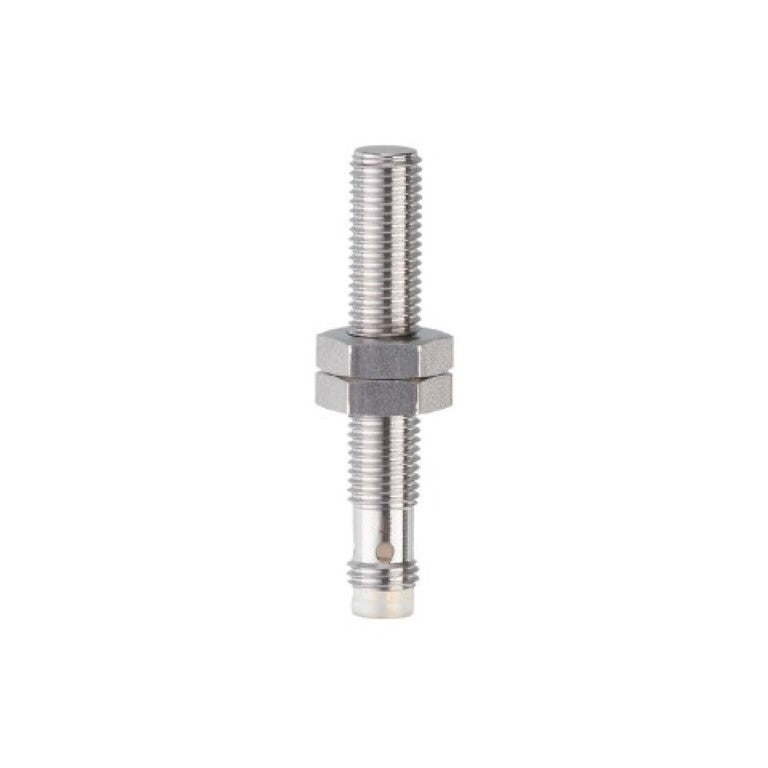

Efector Ifm IEC202 IEB3002BANKG/AM/AS Inductive Full Metal Sensor

Product Characteristics:

• Electrical Design: NPN
• Output Function: Normally open
• Sensing Range: 2 mm
• Housing: Threaded type
• Dimensions: M8 x 1 / L = 50 mm
• Pressure Rating: 50 bar (sensing face)

Application:

• Suitable for machine tools, coolants, and lubricants
• Features gold-plated contacts and increased sensing range

Electrical Data:

• Operating Voltage: 10...30 DC
• Current Consumption: < 10 mA
• Protection Class: III
• Reverse Polarity Protection: Yes
• Max. Voltage Drop Switching Output DC: 2.5 V
• Permanent Current Rating of Switching Output DC: 100 mA
• Switching Frequency DC: 100 Hz
• Short-Circuit Protection: Yes
• Overload Protection: Yes
