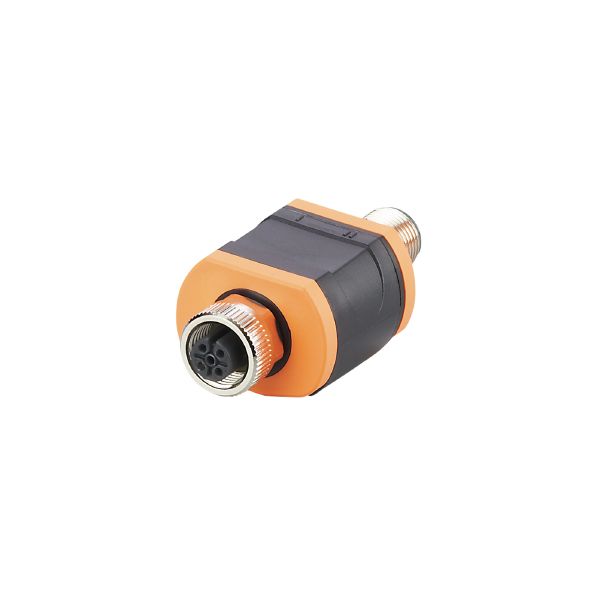

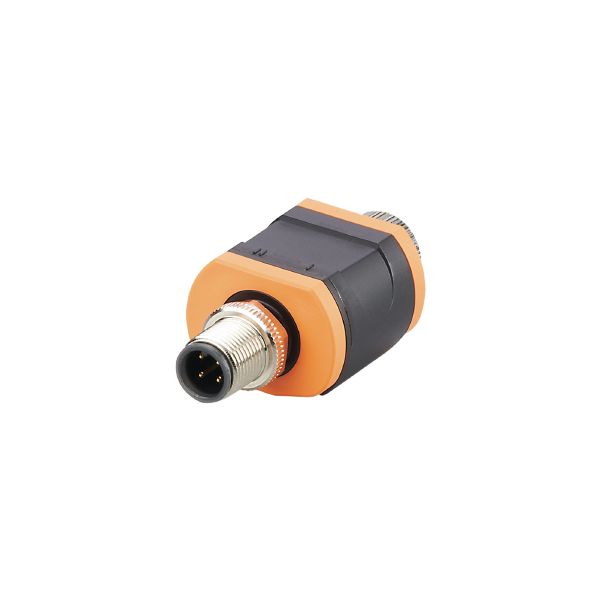

Efector IFM DP1213 Converter Io-Link - 4...20 Ma
Country Of Origin:
| Number of inputs and outputs | Number of analog outputs: 2 |
|---|---|
| Communication interface | IO-Link |
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Nominal voltage DC [V] | 24 |
| Current consumption [mA] | 300 |
| Max. current load total [A] | 0.2 |
| Number of inputs and outputs | Number of analog outputs: 2 |
|---|
| Number of analog outputs | 2 |
|---|---|
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 300 |
| Precision analog output [%] | 0,25 |
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor | ||||
| SIO mode | no | ||||
| Required master port class | A/B | ||||
| Process data analog | 2 | ||||
| Min. process cycle time [ms] | 3.6 | ||||
| Supported DeviceIDs |
|
| Ambient temperature [°C] | -25...70 | |||
|---|---|---|---|---|
| Note on ambient temperature |
|
|||
| Storage temperature [°C] | -25...70 | |||
| Max. relative air humidity [%] | 90; (linearly decreasing to 50 % (40 °C) non condensing) | |||
| Max. height above sea level [m] | 4000 | |||
| Protection | IP 67 | |||
| Degree of soiling | 2 |
| MTTF [years] | 352 |
|---|
| Weight [g] | 91.5 |
|---|---|
| Material | housing: PA |
| Display |
|
|---|
| Accessories (optional) |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
