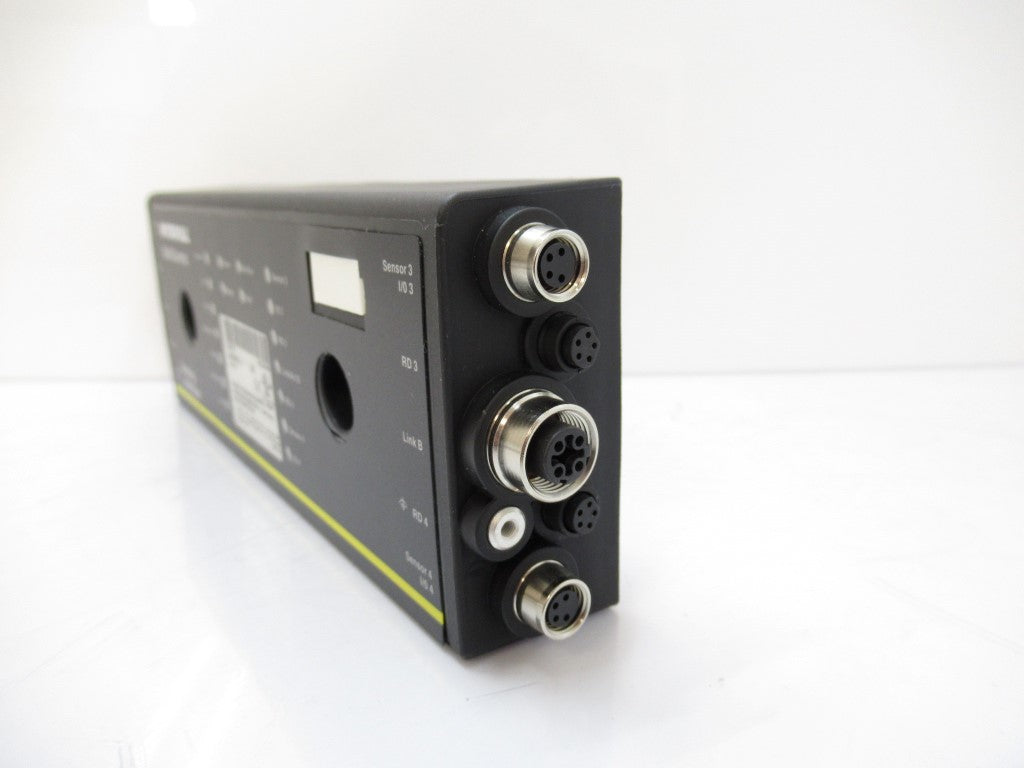

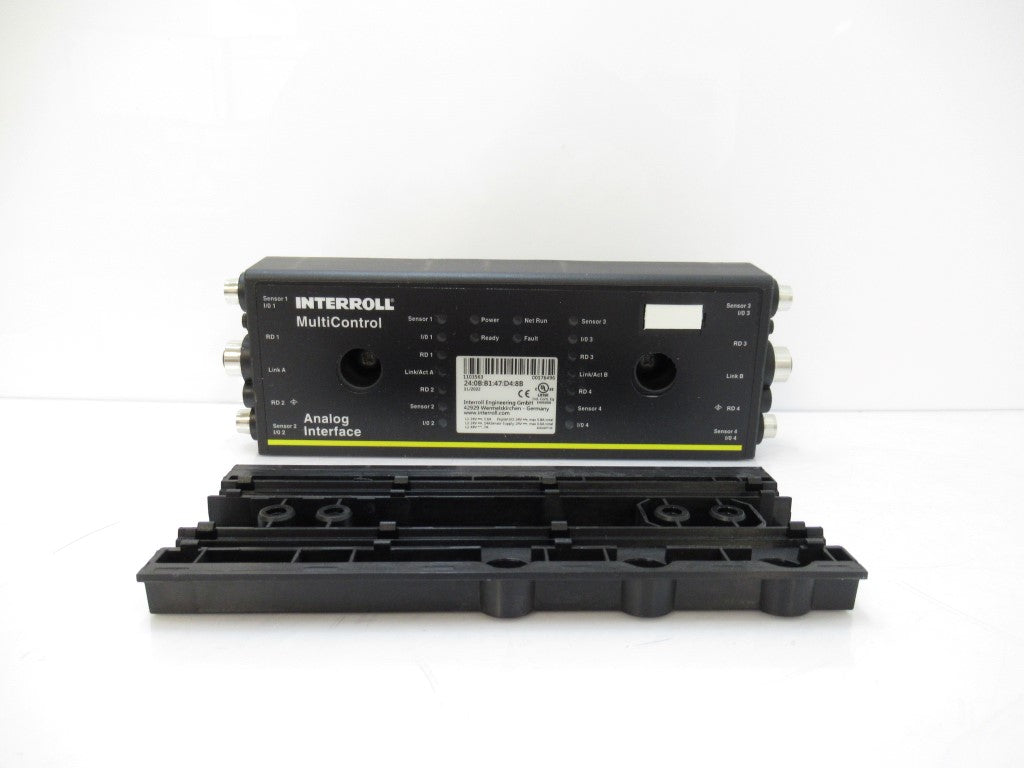

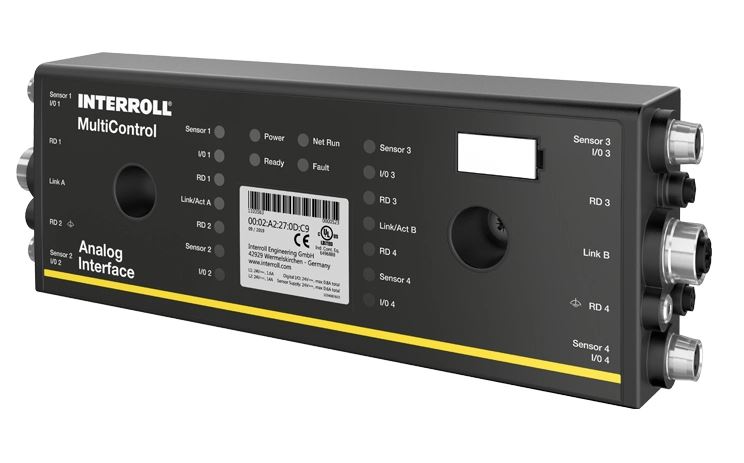

EC310 1103563 Interroll MultiControl Analog Interface

Product Information

• Rated Voltage: 24V DC
• Voltage Range: 19 to 26V DC
• Analog Version
• Logic and Sensors: 1.7 A
• RollerDrive Rate Current: 4 x 2 A = 8 A
• RollerDrive Max. Startup Current: 4 x 4 A = 16 A
• Ambient Temperature in Operation: -22º F to 104º F
• Ambient Temperature during Transport and Storage: -40º F to 185º F
• Max. installation height (above sea level): 3,300 ft max, but may result in a reduction of the performance values
• Real-time communication with a PLC
• Configuration via the web interface or PLC
• Housing designed for industrial use with protection class IP54
• UL Certified
