E20633 FT-11-EPA-M6/F2X1/2M Ifm Electronic Diffuse Reflection Sensor

SKU SEN-1424-E
Sold out
Original price $62.31 USD - Original price $62.31 USD
Original price
$62.31 USD
$62.31 USD - $62.31 USD
Current price $62.31 USD
Availability:
Out of stock

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

E20633 FT-11-EPA-M6/F2X1/2M FT11EPAM6F2X12M

Ifm Electronic

Fibre Optic Diffuse Reflection Sensor

(New In Box)

  • For Installation In Places Where Access Is Difficult
  • Operation As Diffuse Reflection Sensor
  • For Use At Short Range
  • For Cutting To Size
  • Very Small Bending Radius

Description

Detection Zone

  • Range With Fibre Optic Amplifier Type: OB50; OBF; OO50

Operating Conditions

  • Ambient Temperature [°C]: -40...70

Mechanical Data

  • Weight [g]: 48.5
  • Version Of Sensing Head: Straight
  • Sensing Head Thread: M6
  • Sensing Head Length [mm]: 35
  • Total Length [mm]: 2000
  • Min. Bending Radius [mm]: 30
  • Core Diameter [mm]: 2 X 1
  • Fibre Material: PMMA
  • Fibre Head Material: Aluminium
  • Fibre Sheath Material: PE

Items Supplied

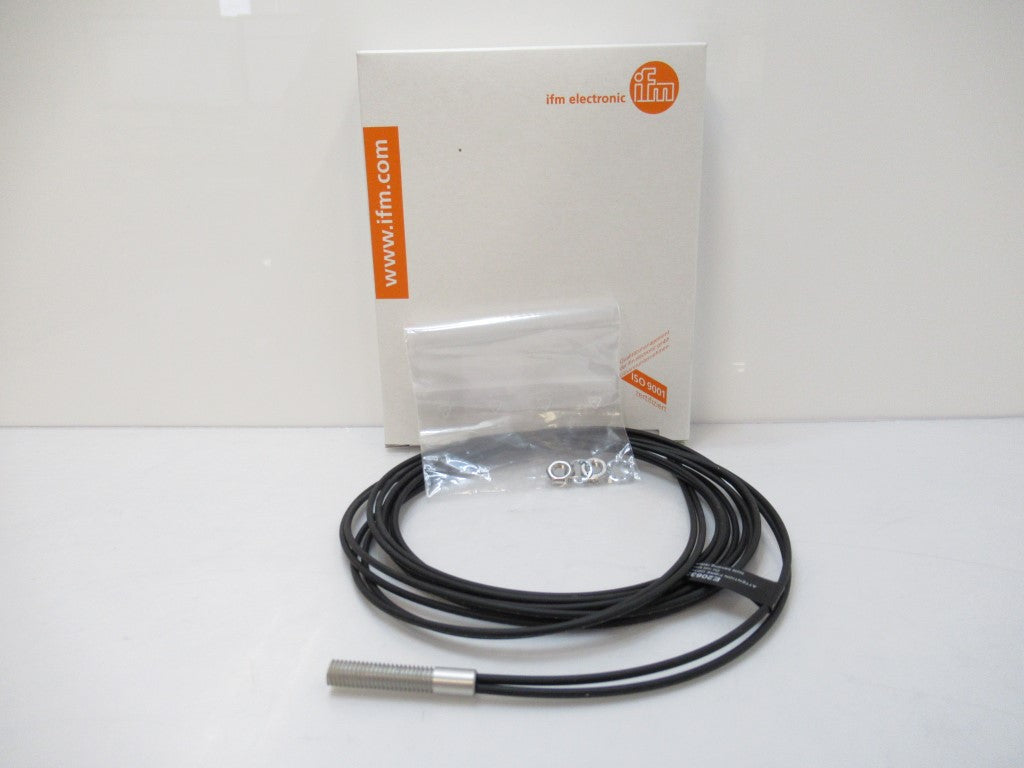

  • Hexagon Nuts: 2 x M6 (3,1 mm), Stainless Steel Tooth Lock Washers: 2
