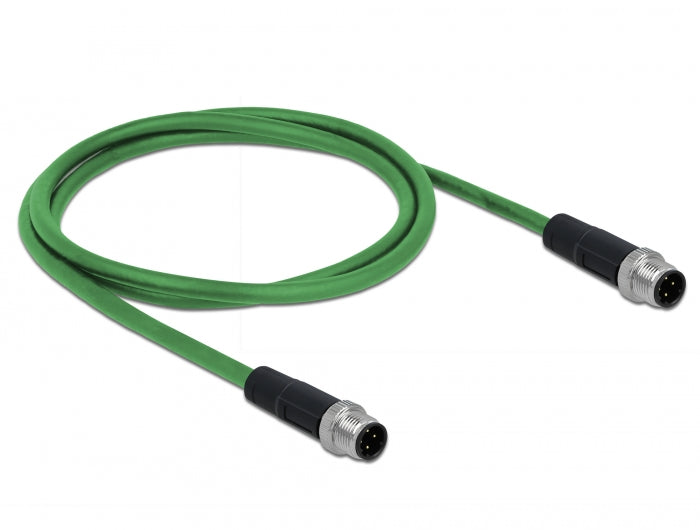

Delock 85917 Network Cable M12 4 Pin D-Coded Male To Male Tpu 1 M
Country Of Origin: China

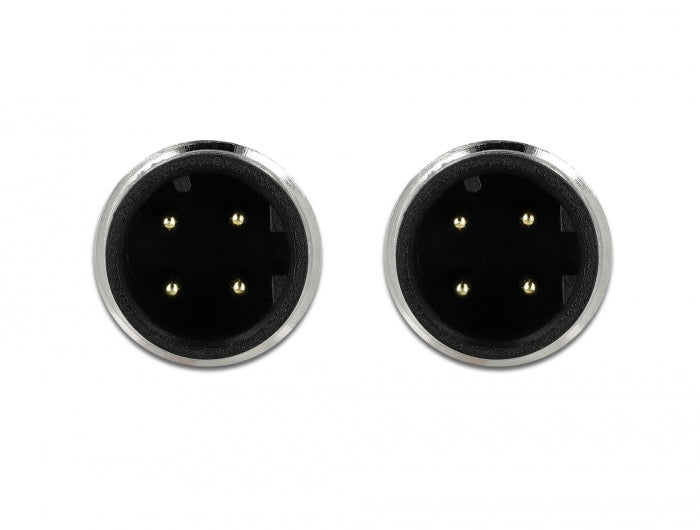

1 x M12 male 4 pin D-coded >
1 x M12 male 4 pin D-coded
• PROFINET specification

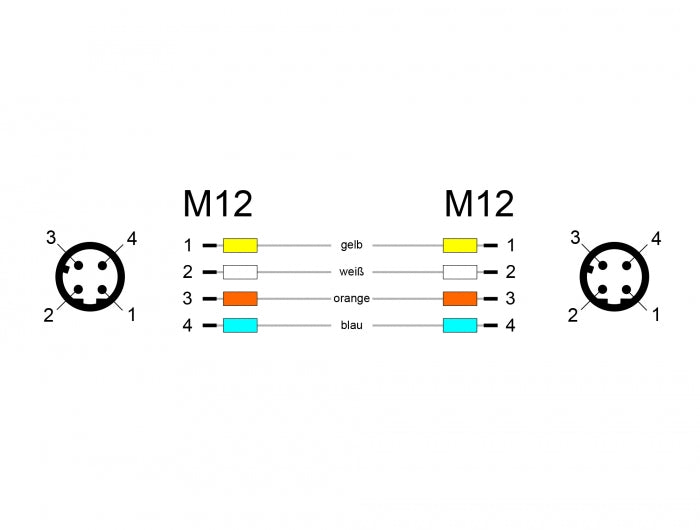

• Pin assignment according to PROFINET standard
• Suitable for drag chains
• SF/UTP
• Shielding: aluminium foil, transparent foil, tinned copper braiding
• Tinned copper conductors
• Cable gauge: 22 AWG
• Cable diameter: ca. 6.5 mm
• Cable jacket material: PUR (TPU)
• Max. number of bending cycles: 3,000,000
• Smallest bending radius:
32.50 mm with fixed installation
48.75 mm with flexible installation
• Oil-resistant according to DIN EN 60811-2-1
• UV-resistant
• LS0H (halogen-free)
• Flammability class: FT2
• Operating temperature: -40 °C ~ 70 °C
• Protection class: IP67
• Colour: green

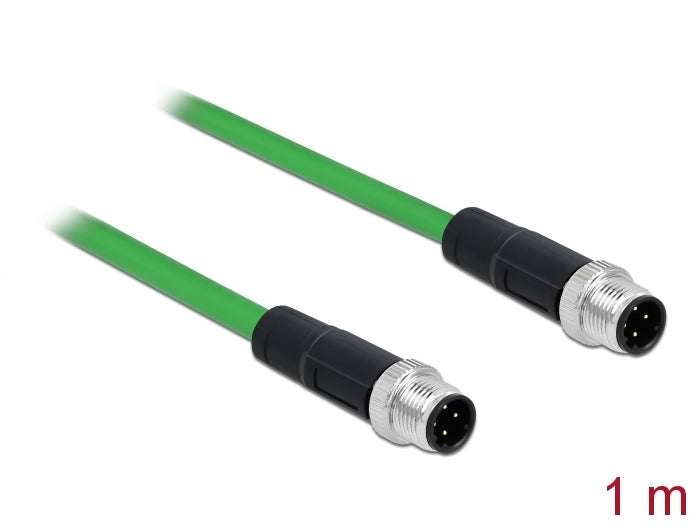

• Length incl. connectors: ca. 1 m
-
