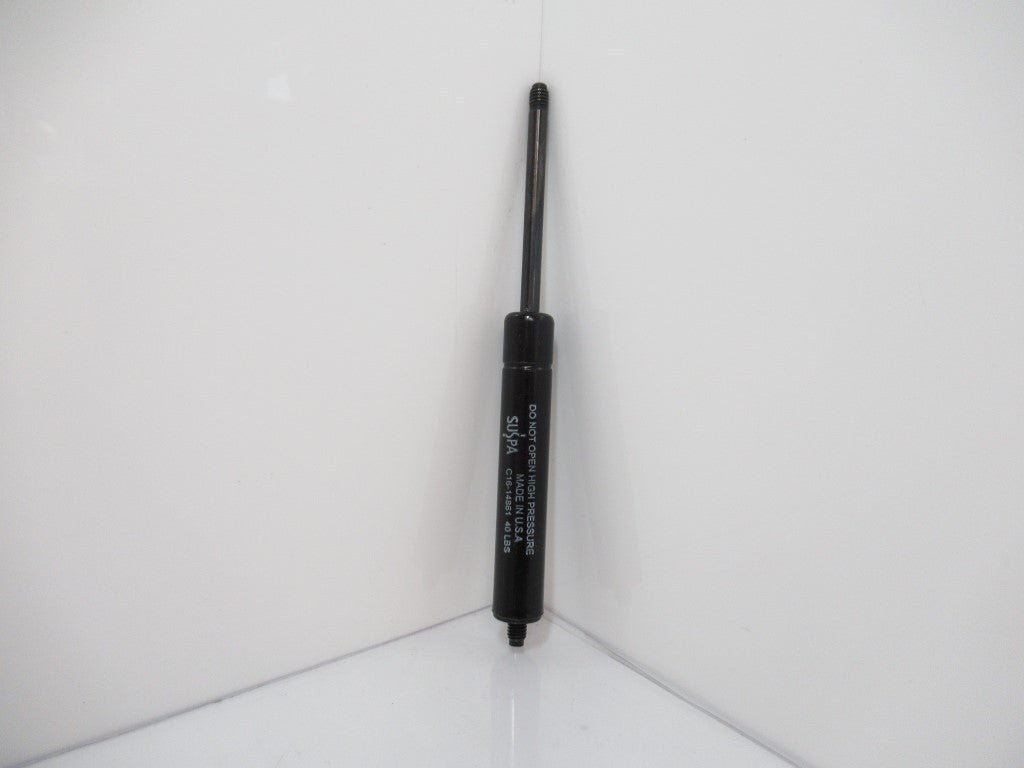

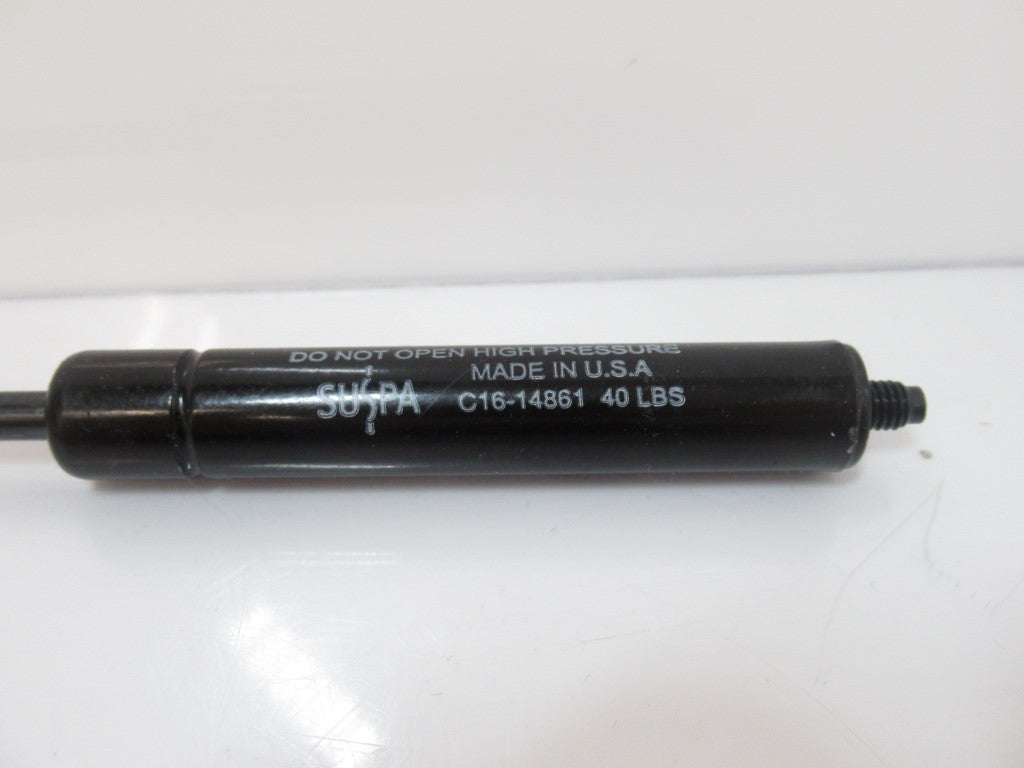

Suspa C16-14861 Gas Spring, 5.9 in Extended Length, 40 lbs

Name: Suspa C16-14861 Gas Spring, 5.9 in Extended Length, 40 lbs
Availability: InStock

SKU SPG-0151-40-E

$18.69 USD - $18.69 USD

$18.69 USD

$18.69 USD - $18.69 USD

$18.69 USD

Availability:

12 in stock, ready to be shipped

Quantity

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Suspa

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Condition :

Description

Sold By Unit

P/n: C16-14861 C1614861

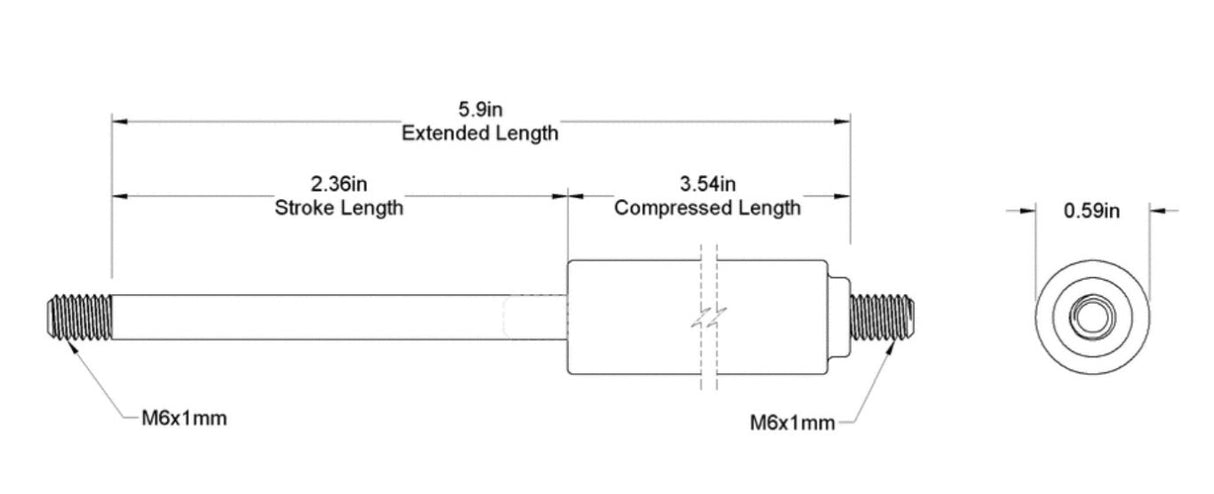

Extended Length: 5.9 in
Compressed Length: 3.54 in
Stroke Length: 2.36 in
Compression Force: 54 lbs
Mounting Orientation: Horizontal, Vertical With Rod Down
Maximum Cycles Per Minute: 6
Maximum Cycles: 25,000
Force Mechanism: Compressed Nitrogen Gas And Oil
Body Diameter: 0.59 in
Body Finish: Steel
Seal Material: Rubber
Rod Diameter: 0.23 in
Thread Size: M6
Thread Pitch: 1 mm
Material: Steel
End Thread Pitch: 1 mm
Temperature Range: -22 Deg To 176 Deg F
Extension Force: 40 lbs

Suspa C16-14861 Gas Spring, 5.9 in Extended Length, 40 lbs
