BSW-3AN BSW3AN S&W Swivel Leveling Mount In Steel 4" Long 5/8"-11 Threaded Stud.

BSW-3AN S&W Swivel Leveling Mount, Steel 4" Long 5/8"-11 Threaded Stud

Name: BSW-3AN S&W Swivel Leveling Mount, Steel 4" Long 5/8"-11 Threaded Stud
Availability: InStock

SKU QUIN-5010-E

$26.76 USD - $26.76 USD

$26.76 USD

$26.76 USD - $26.76 USD

$26.76 USD

Availability:

9 in stock, ready to be shipped

Quantity

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by S&W

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product Information

Sold By Unit BSW3AN

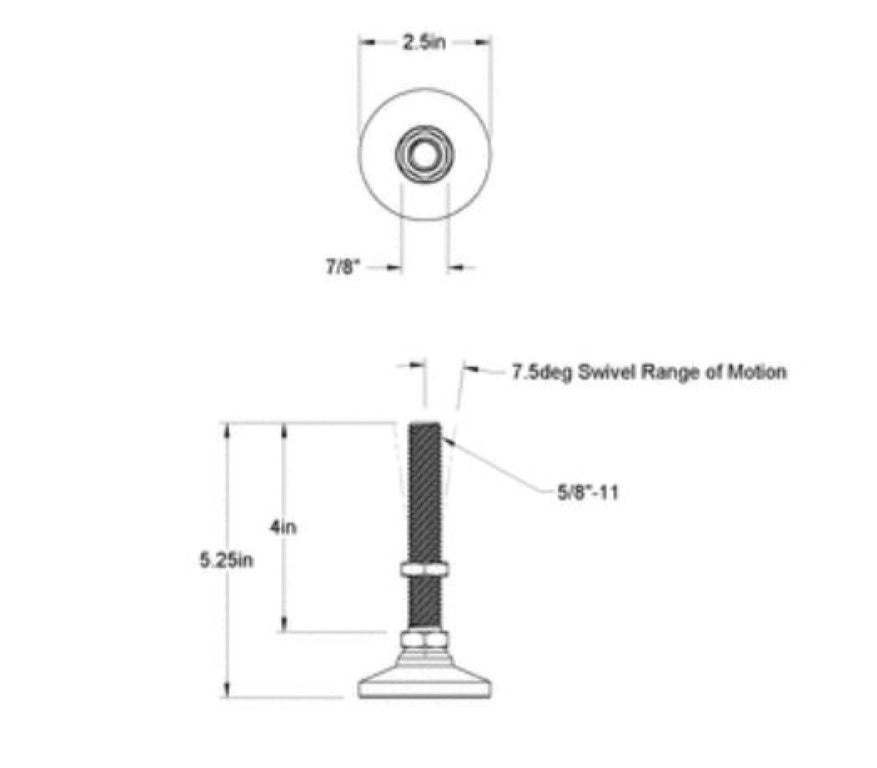

Mount Movement	Swivel
Mount Type	Threaded Stud
Thread Size	5/8"-11
Thread Type	UNC
Thread Length	4"
Capacity per Mount	6,000 lbs.
Swivel Range of Motion	7.5°
Base Diameter	2 1/2"
Overall Height	5 1/4"
Hex Nut Width	7/8"
Base Shape	Round
Base Material	Nickel-Plated Steel
Stud Material	Nickel-Plated Steel
Hex Nut Material	Nickel-Plated Steel
Temperature Range	-20° to 170° F
Includes	Locknut
RoHS	RoHS 3 (2015/863/EU) compliant with exemption 6(a)-I - Lead as an alloying element in steel
REACH	REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	United States
USMCA Qualifying	No
Schedule B	848790.0080

BSW-3AN S&W Swivel Leveling Mount, Steel 4" Long 5/8"-11 Threaded Stud
