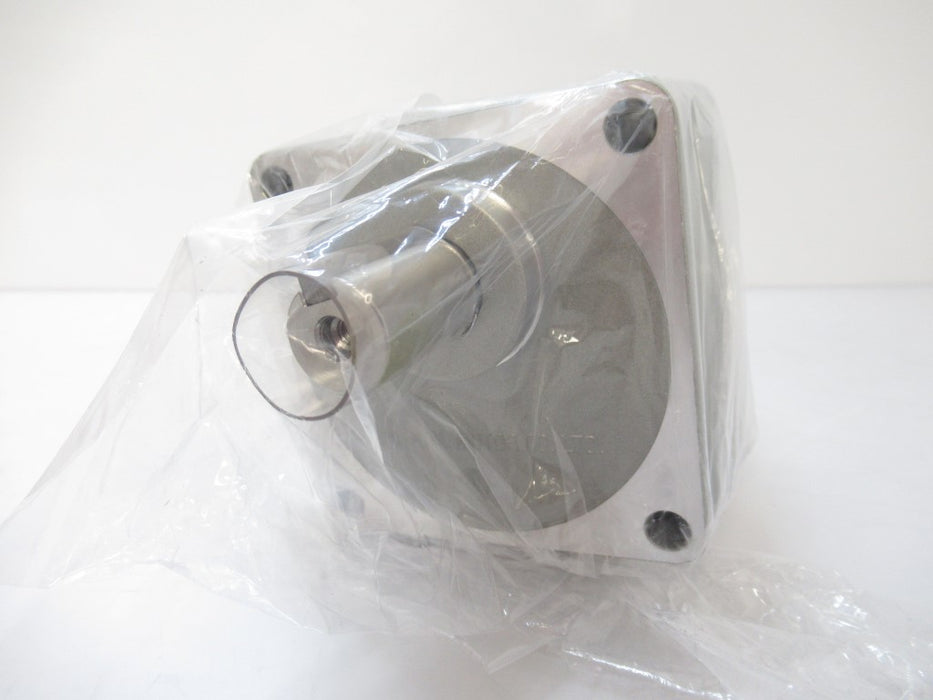

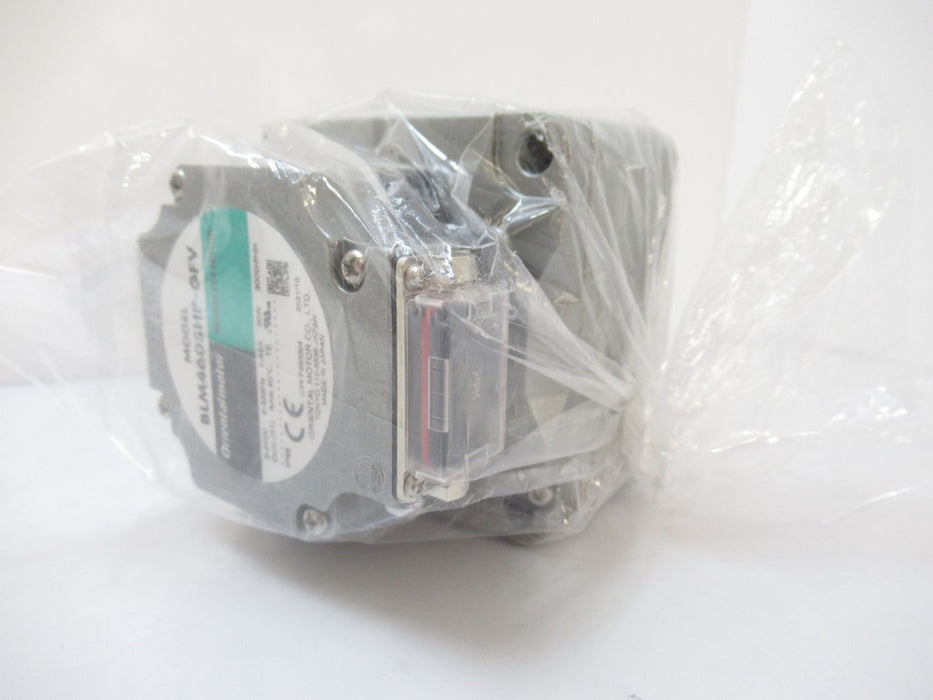

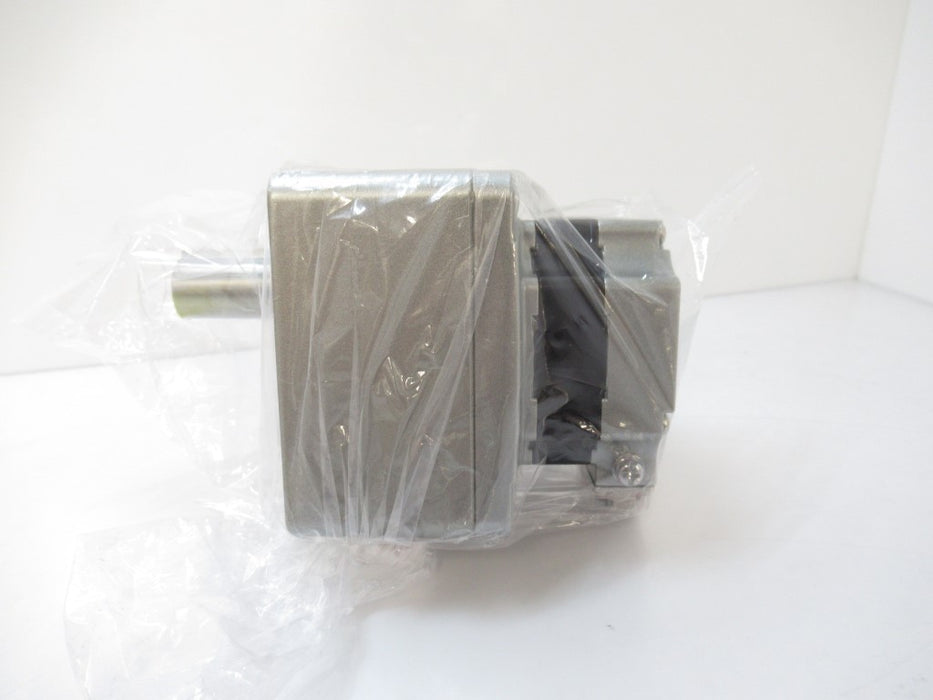

BLM460SHP-15AS Oriental Motor 60W 1.1/2 HP Brushless DC Motor

SKU MOT-2288-E
Sold out
Original price $294.69 USD - Original price $294.69 USD
Original price
$294.69 USD
$294.69 USD - $294.69 USD
Current price $294.69 USD
Out of stock

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.


Oriental Motor

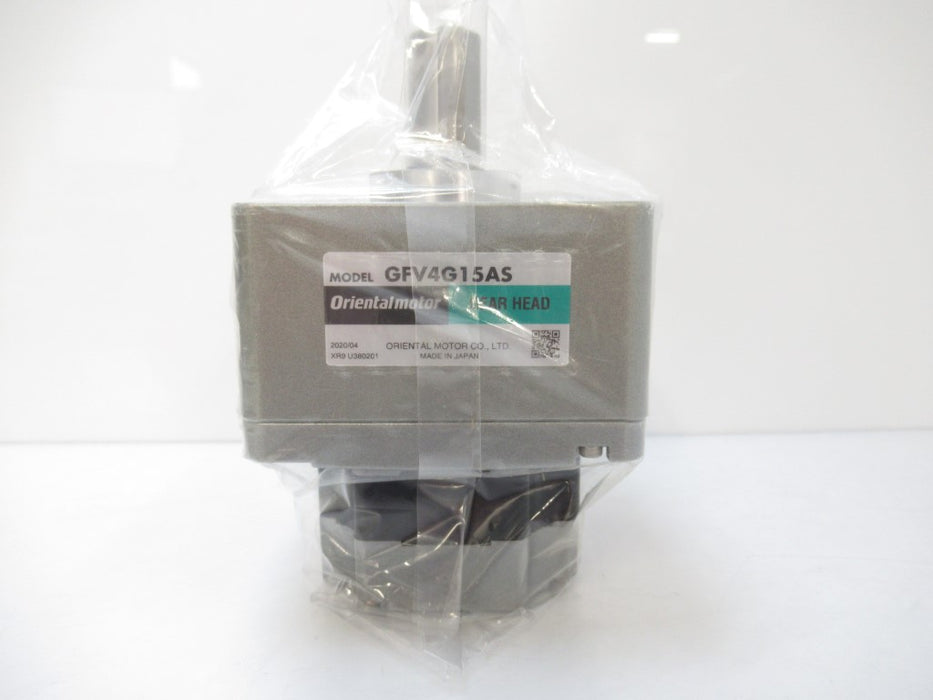

Assembly: GFV4G15AS - BLM460SHP-GFV

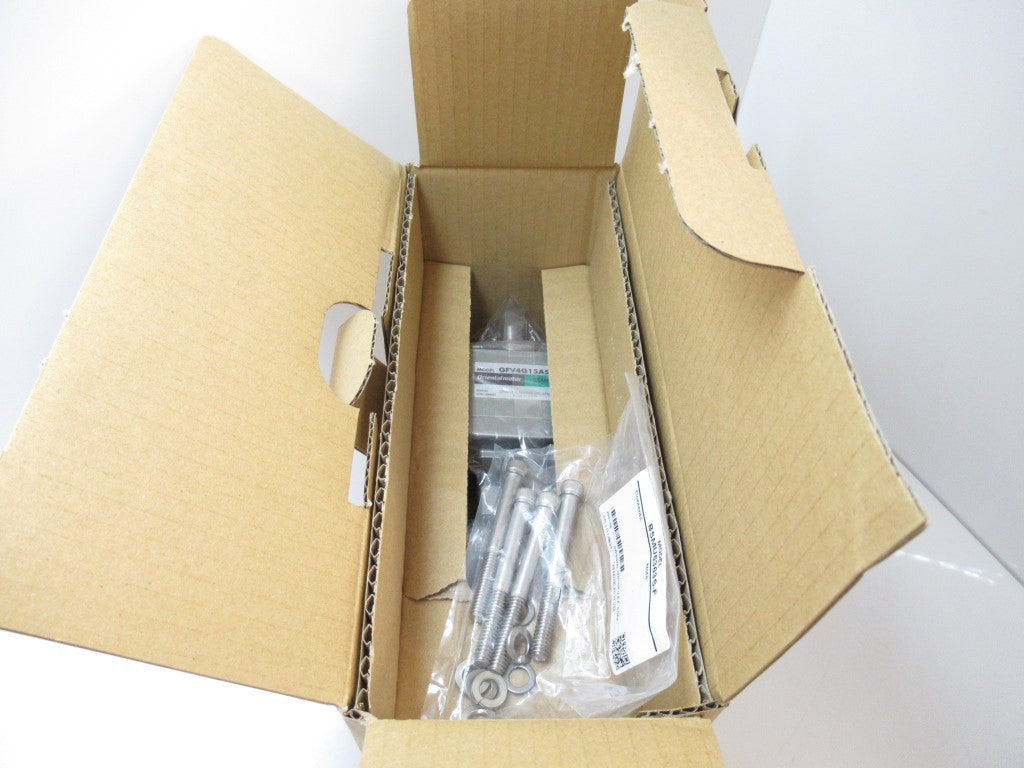

Included: BSMU6363S-F (Screw)

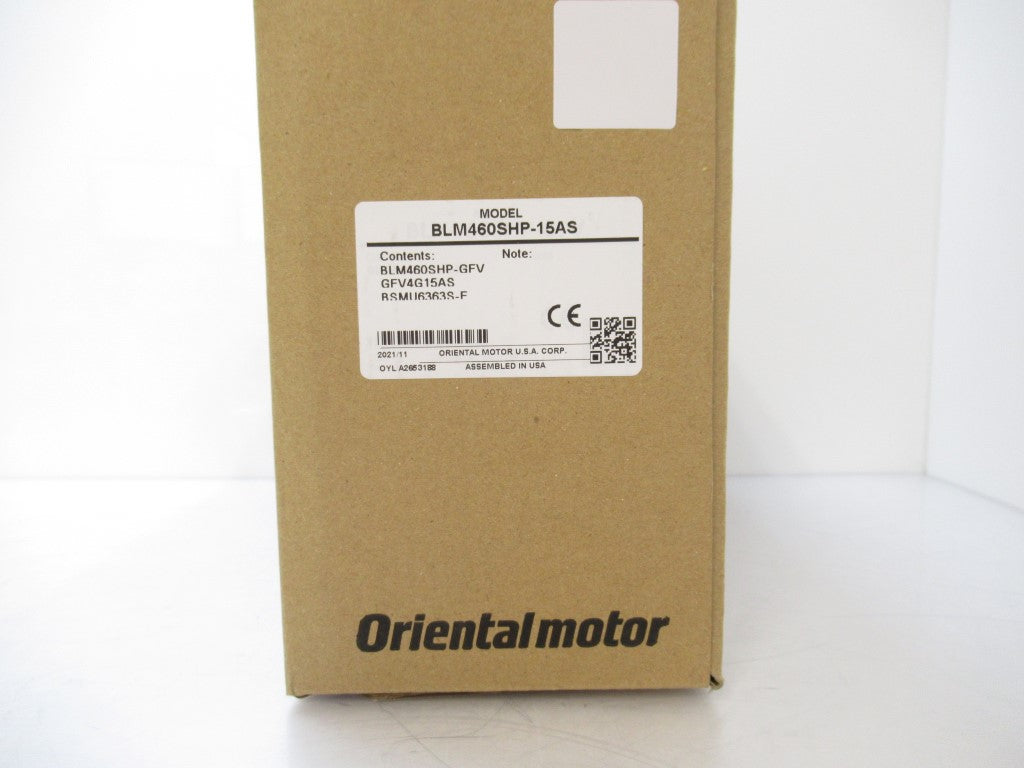

(New In Box)

The BLM Series Features A Compact, High-Power, And High-Efficiency Brushless DC Motor. The Entire Motor Structure Features Our Latest Brushless DC Motor Technology.


  • Motor Type: Brushless DC Motor
  • Motor Frame Size: 3,15"
  • Output Power: 60 W (1/12 HP)
  • Power Input: AC
  • Shaft/Gear Type: Parallel Shaft Gearhead
  • Gear Ratio (X:1): 15:1
  • Output Shaft Diameter: 5/8"
  • Rated Torque: 23 lb-in
  • Variable Speed Range (r/min): 5,3 ~ 267
  • Permissible Load Inertia: 1200 oz-in²; When Instantaneous Stop Or Instantaneous Bi-Directional Operation Is Performed = 270 oz-in²
  • Permissible Radial Load: 0.39 In. From Shaft End = 67 Lb; 0.79 In. From Shaft End = 78 Lb
  • Permissible Axial Load: 22 Lb

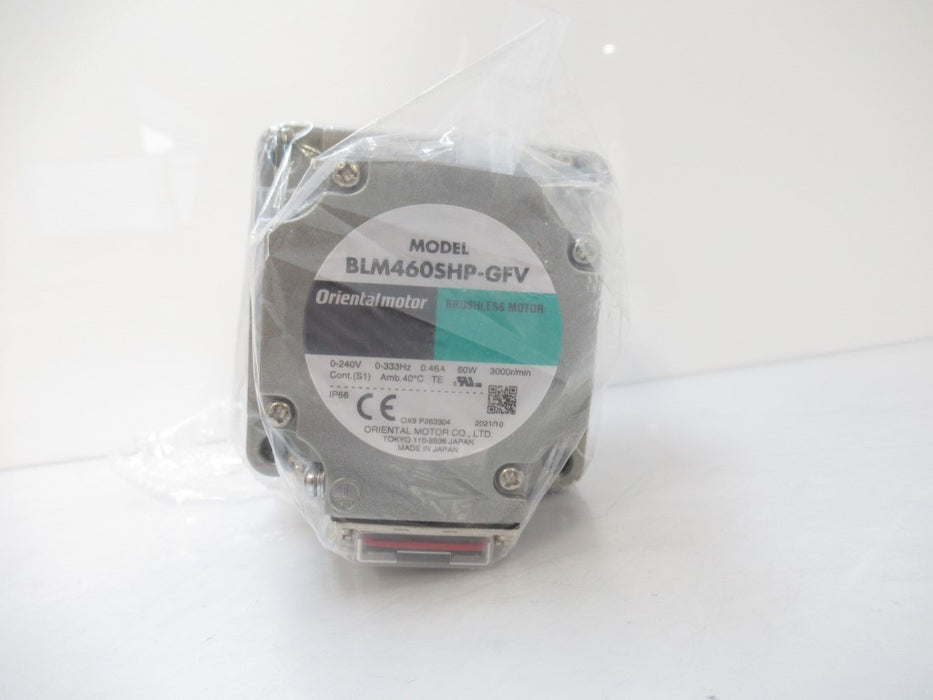

  • Components: BLM460SHP-GFV [Motor]; GFV4G15AS [gearhead]
  • Rohs Compliant: These Products Do Not Contain Substances That Exceed The Regulation Values In The Rohs Directive.
  • Safety Standards: UL, CSA, CE
  • CE Marking: Low Voltage Directives; EMC Directives
  • Insulation Resistance (Motor): 100 M Ω Or More When 500 VDC Megger Is Applied Between The Windings And The Case After Continuous Operation Under Normal Ambient Temperature And Humidity.
  • Dielectric Strength (Motor): Sufficient To Withstand 1.5 KVAC At 50 Hz Applied Between The Windings And The Case For 1 Minute After Continuous Operation Under Normal Ambient Temperature And Humidity.
  • Temperature Rise (Motor): The Temperature Rise Of The Windings Is 90°F (50°C) And That Of The Case Is 72°F (40°C) When Measured By The Thermocouple Method After Rated Continuous Operation Under Normal Ambient Temperature And Humidity.
  • Ambient Temperature Range: Motor: 32°F ~ 104°F (0°C ~ 40°C), Nonfreezing; Driver: 32°F ~ 122°F (0°c ~ 50°C)
  • Ambient Humidity: 85% Or Less, Noncondensing
  • Altitude: Up To 3300 FT (1000 M) Above Sea Level.
  • Operating Atmosphere: No Corrosive Gases Or Dust. Cannot Be Used In A Radioactive Area, Magnetic Field, Vacuum Or Other Special Environment.
  • Thermal Class: CSA Standards: 105 (A), En Standards: 120 (E) Ul
  • Degree Of Protection: Motor IP66
