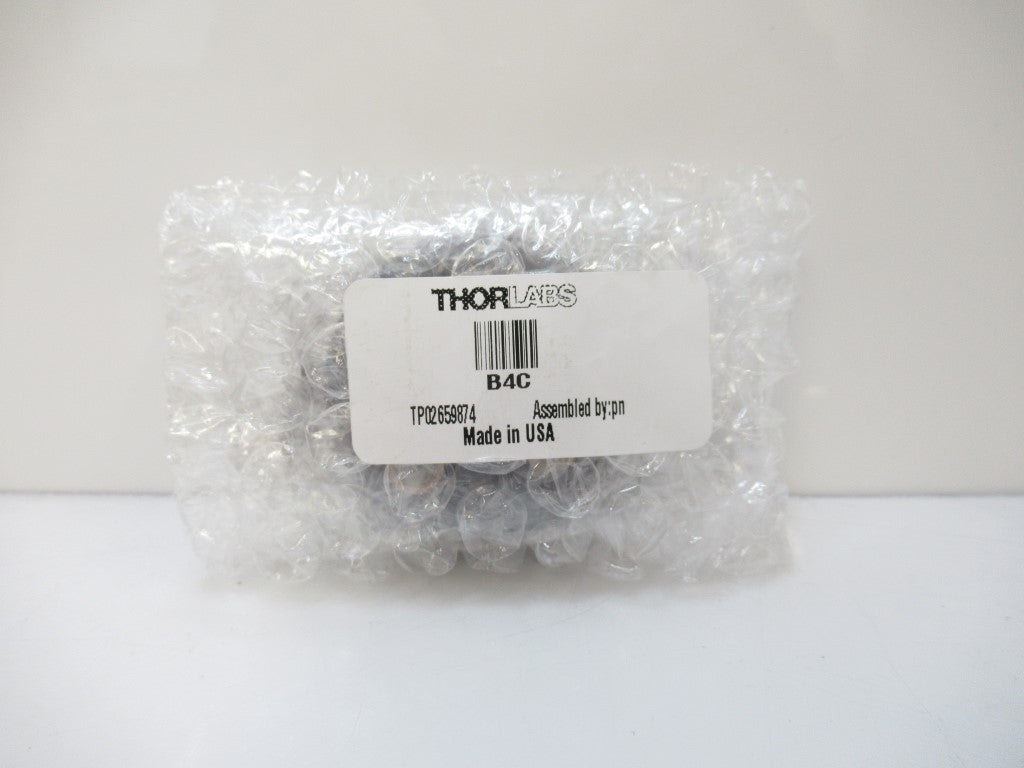

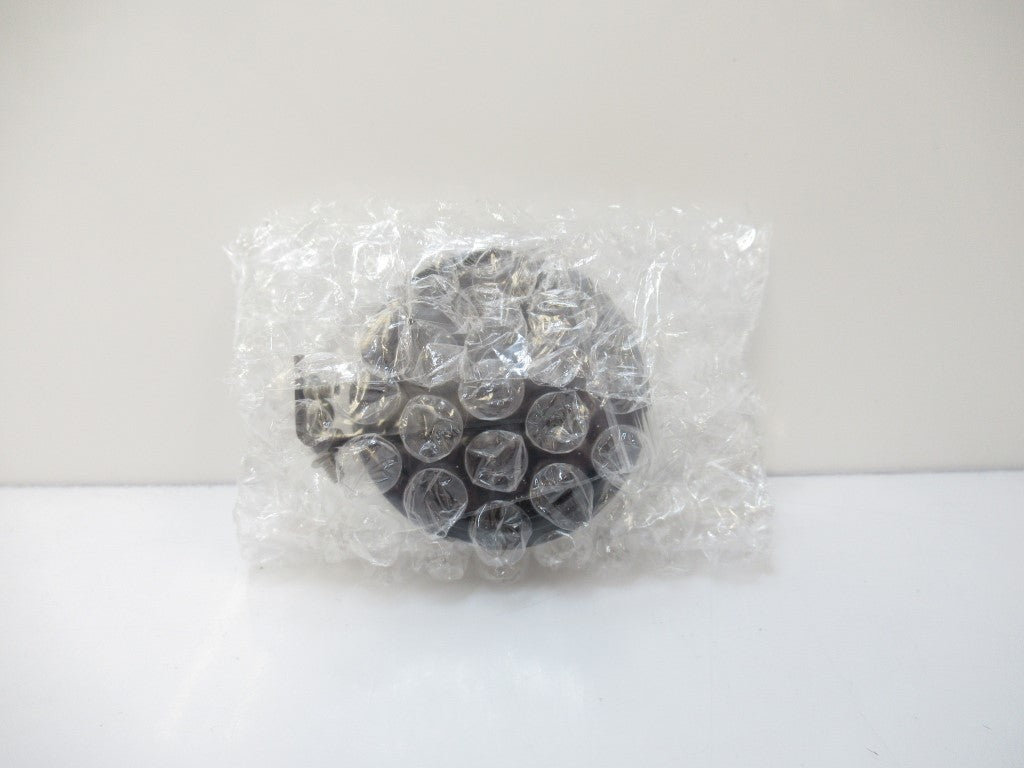

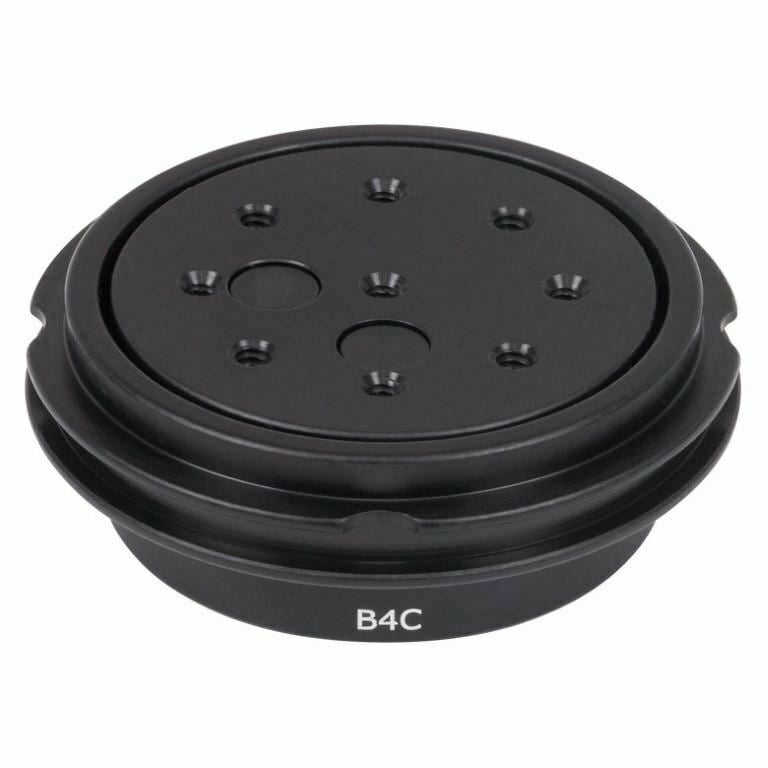

B4C Thorlabs, Kinematic Cage Cube Platform For C4W / C6W

SKU FAB01138-E
Original price $140.48 USD - Original price $140.48 USD
Original price
$140.48 USD
$140.48 USD - $140.48 USD
Current price $140.48 USD
Availability:
Only 2 left!

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Product Information

  • 30 mm-Cage-Cube-Compatible Platforms
  • Fixed Or Kinematic Options Available
  • Platforms Rotate To Nearly Any Angle
  • Weight: 0.17 lbs

The 30 mm Cage Cube Platforms Offered Here Are Designed To Hold Our 30 mm Cage Cube Optic Mounts.
These Platforms Are Ideal For Building Optical Setups Involving Prisms, Beamsplitters, And Other Optics That Are Compatible With Our 30 mm Cage System.
The Platforms Featured Here Can Be Mounted To Either The Top Or Bottom Of A 30 mm Cage Cube And May Also Be Post Mounted.
Before Locking The Platforms Onto A Cage Cube, They Can Be Rotated To Nearly Any Angle, Giving The User Control Over The Position Of The Optic Within A Cage Cube.
The B4C Platform Offers Additional Kinematic Translation Via Three Setscrews Located On The Bottom Of The Platform.

When Using These Platforms With A C6W Cage Cube, There Will Be Insufficient Clearance To Pass The Two Cage Rods Nearest The Platform All The Way Through The Cage Cube.
For The B3C And B4C Platforms, The C6WA Mounting Adapter Can Be Used To Provide Clearance For All Four Cage Rods Without Sacrificing Mounting Surface Area.
Alternatively, The Cage Rods Can Still Be Passed Through The Through Holes Opposite The Rotating Platform, Or The C6w Can Be Turned 90° With All Four Cage Rods Threaded Into The 4-40 Holes On Opposite Sides Of The C6W.
