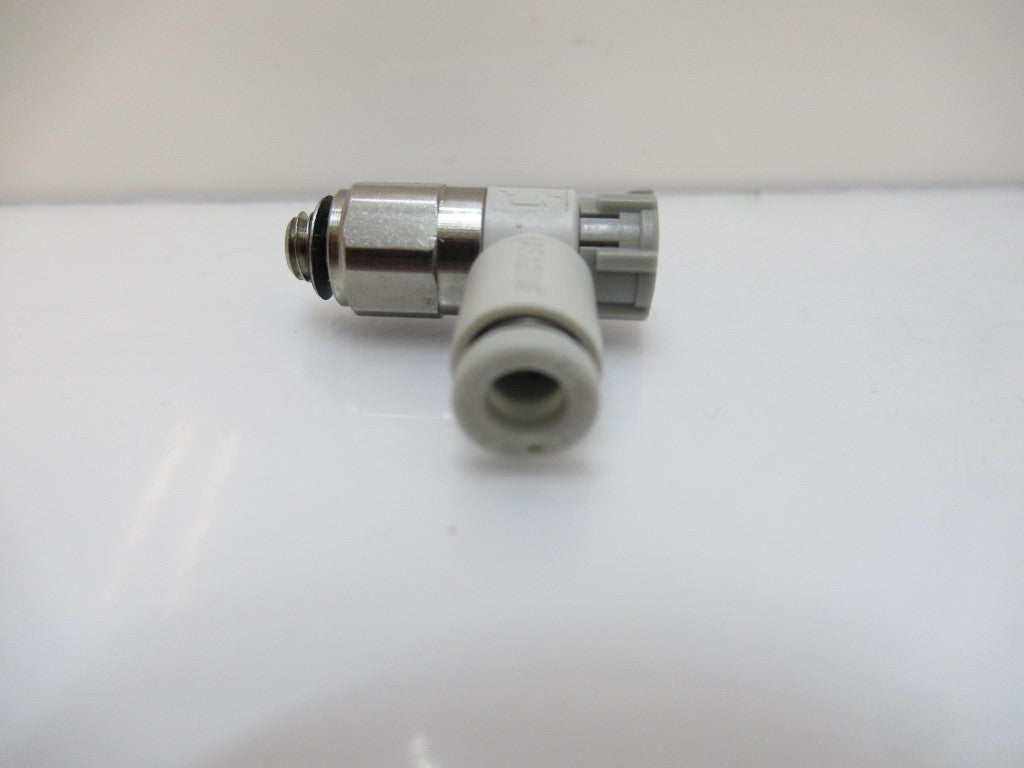

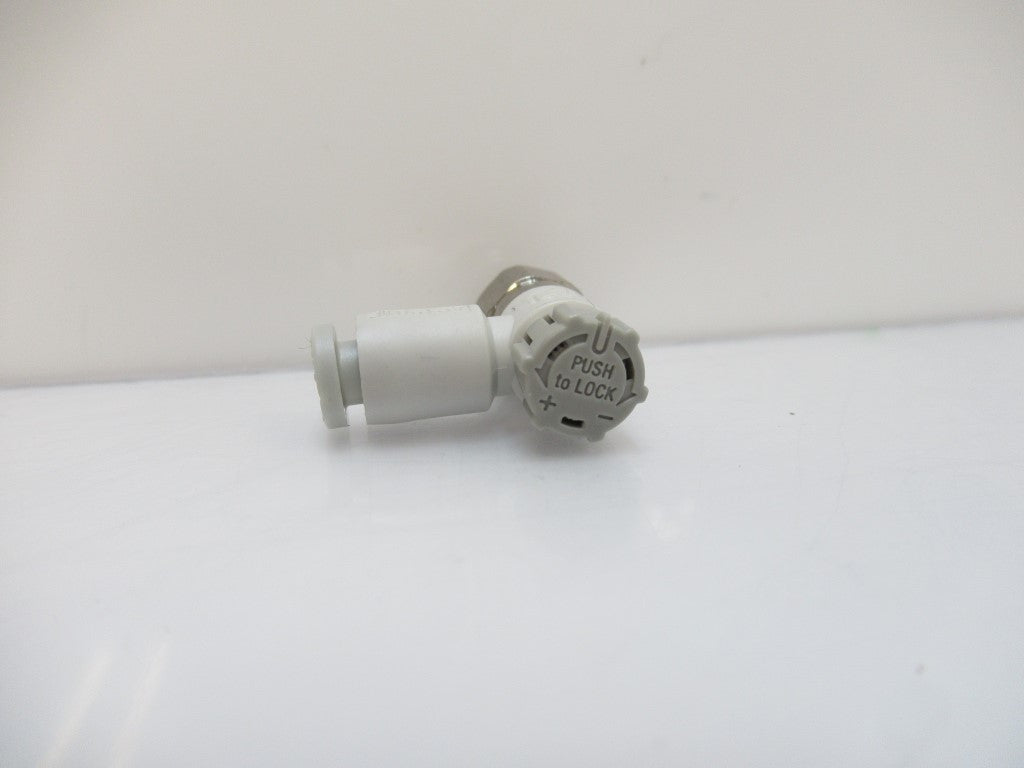

AS1201F-M5-04A SMC Speed Controller With One-Touch Fitting
Standard shipping
Estimated delivery time, 7-10 days
Standard shipping
Estimated delivery time, 7-10 days
AS1201F-M5-04A AS1201FM504A
SMC
Speed Controller With One-Touch Fitting, Push-Lock Type, Elbow Type / Universal Type, AS Series
(Sold By Unit New)
Features:
· Push-lock type improves needle-lock operation.
· Larger knob.
· Improved tube insertion and removal.
· Max. 30% (8 N) reduction in insertion force.
· Max. 20% (5 N) reduction in removal force. *Tube pulling-out strength is ensured to be equivalent to the current model.
· Electroless nickel plating specification as standard.
· Allows 360° piping swivel (universal type).
Configured Specifications
Type | Speed Controller | Body Material | [Resin] PBT |
---|---|---|---|
Control Direction | Meter-Out | Main Body Shape | [Elbows] Cylinder direct-connected elbow type |
Environment, Applications | Standard | Thread Portion Material | [303/304 Stainless Steel] Stainless steel 304 |
Knob Type | Push Lock Type | Joint Type | Male thread + One-Touch Couplings |
Connection Dia. | 5 × 0.8 | Types of Screw | M |
Applicable Tube O.D. mm(mm) | 4 | Applicable Tube O.D. inch size(inch) | - |
