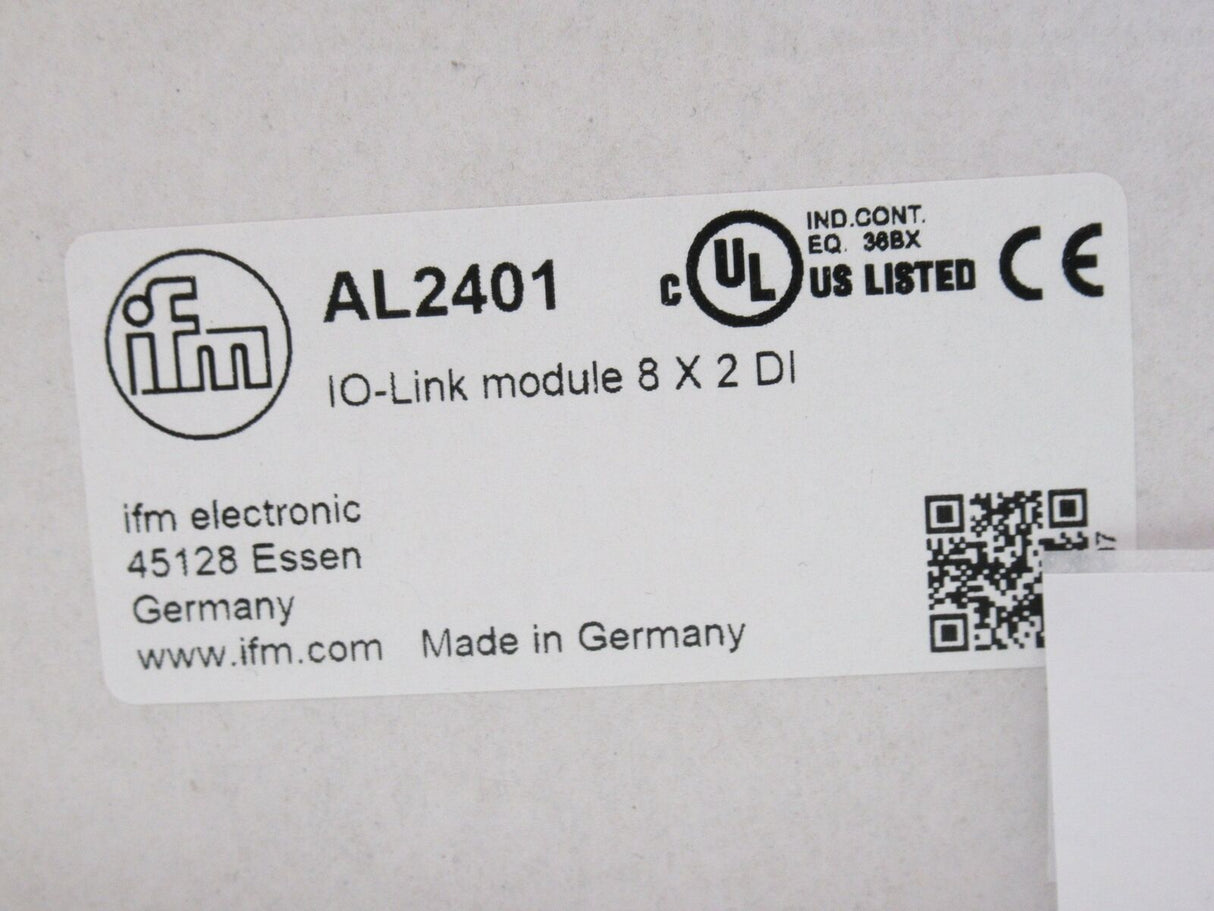

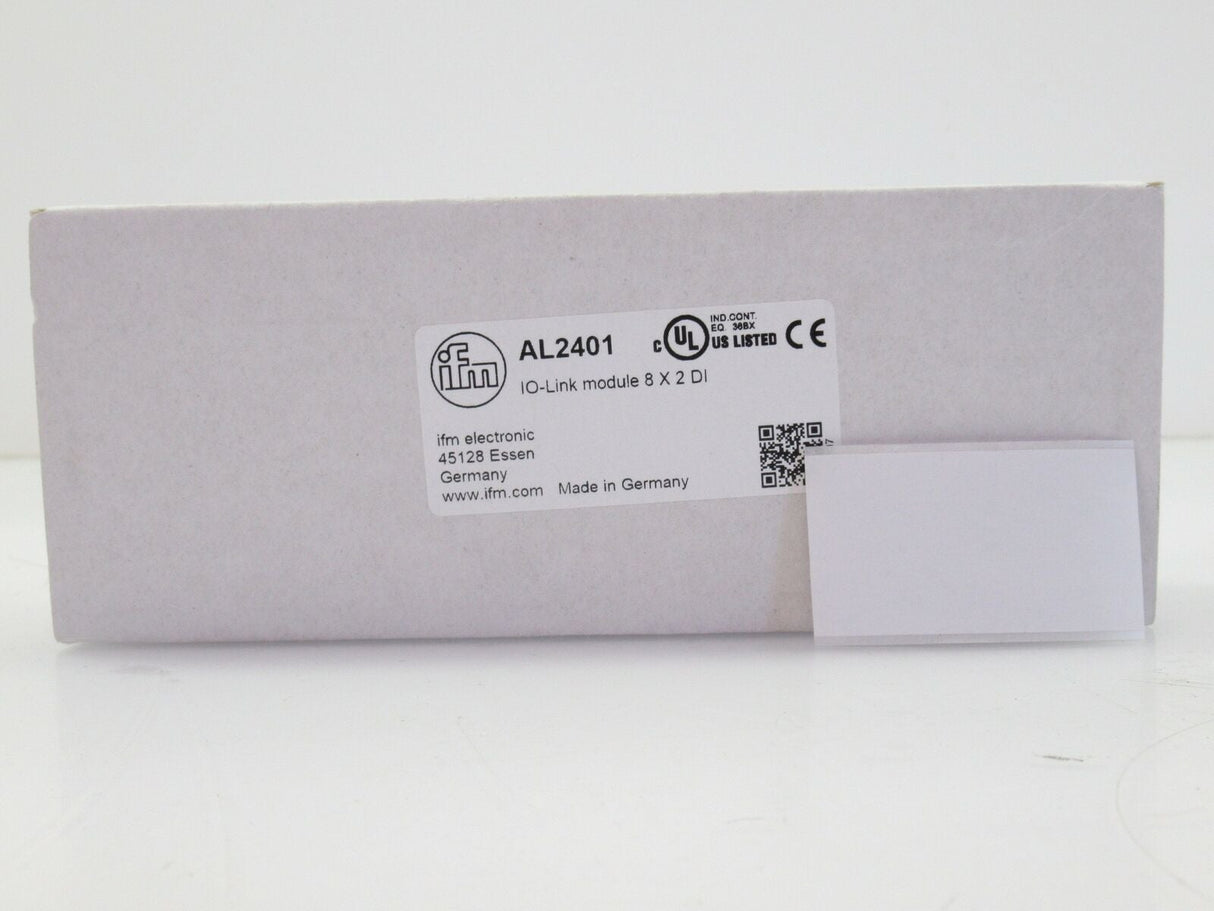

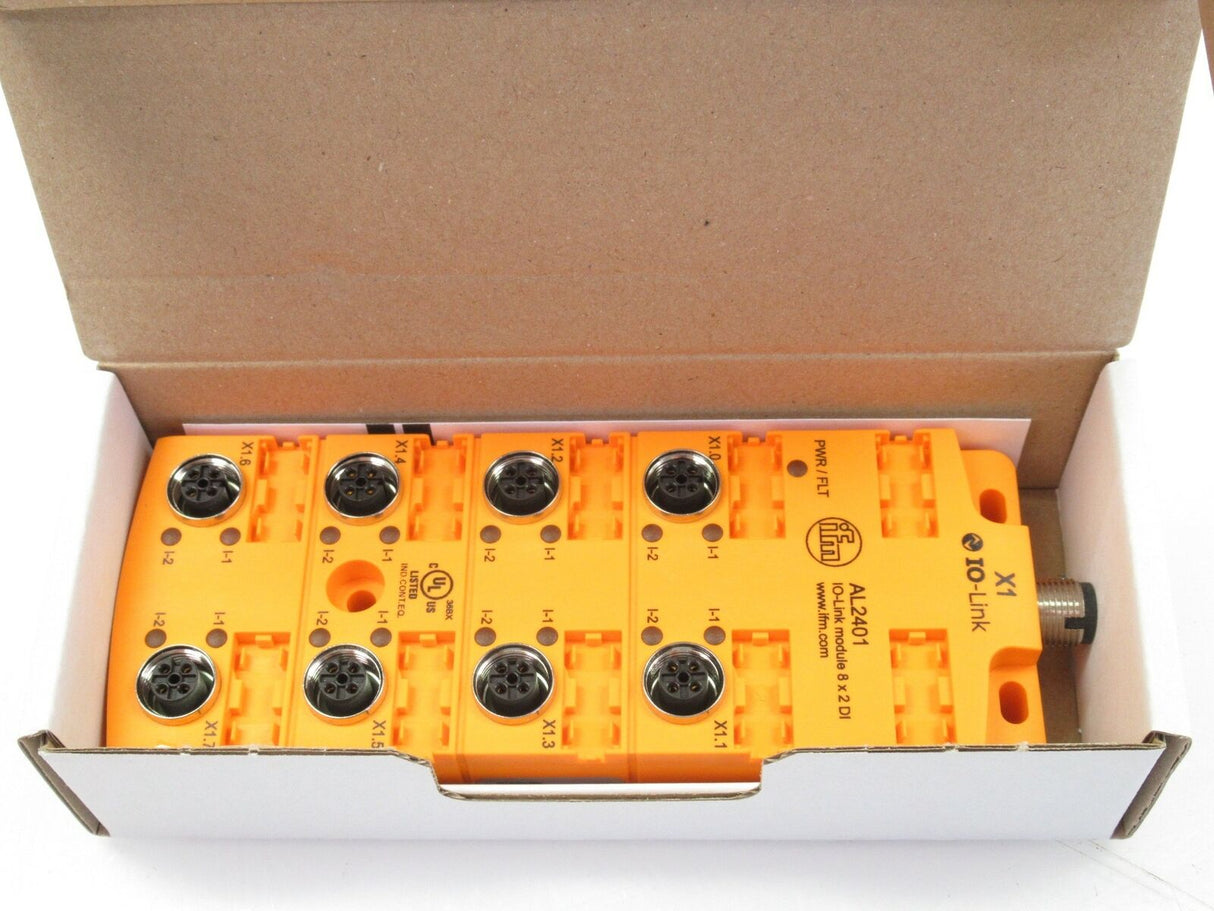

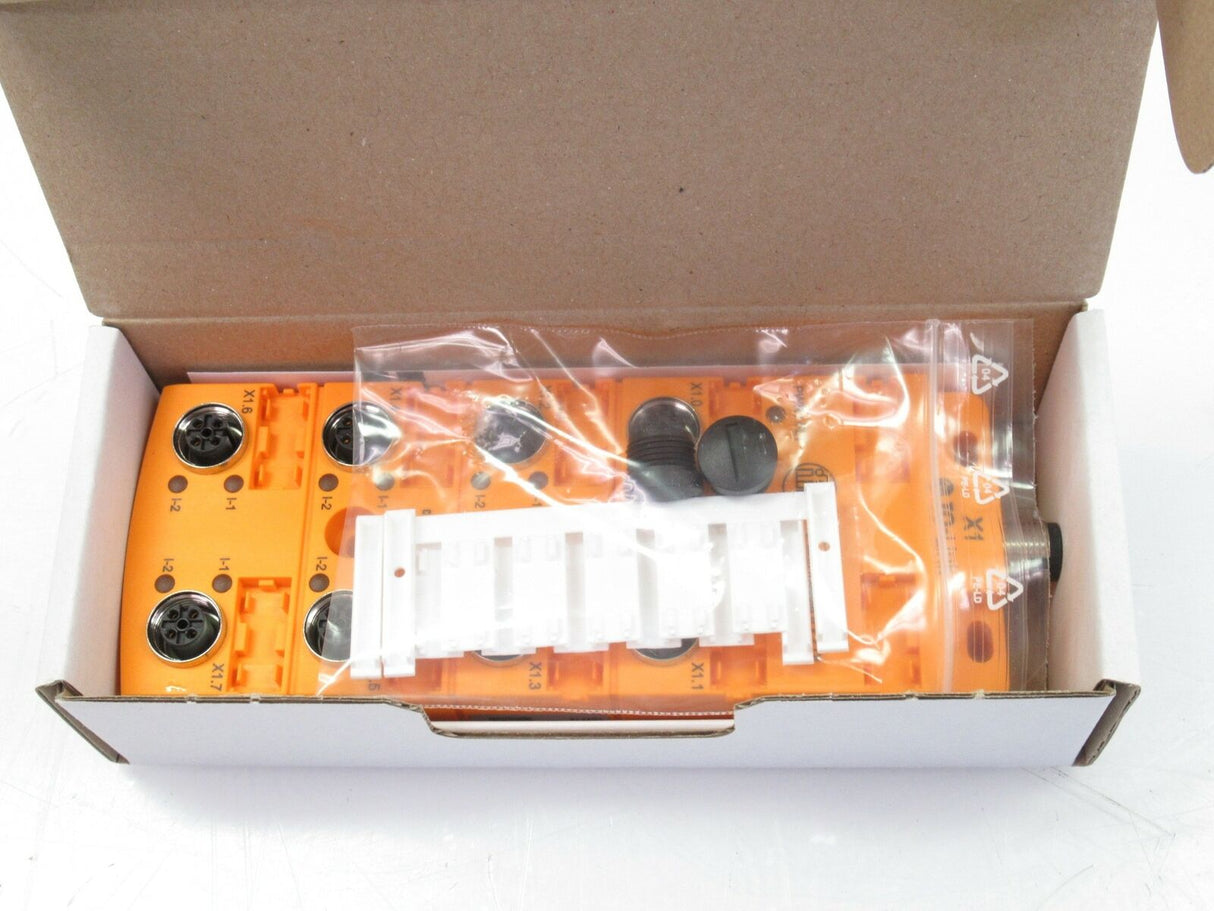

AL2401 Ifm Electronic IO-Link CompactLine Module 8 x 2 DI

Product Information

Electrical Data

• Operating Voltage [V]: 18...30 DC; ("Supply Class 2" To cULus)
• Current Consumption [mA]: < 50

Sensor Supply US

• Current Rating Per Port [A]: 0.1

Inputs

• Number Of Digital Inputs: 16; (8 x 2)
• Input Circuit Of Digital Inputs: PNP
• Sensor Supply Of The Inputs: IO-Link
• Input Current Limitation [mA]: 15
• Input Current High [mA]: 6...10
• Input Current Low [mA]: 0...2
• Min. Switching Level High Signal [V]: 11
• Digital Inputs Protected Against Short Circuits: yes

Interfaces

• Communication Interface: IO-Link
• Supported DeviceIDs: Type Of Operation, DeviceID; Default: 555

Mechanical Data

• Weight [g]: 382.5
• Materials: PA; Socket: Brass Nickel-Plated; O-Ring: FKM
• Sealing material: FKM

Electrical Connection - IO-Link

• Connector: M12
