Ferraz Shawmut | SKU: 10X BRE-0322-E | Barcode: DOES NOT APPLY

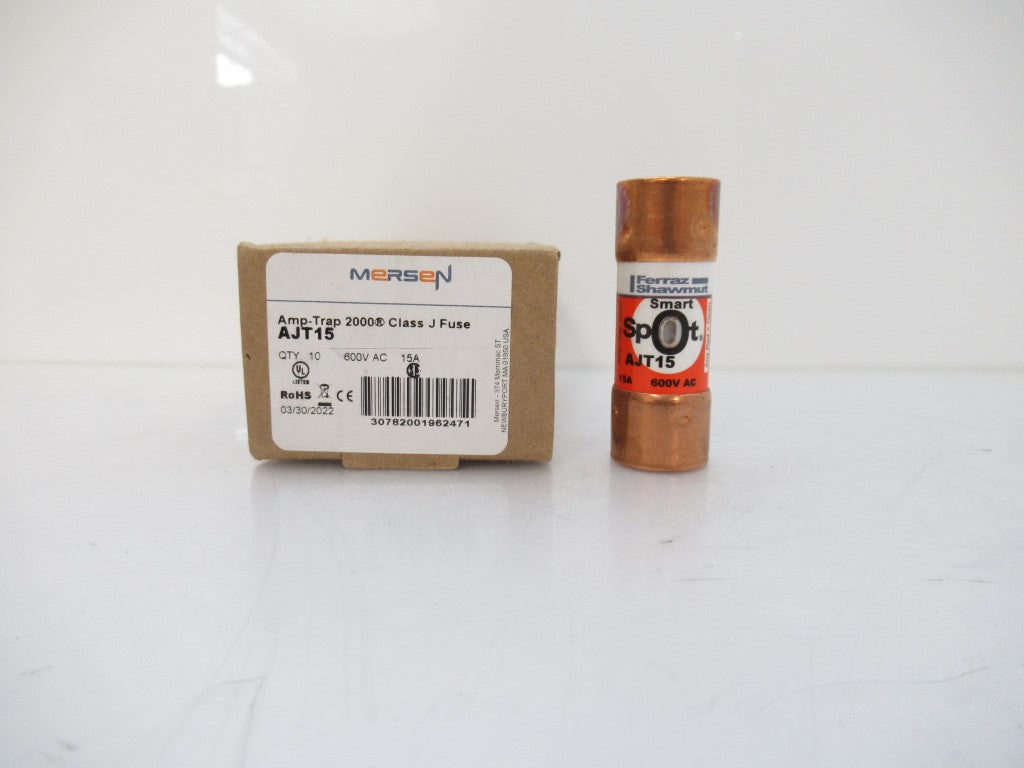

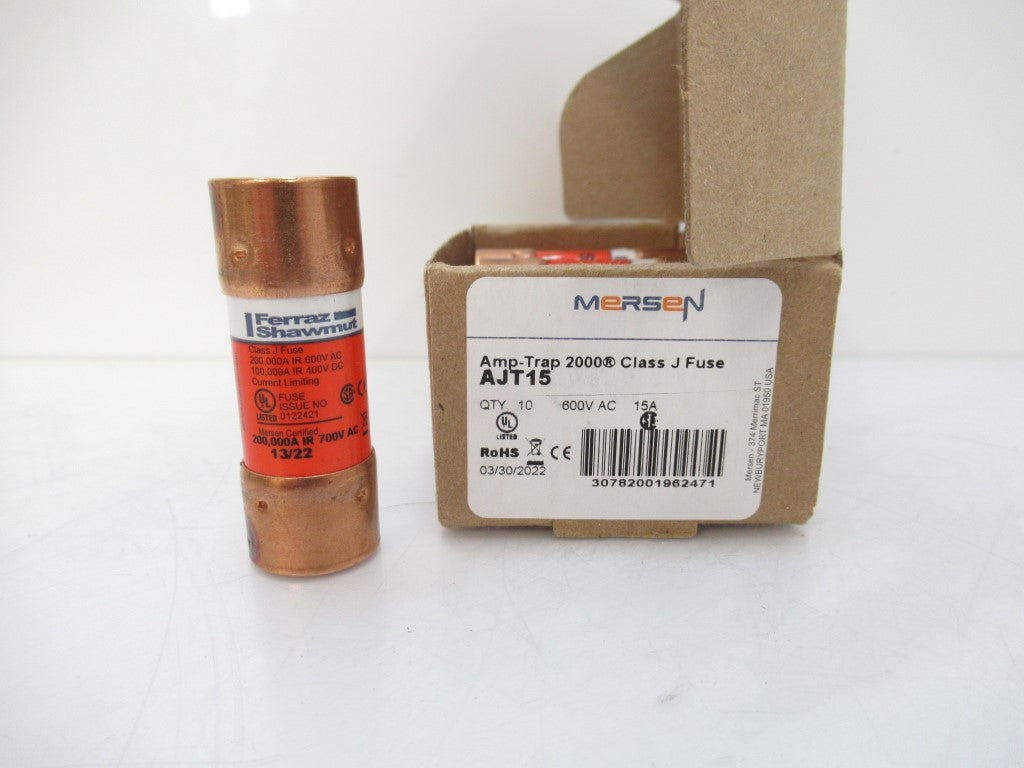

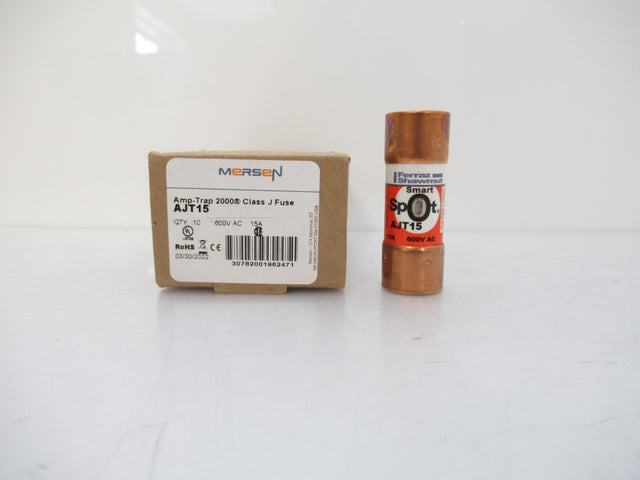

AJT15 Mersen Fuse Amp-Trap 2000 15 Amps 600V AC Time-Delay Class J

$43.75 USD

Shipping calculated at checkout.

As a Canadian company, any product manufactured in China and imported into the United States will be subject to a 175% tariff.

🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

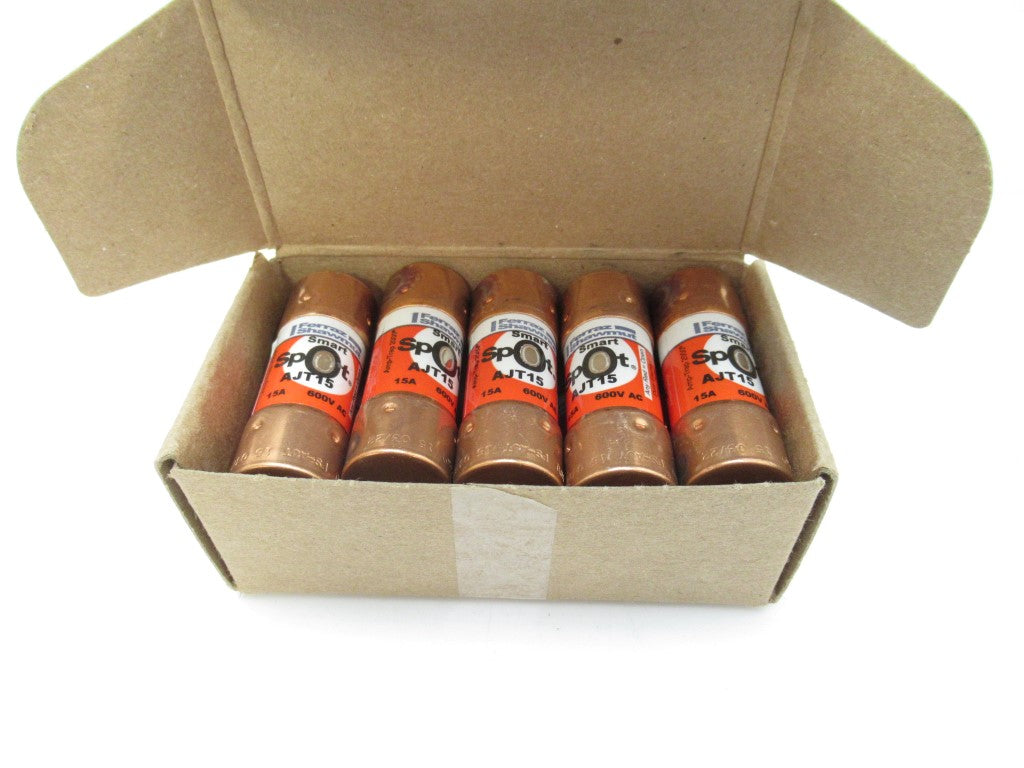

Sold Per Pack Of 10

Description

Sub Brand: Amp-Trap 2000
Item Name: Fuse
Type: Time Delay
Series: AJT
Voltage Rating: 600V AC, 500V DC
Amperage Rating: 15 A
Interrupt Rating: 200 kA At 600V AC, 100 kA At 500V DC
Fuse Class: Class J
Body Style: Cylindrical, Non-Rejection
Mounting Type: Clip
Terminal Connection: Ferrule
Element Type: Dual
Indication: SmartSpot Visual Open Fuse
Contact Material: Tin-Plated Copper
Construction: Melamine
Dimensions: 13/16 in Dia x 2-1/4 in L
For Use With: Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heating And General Loads, Transformers, Control Panels, Circuit
Breaker Back-Up, Bus Duct, Load Centers
Standards: UL Listed, CSA Certified, RoHS Compliant, IEC 60269-2-1
Application: For Handling Typical Motor And Transformer Inrush Currents, While Also Providing Superior Current-Limiting Ability
UPC: 30782001962471
