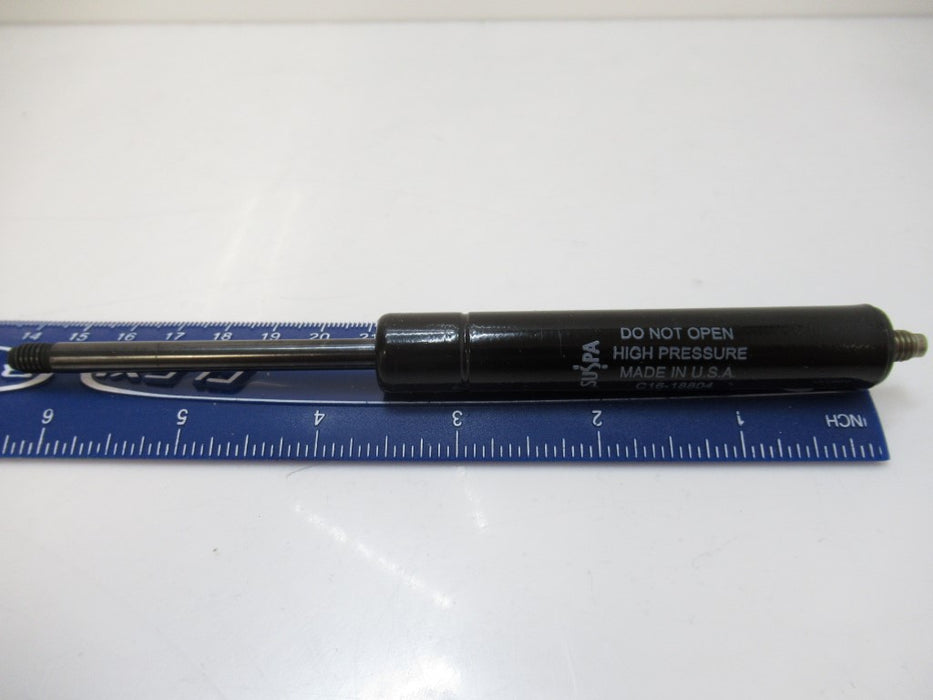

Suspa C16-18804 Spring 5.9" Extended Lengt Extension Force 80 lbs

SKU SPG-0151-80-E
Original price $40.00 USD - Original price $40.00 USD
Original price
$40.00 USD
$40.00 USD - $40.00 USD
Current price $40.00 USD
Availability:
16 in stock, ready to be shipped

Standard shipping

Estimated delivery time, 7-10 days

Specifications
Request a quote

Product Information

Sold By Unit

C1618804

Extended Length 5.9"
Compressed Length 3.54"
Stroke Length 2.36"
Compression Force 108 lbs.
Mounting Orientation Horizontal, Vertical with Rod Down
Maximum Cycles per Minute 6
Maximum Cycles 25,000
Force Mechanism Compressed Nitrogen Gas and Oil
Refillable No
Lockable No
Body Diameter 0.59"
Body Finish Steel
Seal Material Rubber
Rod
Diameter 0.23"
Thread Size M6
Thread Pitch 1 mm
Material Steel
End Thread Size M6
End Thread Pitch 1 mm
Temperature Range -22° to 176° F
Extension Force 80 lbs.
RoHS RoHS 3 (2015/863/EU) compliant with exemptions 6(a)-I, 6(b)-II, and 6(c) - Lead as an alloying element in steel and aluminum and in copper alloy
REACH Not Compliant
DFARS Specialty Metals COTS-Exempt
Country of Origin United States
Shipping Regulated by the U.S. Department of Transportation
