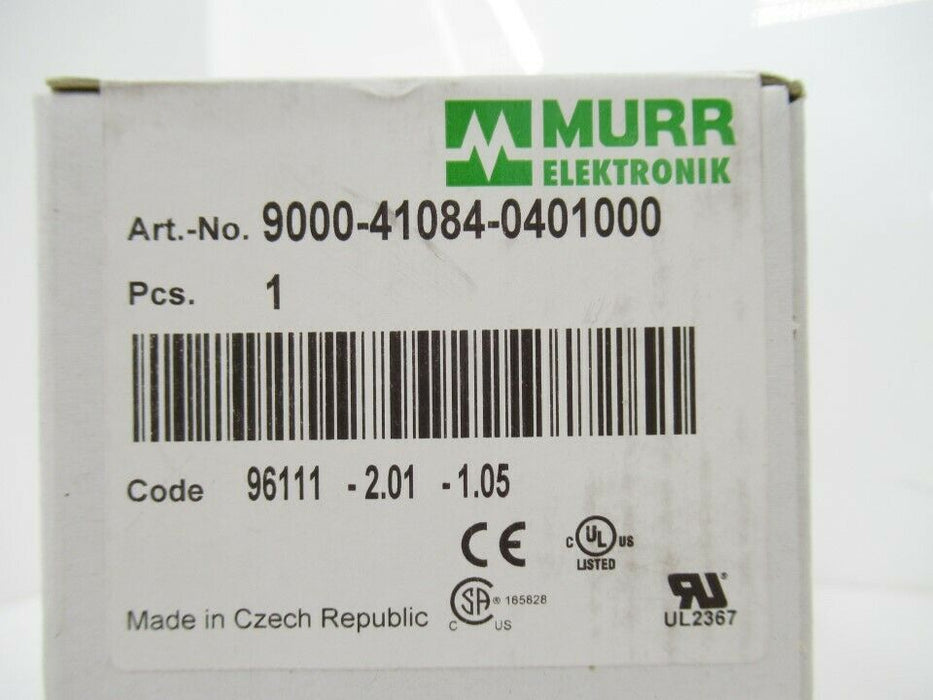

9000-41084-0401000 MurrElektronik MICO+ Electronic Circuit Protection

9000-41084-0401000 9000410840401000

MurrElektronik

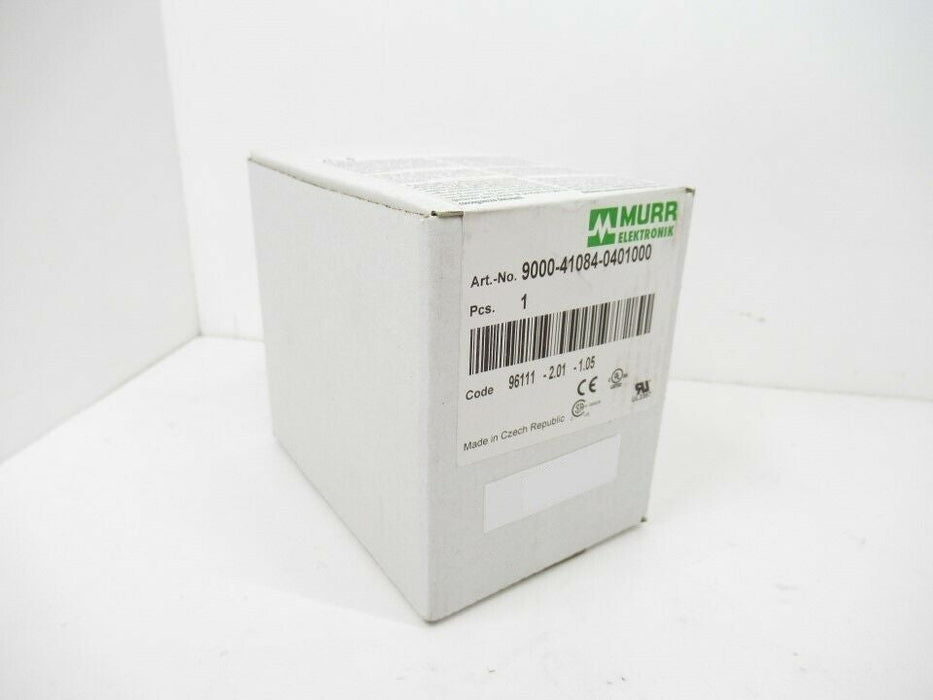

(New In Box)

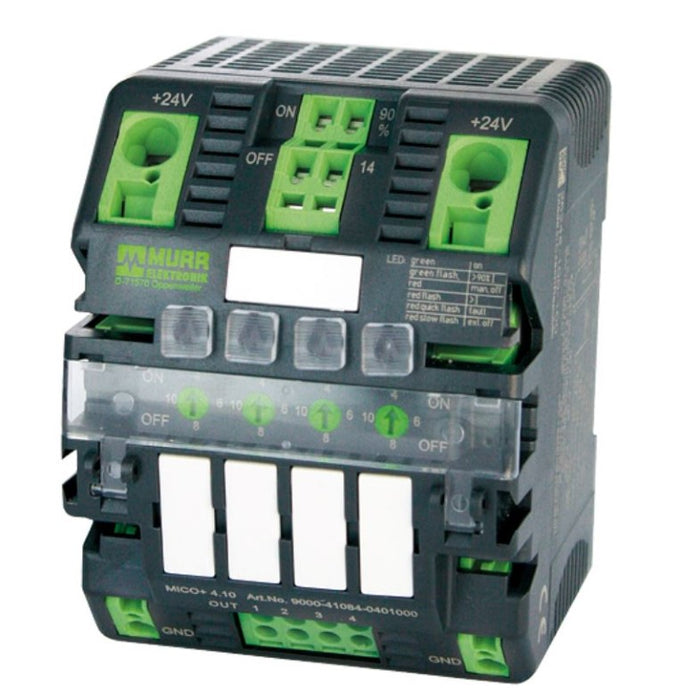

MICO+ 4.10 Electronic Circuit Protection, 4 Channels

IN: 24 V DC / OUT: 24 V DC / Current Adjustment 4, 6, 8, 10 A

Description

General Data

• Connection: Spring Clamp Terminals
• Input Terminals: 2× 16 mm²
• Output Terminals: Per Output 2× 1.5 mm²
• Alarm Terminals: 2.5 mm²
• Bridging Concept: Two Sides, With Spring Clamp Terminals Or Bridge Set (Max. 40 A)
• Mounting Method: DIN-Rail Mountable TH35 (En 60715)
• Dimensions HxWxD: 90×70×80 mm
• Temperature Range: 0...+55 °c (Storage Temperature -40...+80 °c)

Output

• Current Adjustment: 4 A, 6 A, 8 A, 10 A, By Countersinked Rotary Switch, Sealed
• Inrush Capacity: Max. 20 mF (Per Channel)

Input

• Operating Voltage: 24 V DC (18...30 V DC)

Control Inputs

• Input Voltage (On): 10...30 V DC
• Remote Start (Off): 10...30 V DC
• Impulse Length (On): Min. 20 ms

Control Outputs

• Group Alarm Output: Max. 20 mA; High: All Channels On; Low: Not All Channels On
• Early Warning (90%): Max. 20 mA; High: One Channel Over 90%; Low: All Channels Under 90%
