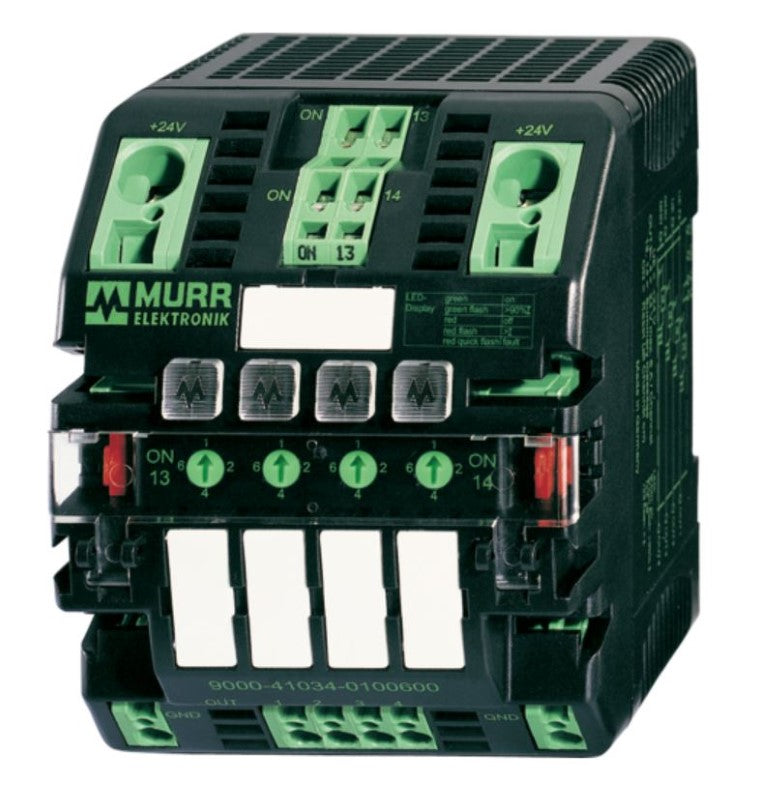

9000-41034-0401000 Murrelektronik MICO 4.10 Protection Circuit

$141.00 USD
FACTORY SUPPLY BRAND NEW
SKU BRE-0301-E1
UPC: DOES NOT APPLY
Only 1 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

Product Information

  • MICO 4.10
  • 4 channels
  • Mounting method: DIN-rail mountable TH35 (EN 60715)
  • Temperature range: 0...+55 °C (storage temperature -40...+80 °C)
  • Connection: Spring clamp terminals

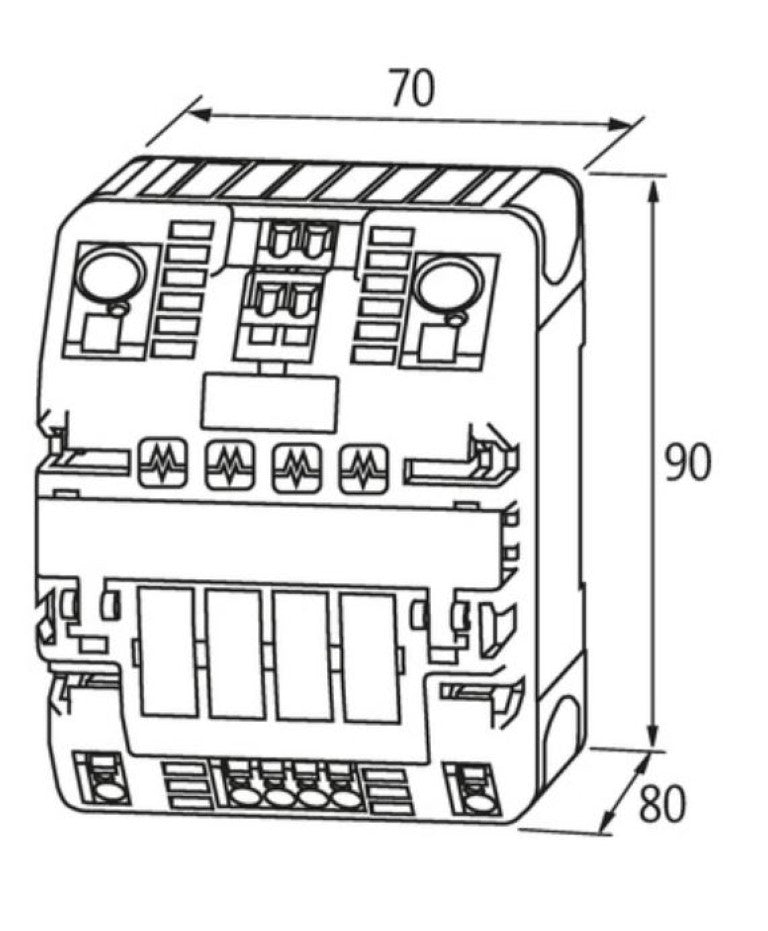

  • Dimensions H×W×D: 90×70×80 mm
  • Bridging concept: two sides, with spring clamp terminals or bridge set (max. 40 A)
  • Output terminals: per output 1× 4 mm²
  • Input terminals: 2× 16 mm²
  • Alarm terminals: 2.5 mm²
  • Inrush capacity: max. 20 mF (per channel)
  • Current adjustment: 4 A, 6 A, 8 A, 10 A, by countersinked rotary switch, sealed
  • Operating voltage: 24 V DC (18...30 V DC)
  • Input voltage (ON): 10...30 V DC
  • Impulse length (ON): min. 20 ms
  • Group alarm output: potential free 30 V AC/DC, 100 mA
