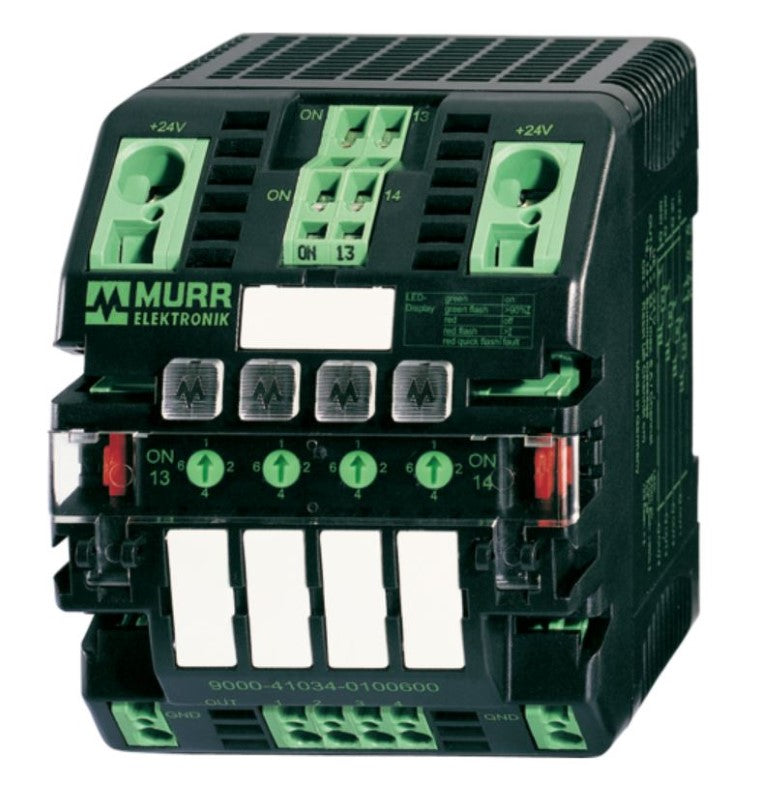

Murrelektronik 9000-41034-0401000 MICO 4.10 Protection Circuit

SKU BRE-0301-E
Original price $100.46 USD - Original price $100.46 USD
Original price
$100.46 USD
$100.46 USD - $100.46 USD
Current price $100.46 USD
Availability:
Only 4 left!

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Product Information

  • 9000410340401000
  • MICO 4.10
  • 4 channels
  • Mounting method: DIN-rail mountable TH35 (EN 60715)
  • Temperature range: 0...+55 °C (storage temperature -40...+80 °C)
  • Connection: Spring clamp terminals

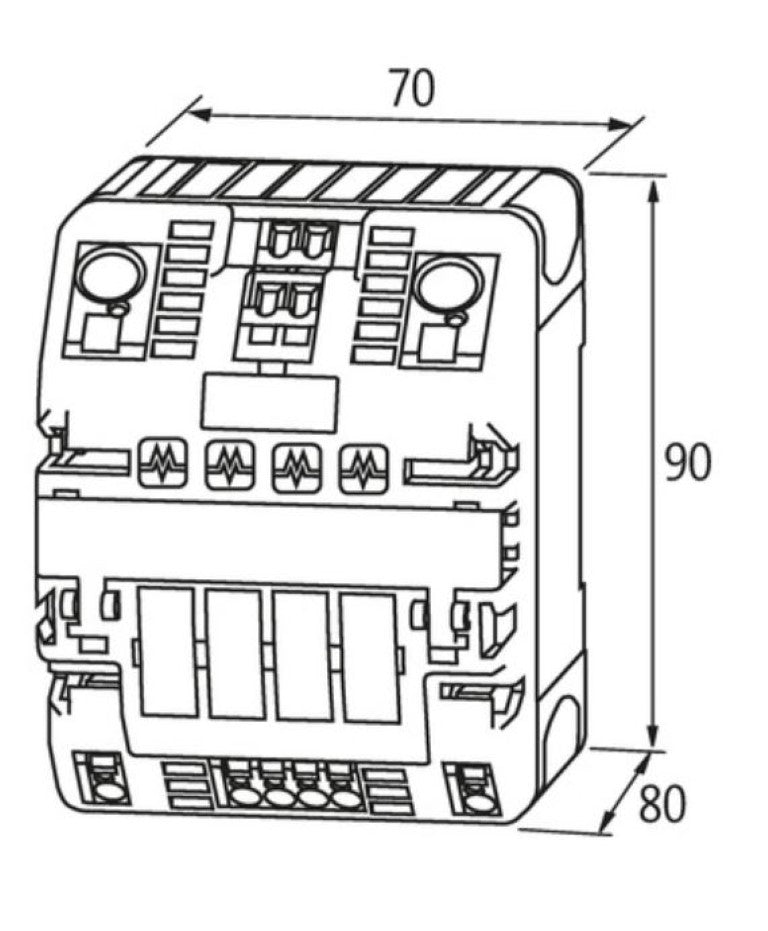

  • Dimensions H×W×D: 90×70×80 mm
  • Bridging concept: two sides, with spring clamp terminals or bridge set (max. 40 A)
  • Output terminals: per output 1× 4 mm²
  • Input terminals: 2× 16 mm²
  • Alarm terminals: 2.5 mm²
  • Inrush capacity: max. 20 mF (per channel)
  • Current adjustment: 4 A, 6 A, 8 A, 10 A, by countersinked rotary switch, sealed
  • Operating voltage: 24 V DC (18...30 V DC)
  • Input voltage (ON): 10...30 V DC
  • Impulse length (ON): min. 20 ms
  • Group alarm output: potential free 30 V AC/DC, 100 mA
