8EI4X5HWT10.0600-1 B&R Acopos P3 Servo Drive, 3x 200-480V AC

SKU DRV-1127-U
Sold out
Original price $4,500.00 USD - Original price $4,500.00 USD
Original price
$4,500.00 USD
$4,500.00 USD - $4,500.00 USD
Current price $4,500.00 USD
Availability:
Out of stock

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by B&R

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

This Product Has Been Installed And Project Canceled, And Finally Never Served. Less Than 10 Hours Of Operation.

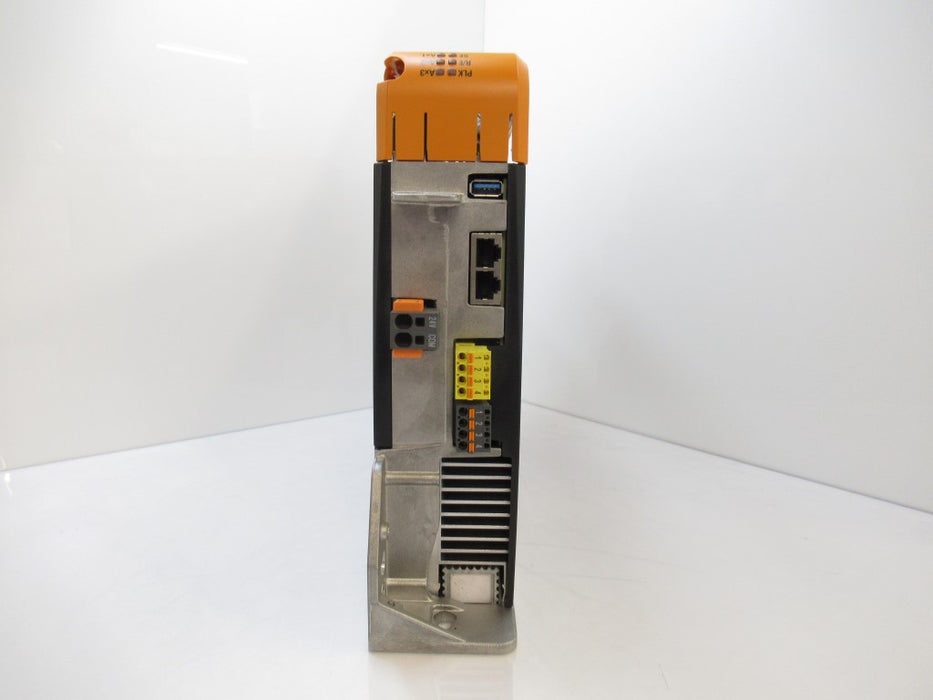

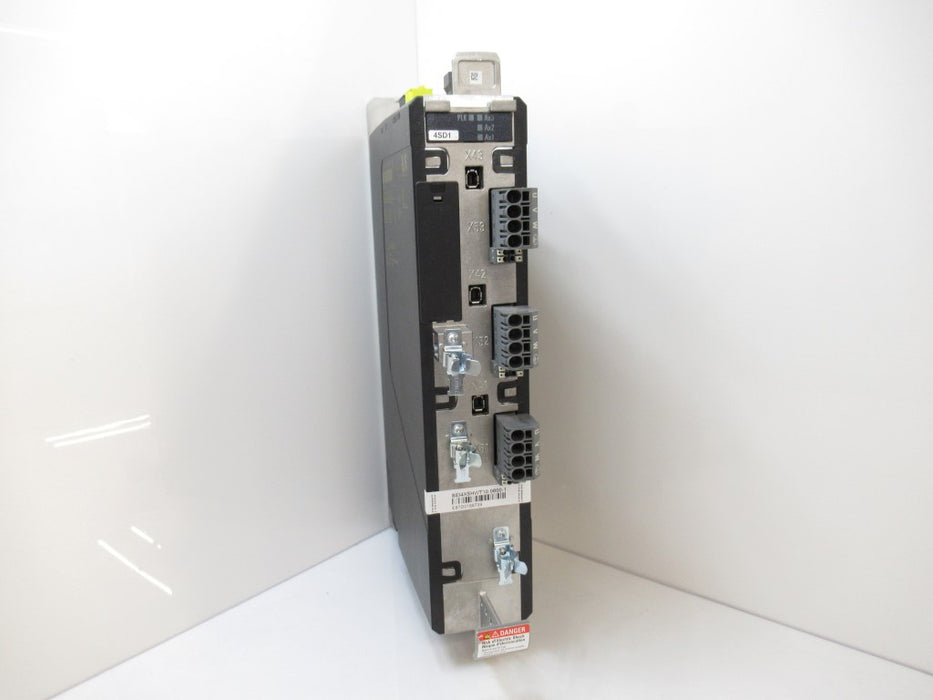

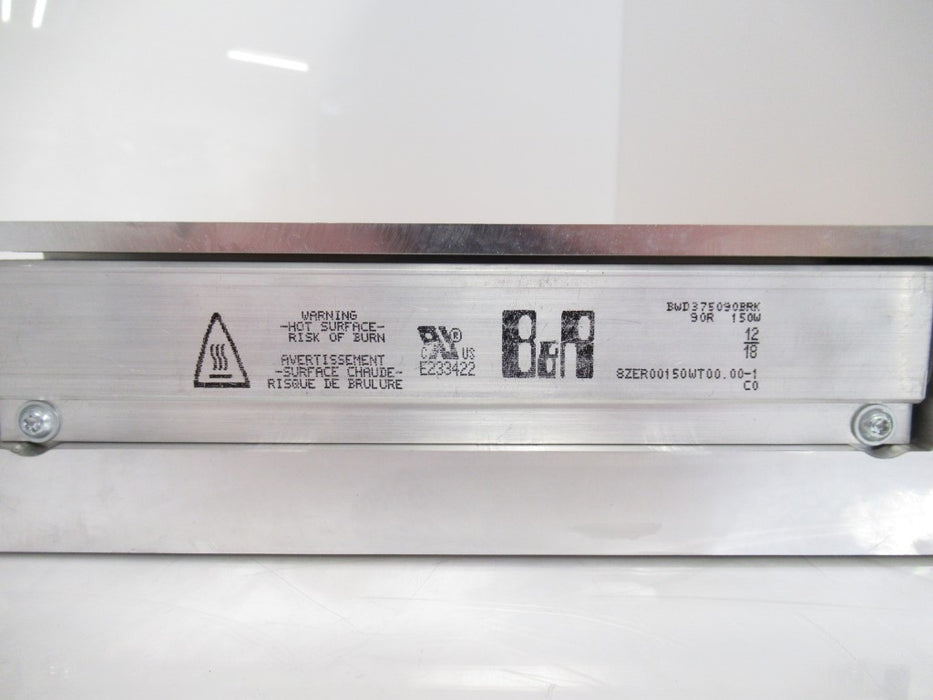

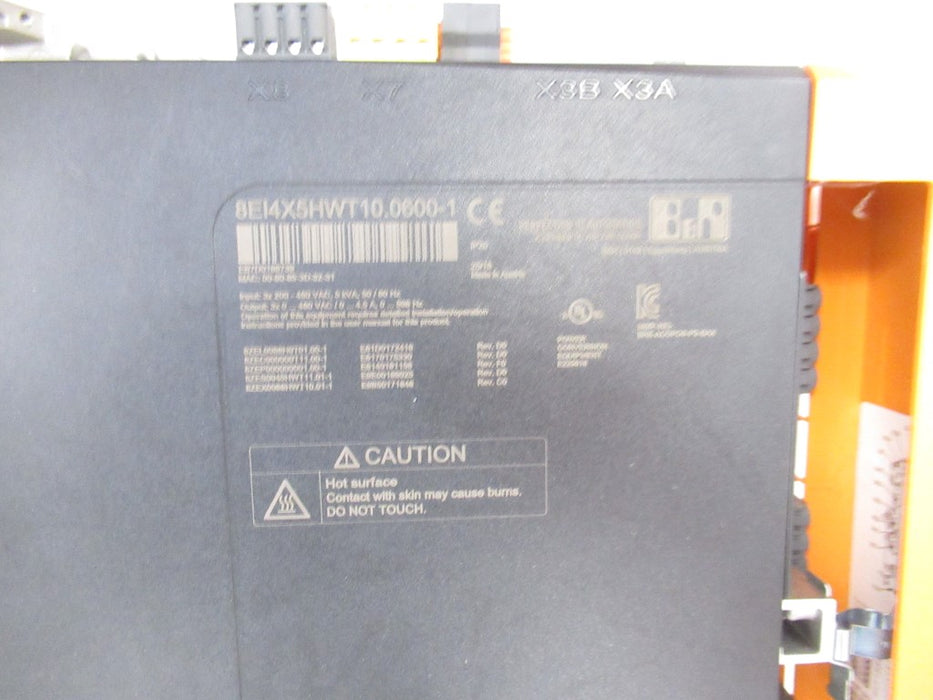

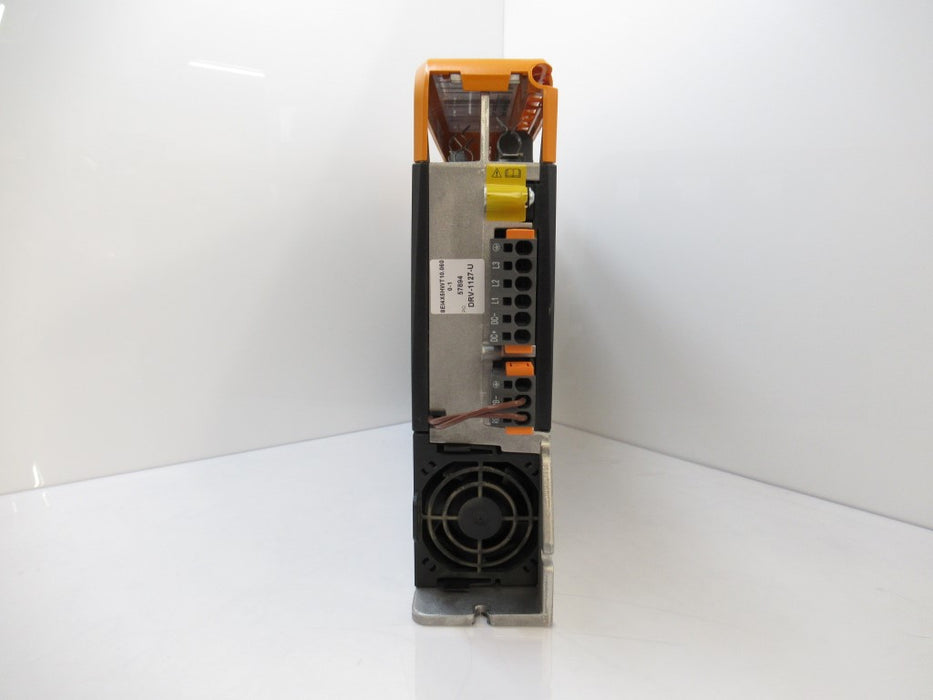

  • Acopos P3 Servo Drive, 1 Digital Multi-Standard Encoder Interface Per Axis, 3x 200-480V AC, 4.5 A, 3 Axes, Wall Mounting, 1-Row Connector Set, Cover, Integrated Braking Resistor

Product Information

  • Network Configurations: TN-S, TN-C-S With Grounded Neutral
  • Mains Input Voltage: 3x 200V AC To 480V AC ±10%
  • Frequency: 50 / 60 Hz ±4%
  • Installed Load: Max. 10 kVA
  • Inrush Current: Max. 45 A
  • Switch-On Interval: Typ. 60 s
  • Integrated Line Filter Per EN 61800-3, Category C3: No
  • DC Bus Capacitance: 470 µF
  • Input voltage: 24 VDC ±25%
  • Input Capacitance: 5507 µF
  • Current consumption: 1.2 A + Current For Motor Holding Brake
