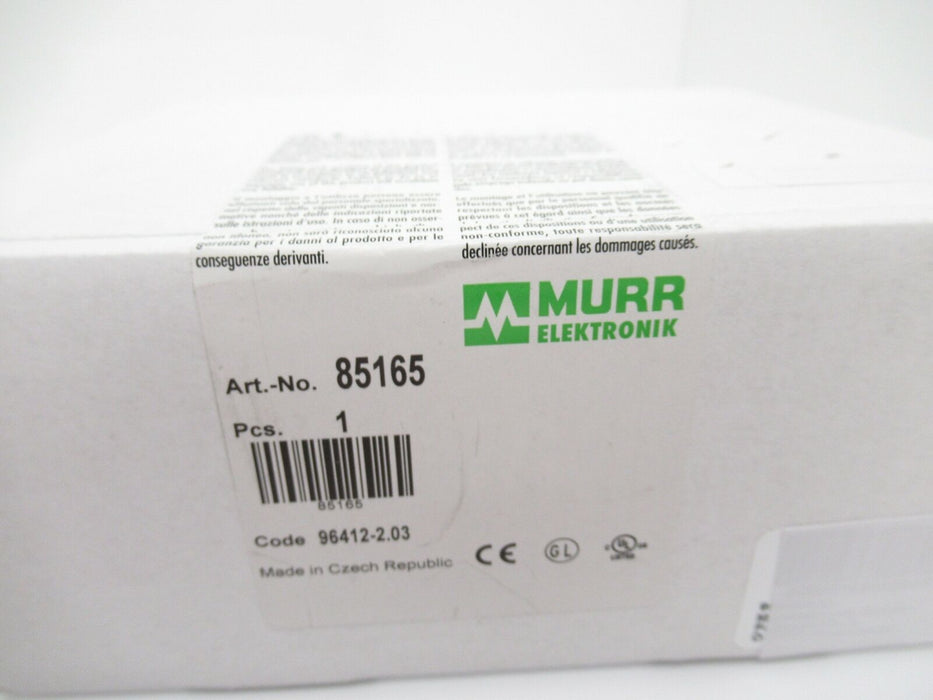

Murrelektronik 85165 MCS-B Power Supply Single Phase 10A

Product Information

INPUT

• Input Voltage:  100...265 V AC
• Input Current:  3.4 A (115 V AC); 2.2 A (230 V AC)
• Inrush Current After 1 ms:  Max. 40 A
• Primary Fusing External:  Max. 16 A
• Frequency:  50...60 Hz

GENERAL DATA

• Standards:  EN 60950-1, EN 61204-3, EN 55011 A
• Relative Humidity:  5...95%, No Condensation
• Efficiency:  83% (115 V AC); 85% (230 V AC)
• Mounting Method:  DIN-Rail Mountable TH35 (EN 60715)
• Dimensions H × W × D:  128×68×165 mm
• Temperature Range:  -25...+40 °C, ...+50 °C Derating (Storage Temperature -25...+85 °C)

OUTPUT

• Output Voltage:  24 V DC (SELV), ±1%; 22...28 V Adjustable
• Output Current:  10 A (+40 °C); 8 A (+55 °C)
• Mains Failure Bridging Time:  Min. 15 ms (115 V AC); Min. 115 ms (230 V AC)
• Ripple:  Max. 20 mVrms
• Spikes:  Max. 100 mV P-P
• Unit Protection: Short-Circuit And Overload Protected
• LED Display:  LED (green) For Output Voltage
• Parallel Usage/Serial Usage: Max. 5 Units/Max. 2 Units
