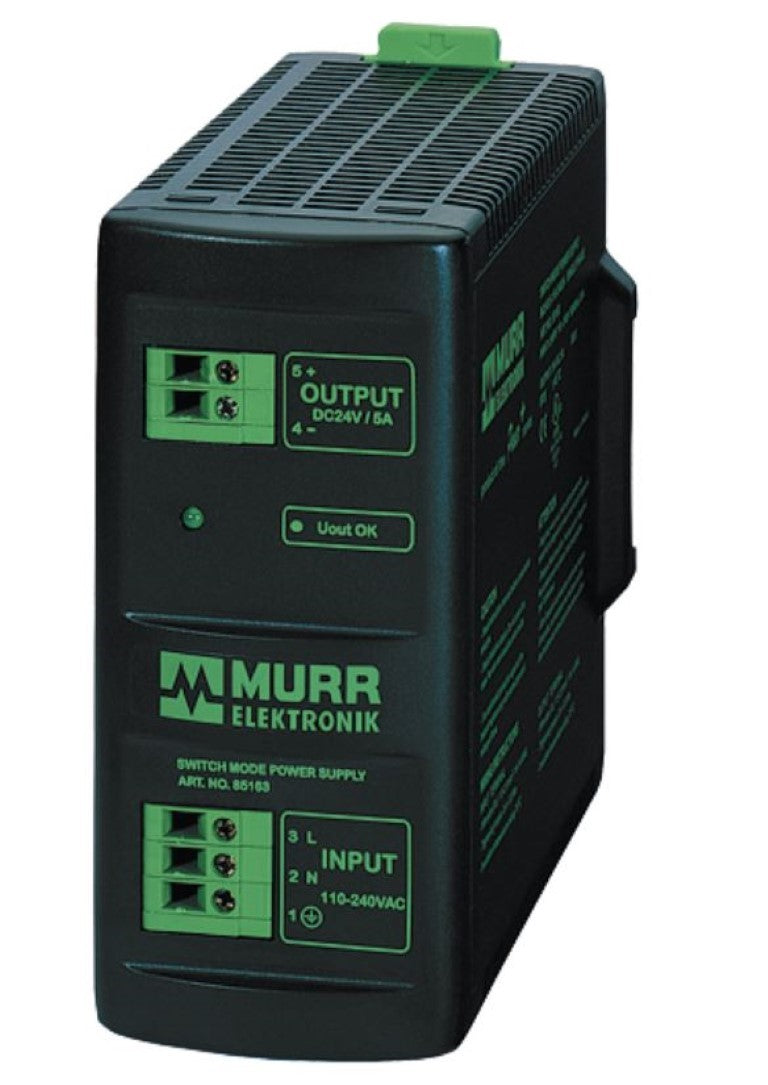

Murrelektronik 85163 MCS-B Power Supply 1-Phase
Product Information
| Standards | IEC 61010-2-201, EN 61204-3, EN 55011 A |
|---|---|
| Relative humidity | 5...95%, no condensation |
| Efficiency | 86% (115 V AC); 87% (230 V AC) |
| Mounting method | DIN-rail mountable TH35 (EN 60715) |
| Dimensions H×W×D | 115×62×125 mm |
| Temperature range | -25...+40 °C, ...+50 °C derating (storage temperature -25...+85 °C) |
| Output voltage | 24 V DC (SELV), ±1%; 22...28 V adjustable |
|---|---|
| Output current | 5 A (+40 °C); 4 A (+55 °C) |
| Mains failure bridging time | min. 10 ms (110 V AC); min. 80 ms (230 V AC) |
| Ripple | max. 20 mV eff/rms |
| Spikes | max. 100 mV ss/pp |
| Unit protection | short-circuit and overload protected |
| LED display | LED (green) for output voltage |
| Parallel usage/serial usage | max. 5 units/max. 2 units |
| Input voltage | 100...265 V AC |
|---|---|
| Input current | 2 A (110 V AC); 1.16 A (230 V AC) |
| Inrush current after 1 ms | max. 30 A |
| Primary fusing external | max. 10 A |
| Frequency | 50...60 Hz |
