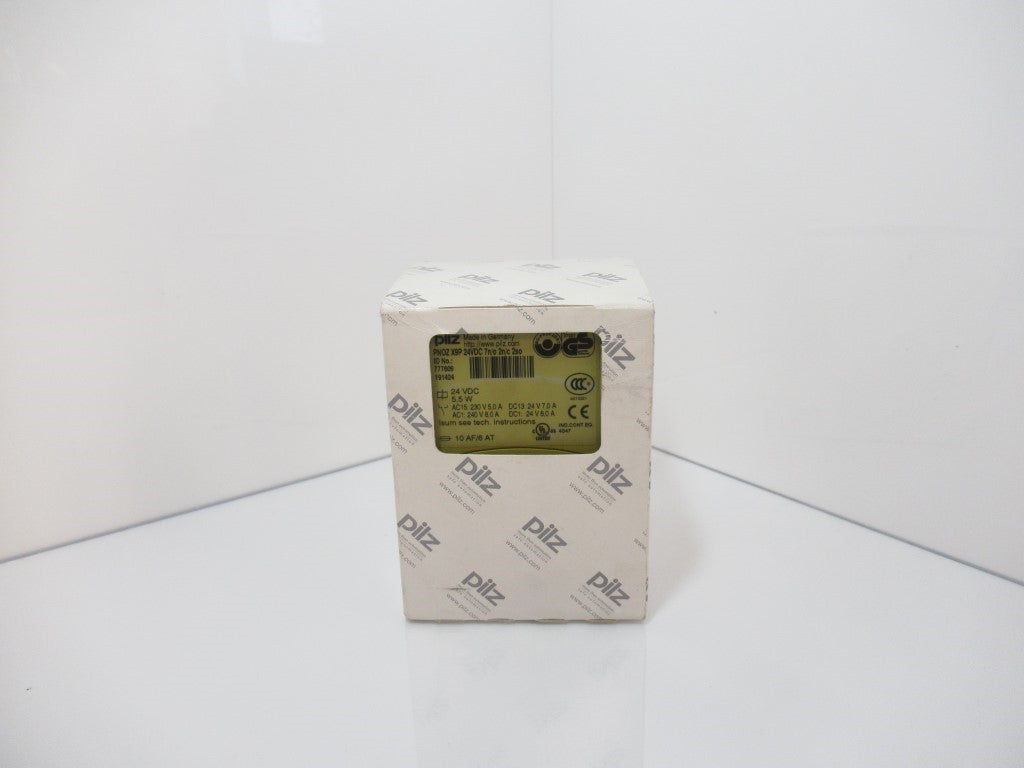

777609 PNOZ X9P PILZ Safety Relay Safety Relay

by PILZ
$844.07 USD
FACTORY SUPPLY BRAND NEW
SKU SAF-0295-E
UPC: 777609
Only 1 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

777609 PNOZ X9P

PILZ Safety Relay 24VDC 7n/o 2n/c 2so

Safety Relays PNOZ X Monitor Functions Such As E-STOPs, Safety Gates, Light Grids And Light Curtains. One PNOZ Safety Relay Is Used Per Safety Function.

Safety Relay (Standalone) Inputs: 1-/2-Channel Wiring With/Without Detection Of Shorts Across Contacts Outputs: 7 N/O, 2 N/C, 2 Semiconductor. Automatic/Monitored Start UB 24 V DC, Width: 90 mm, Plug-In Terminals Of Screw Type Monitoring E-Stop, Safety Gates.

Technical Details

Certifications: CE, cULus Listed, EAC (Eurasian), TÜV, CCC

Application Options: Instantaneous E-Stop Monitoring, Limit Switch, Light Beam Device Mon. Type 2 With t/p, Light Beam Device Mon. Type 2 w/o t/p, Light Beam Device Mon. Type 4, Safety Gate Monitor

Operating Modes: Single-Channel, Automatic Reset, Dual-Channel, Manual Reset, Detection Of Shorts Across Contacts, Monitored Manual Reset, Without Detection Of Shorts Across Contacts

Product Standard: EN 60947-5-1

Standards: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1

Supply Voltage (V): 24,0

Supply Voltage Type: DC

Terminal Style: Plug-In

Terminal Type: Screw Terminal

Number Of Instantaneous Safety Contacts: 7

Number Of Delayed Safety Contacts: 0

Number Of Auxiliary Contacts: 2

Number Of Semiconductor Outputs: 2

Stop Category: 0

Max. Current At DC13 I (6 Cycles/Min): 7.0 A

Max. Current At AC15: 5.0 A

Width Dimension: 90.0 mm

Height Dimension: 94.0 mm

Depth Dimension: 121.0 mm

Gross Weight: 575 G

Net Weight: 570 G

Ambient Temperature: -10 - 55 °c
