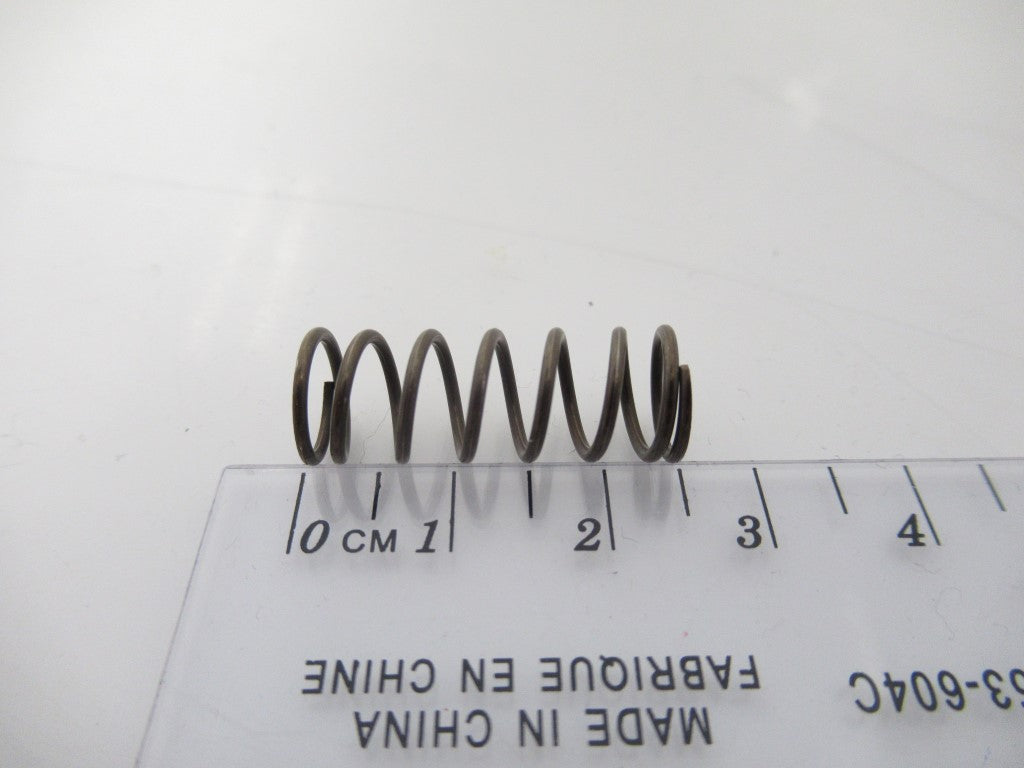

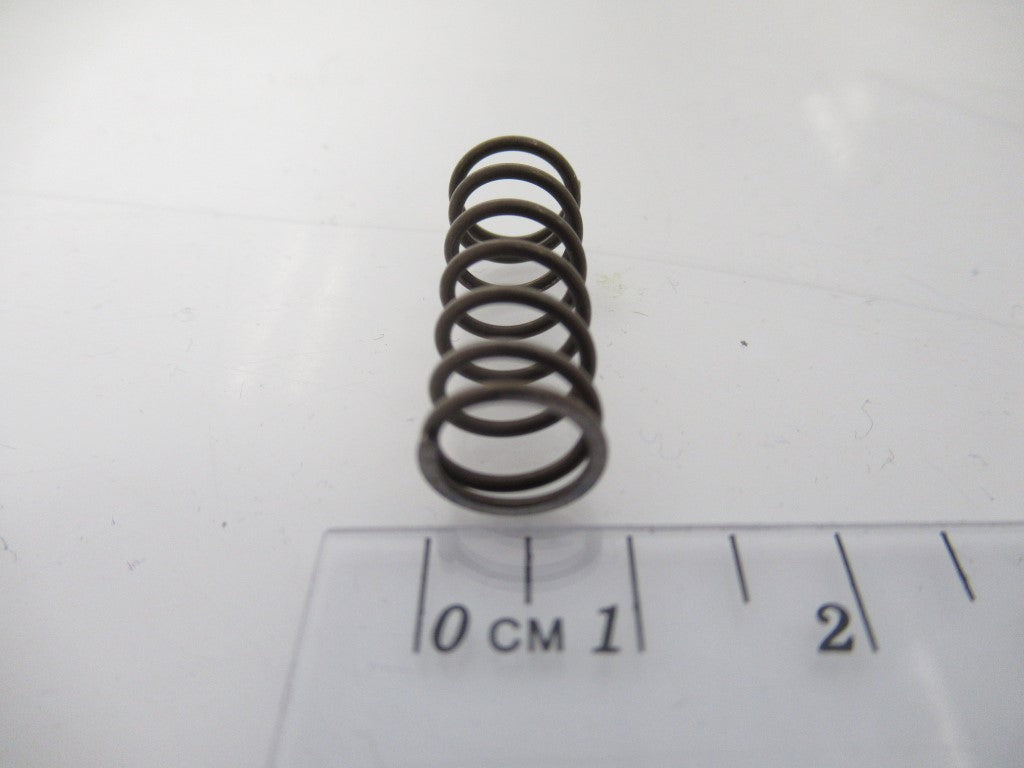

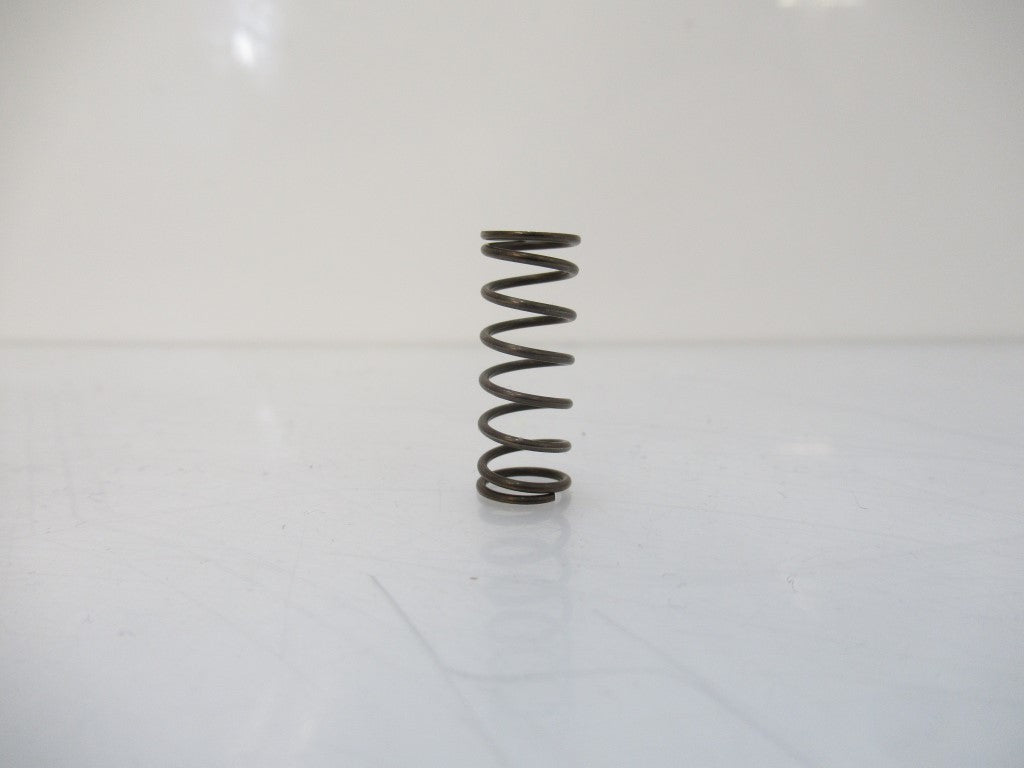

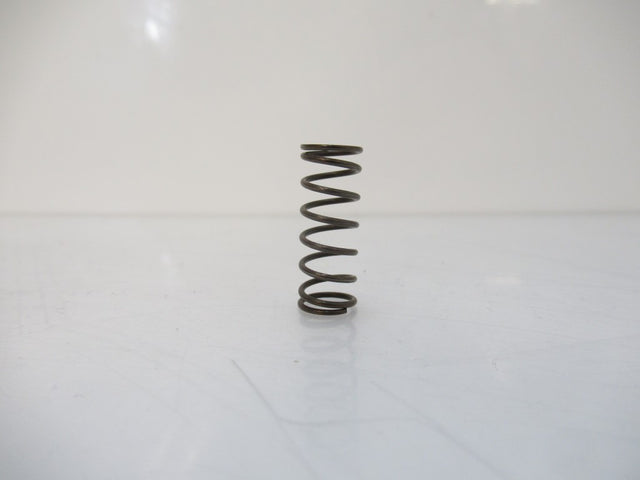

71109 Compression Spring, Music Wire, 7.63 Coils

Name: 71109 Compression Spring, Music Wire, 7.63 Coils
Brand: Unbranded/Generic
SKU: SPG-0285-E
Price: 3.2 USD
Availability: InStock

SKU SPG-0285-E

$3.20 USD - $3.20 USD

$3.20 USD

$3.20 USD - $3.20 USD

$3.20 USD

Availability:

7 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications

by Unbranded/Generic

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Description

71109

Unbranded/Generic

Compression Spring

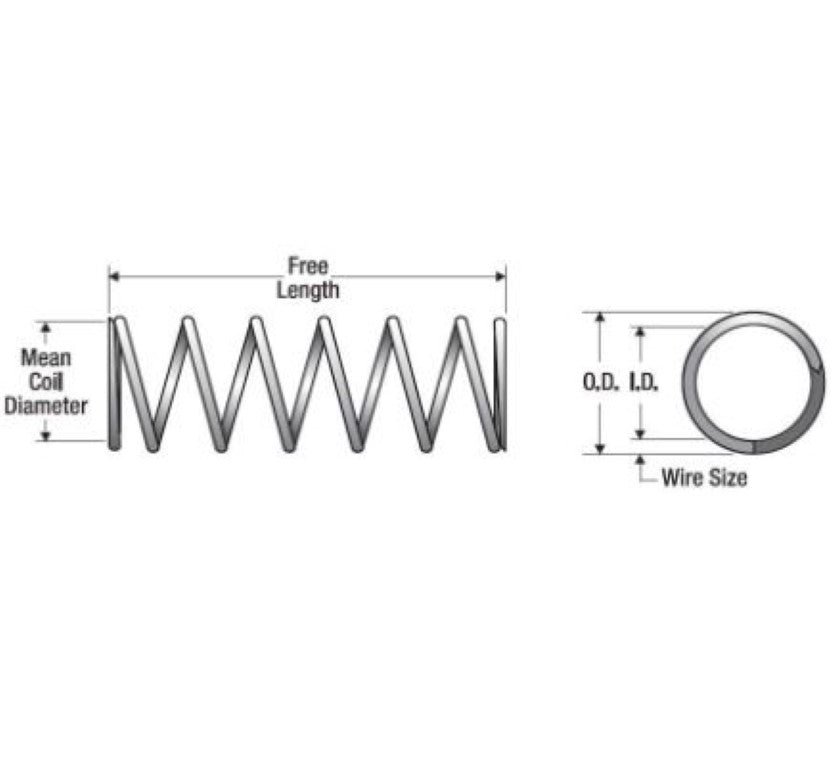

Specifications

Material: Music Wire - MW
Wire Dia (in): 0.038
O. D. (in): 0.360
I. D. (in): 0.284
Free Length (in): 0.940
Total Coils 7.63
Rate (lb/in): 16.00
Ends: Closed/Ground - CG
Suggested Max Load (lb): 8.100
Suggested Max Deflection (in): 0.510
Solid Length (in): 0.29

Regular compression spring in music wire with 7.63 total coils and closed/ground ends. This spring features an O.D. of 0.360in, an I.D. of .284in, a spring rate of 16.
