7000-12581-0000000 Murr Elektronik Plug Female MOSA M12

$16.50 USD
FACTORY SUPPLY BRAND NEW
SKU PLG-0352-E
UPC: 7000-12581-0000000
Only 10000 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

7000-12581-0000000 7000125810000000

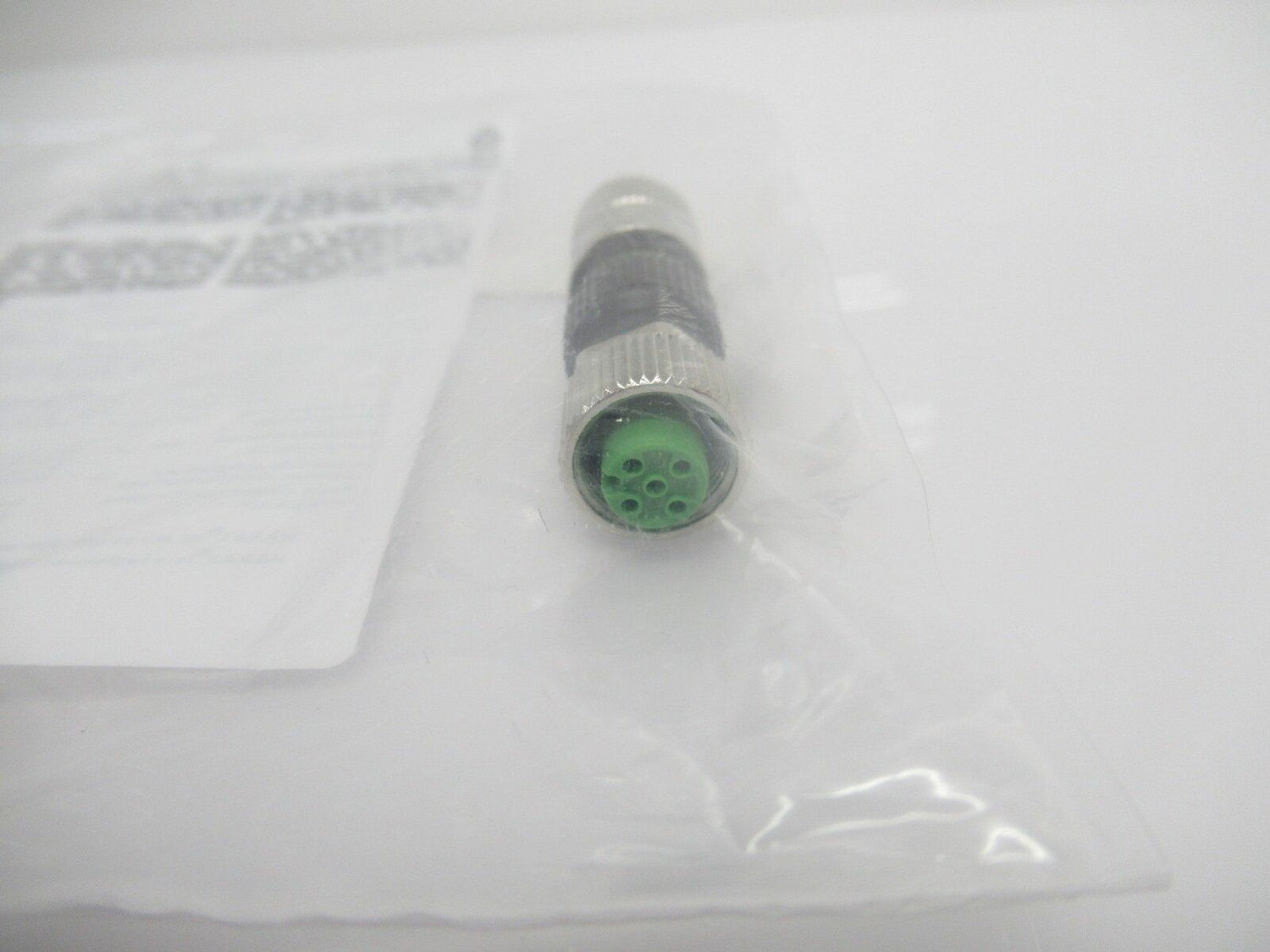

Plug MOSA M12 Female Straight Field-Wireable (IDC)

TECHNICAL DATA

  • Operating voltage: max. 32 V AC/DC
  • Rated surge voltage: 0.8 kV
  • Operating current per contact: max. 4 A
  • Material group: IEC 60664-1, category III
  • Connection cross section: 0.25...0.5 mm² (conductor diameter min. 0.1 mm)
  • Sealing range (cable Ø): 4...5.1 mm
  • Wire isolation: PVC, PP, TPE
  • Outer wire Ø: 1.2...1.6 mm
  • Locking of ports: Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
  • Protection: IP67 inserted and tightened (EN 60529)
  • Reconnection (cable): 10

GENERAL DATA

  • Temperature range: -25...+85 °C
  • Dimensions H×W×D: 51×15×15 mm
