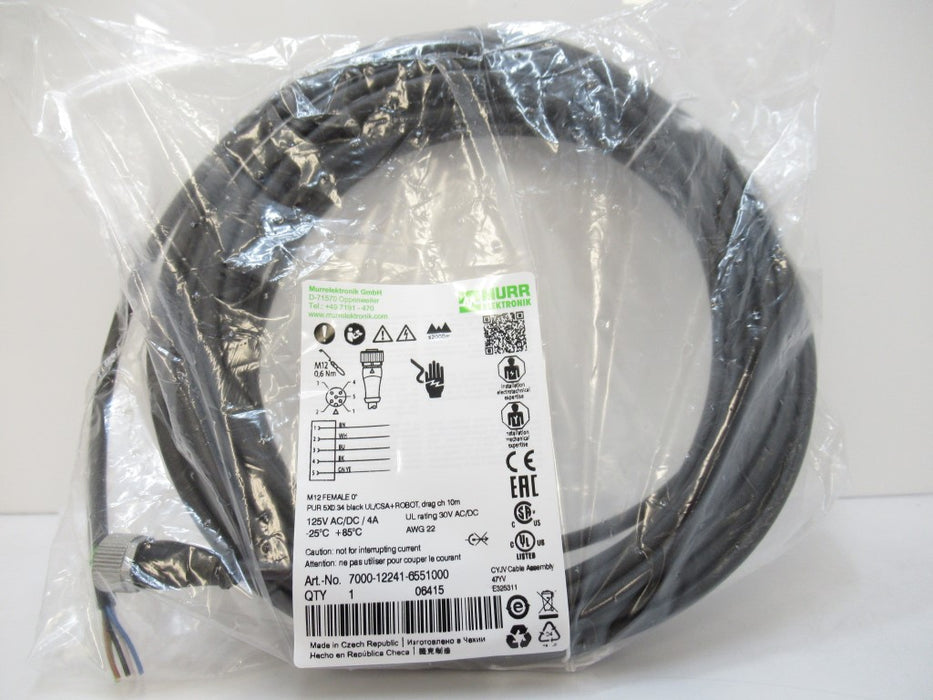

7000-12241-6551000 MurrElektronik M12 Female With Cable New In Bag

7000-12241-6551000 MurrElektronik M12 Female With Cable AWG 22

by MURRELEKTRONIK
$43.13 USD
FACTORY SUPPLY BRAND NEW
SKU WIR-0881-E
UPC: DOES NOT APPLY
Only 6 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

7000-12241-6551000 7000122416551000

MurrElektronik

PUR 5X0.34 Black UL / CSA + ROBOT, Drag Ch 10m

New In Bag

Description

  • Operating Voltage: Max. 125 V AC/DC
  • Operating Voltage (Only Ul Listed): Max. 30 V AC/DC
  • Rated Surge Voltage: 1.5 KV
  • Operating Current Per Contact: Max. 4 A
  • No. Of Poles: 5
  • AWG: Similar To AWG 22
  • Material Group: IEC 60664-1, Category I
  • Coding: A-coded
  • Led Display: no
  • Locking Of Ports: Screw Thread (M12×1 mm) Recommended Torque 0.6 mm, Self-Securing
  • Compression Gland: M12 (SW13)
  • Protection: IP65, IP66k, IP67 Inserted And Tightened (En 60529)
  • Material: PUR
  • Suitable For Corrugated Tube (Internal Ø): 10 mm
  • Locking Material: Zinc Die Casting, Save-Cover Coated
  • Standards: DIN EN 61076-2-101 (M12)
