7000-12241-6251000 MurrElektronik Cable Sensor M12, 5 Pin Femelle New

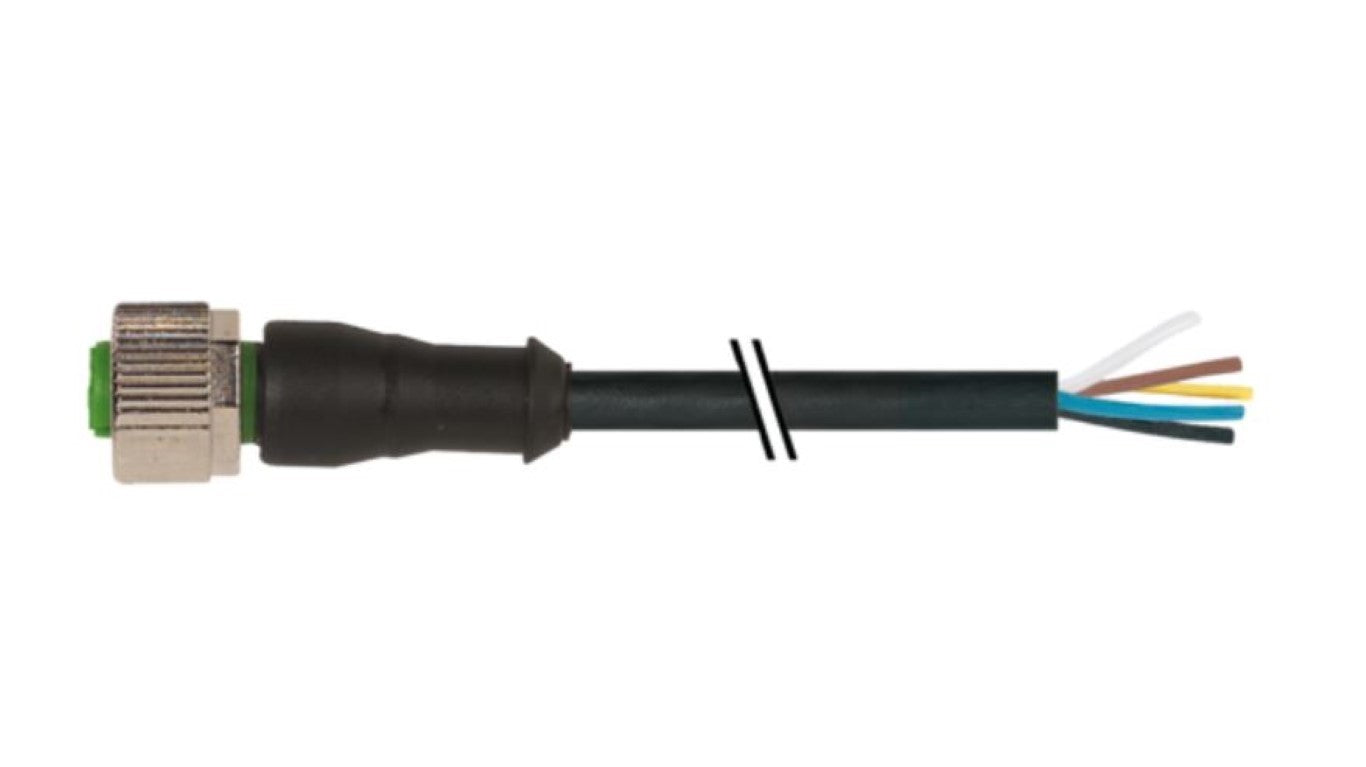

7000-12241-6251000 MurrElektronik M12 Female 0° A-Cod. With Cable

by MURRELEKTRONIK
$21.93 USD
FACTORY SUPPLY BRAND NEW
SKU WIR-1235-E
UPC: DOES NOT APPLY
Only 4 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

7000-12241-6251000 7000122416251000

MurrElektronik

M12 Female 0° A-Cod. With Cable

PUR 5x0.34 bk UL/CSA 10m

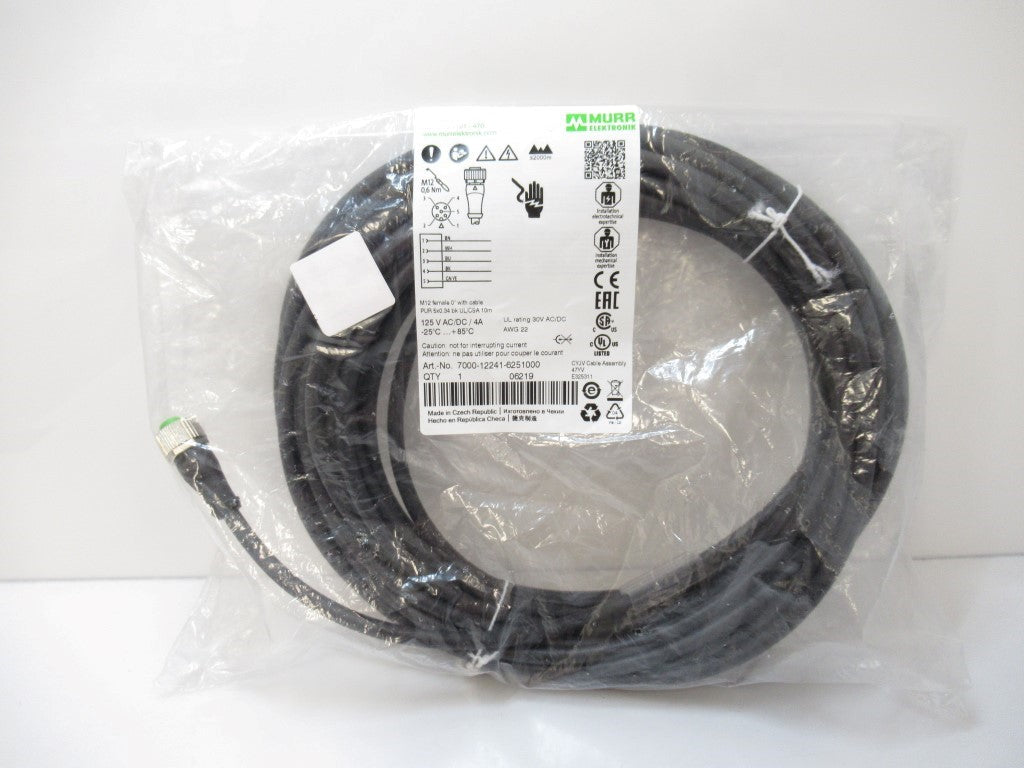

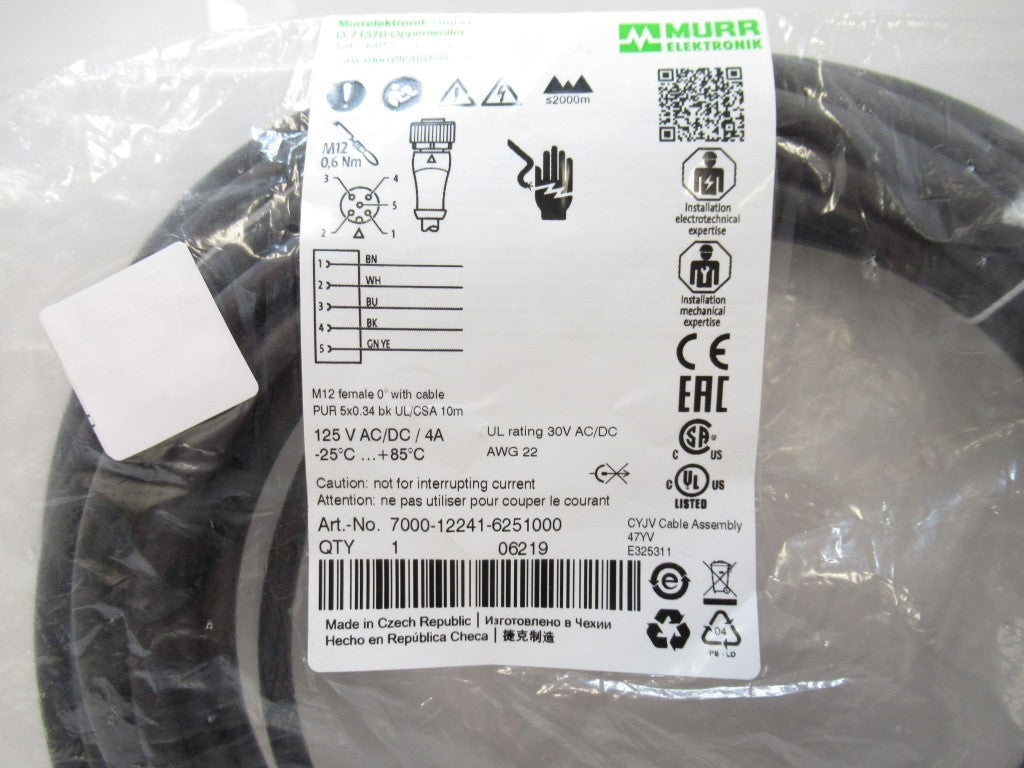

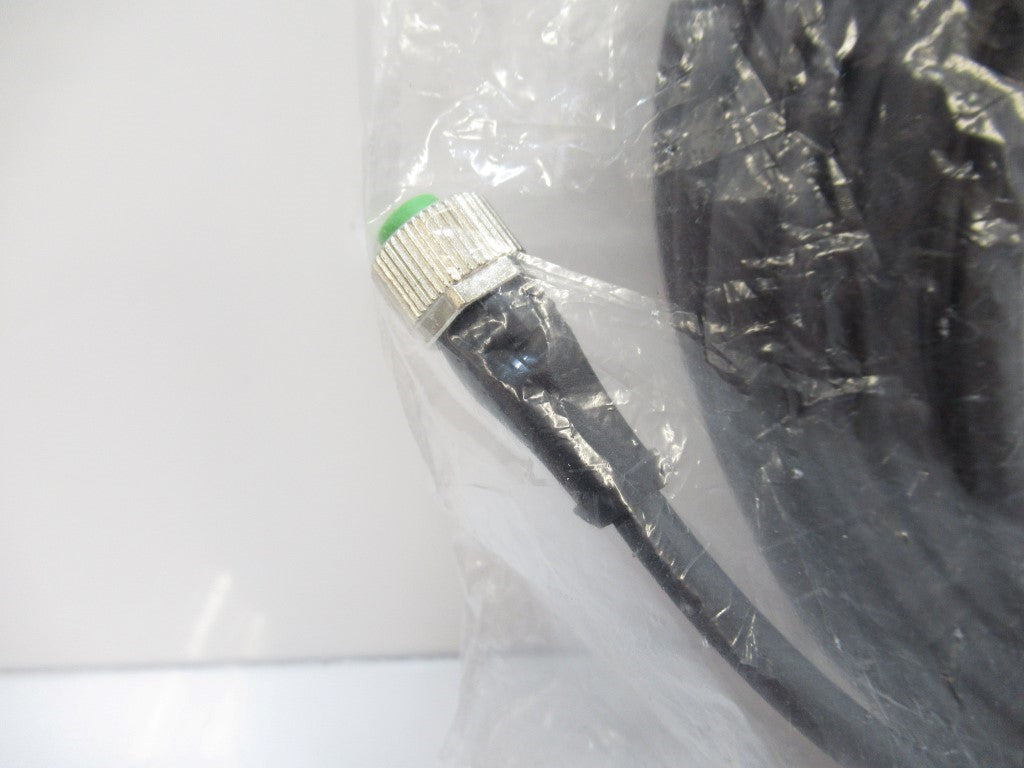

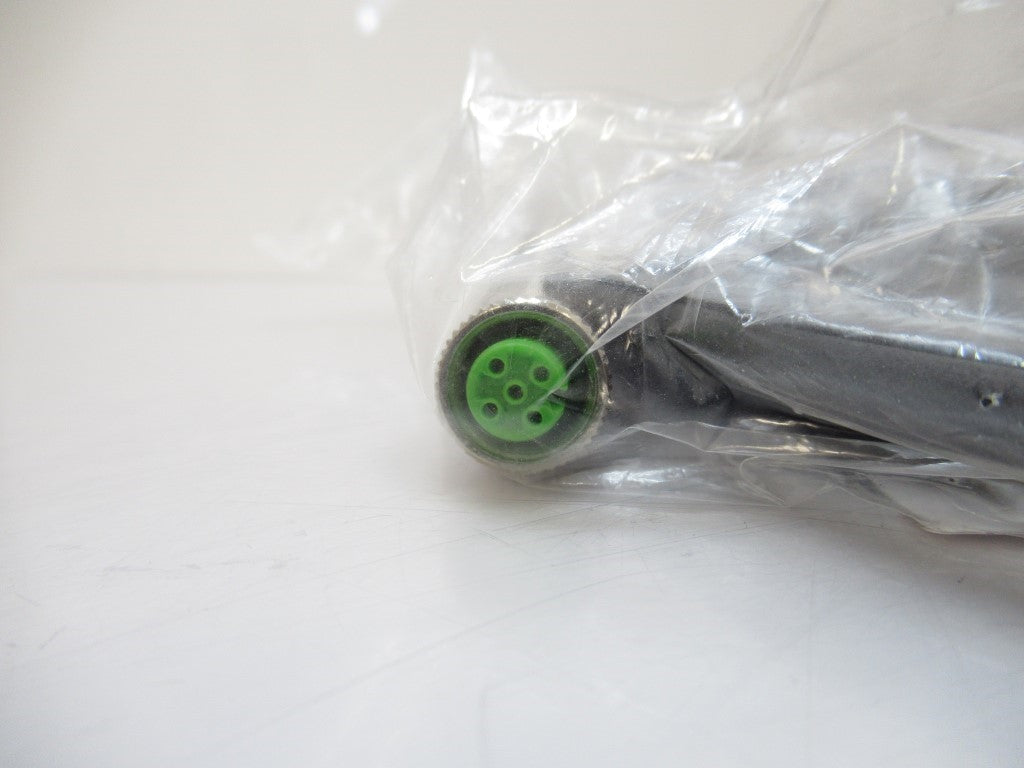

(New In Bag Sealed)

Description

  • Operating Voltage: Max. 125 V AC/DC
  • Operating Voltage (Only UL Listed): Max. 30 V AC/DC
  • Rated Surge Voltage: 1.5 kV
  • Operating Current Per Contact: Max. 4 A
  • No. Of Poles: 5
  • Material Group: IEC 60664-1, Category I
  • Coding: A-Coded
  • LED Display: No
  • Locking Of Ports: Screw Thread (M12×1 mm) Recommended Torque 0.6 Nm, Self-Securing
  • Compression Gland: M12 (SW13)
  • Protection: IP65, IP66K, IP67 Inserted And Tightened (EN 60529)
  • Material: PUR
  • Locking Material: Zinc Die Casting, Matte Nickel Plated
  • Suitable For Corrugated Tube (Internal Ø): 10 mm
