7000-08345-0000000 Murrelektronik Mosa M8 Male 0° Field Wire 4-Pole

7000-08345-0000000 7000083450000000

Murrelektronik

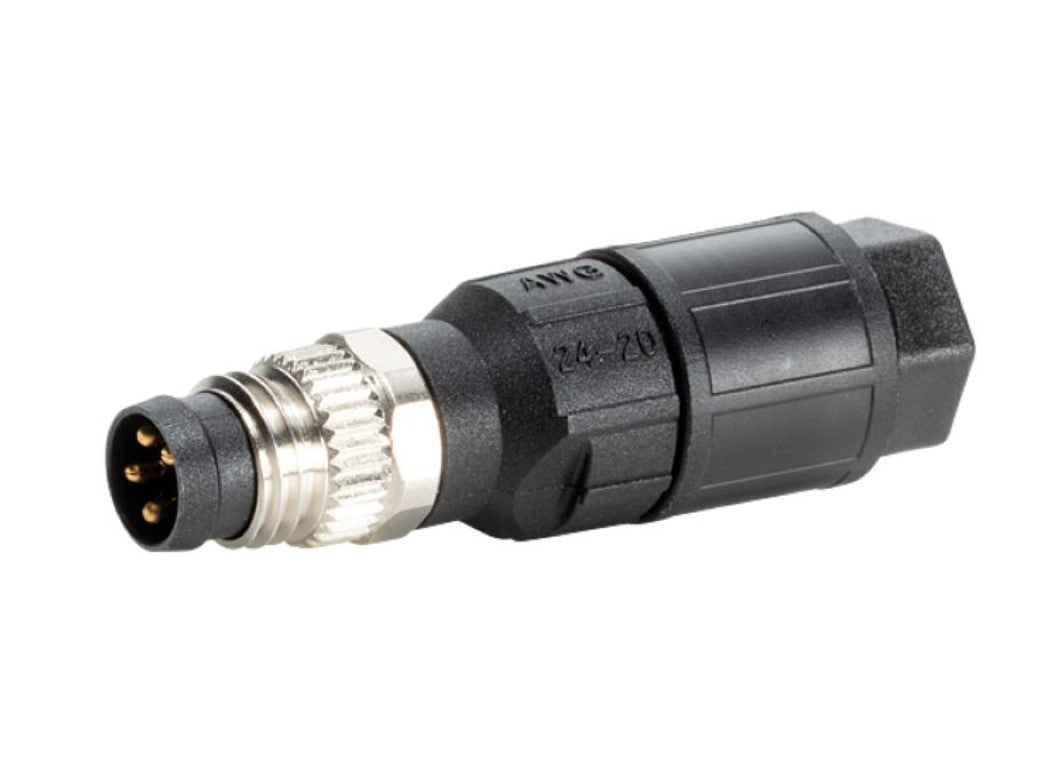

Mosa M8 Male 0° Straight Field Wire 4-Pole IDC Terminals

(New In Bag)

Description

• Operating Voltage: 30 V AC/DC
• Operating Current Per Contact: Max. 4 A
• No. Of Poles: 4
• Over Voltage Category: 2
• Isolation Resistance: ≥ 100 MΩ
• Connection Cross Section: 0.25...0.5 mm²
• Sealing Range (Cable 0): 2.5...5.0 mm
• Wire Isolation: PVC, PE, PP, Rubber
• Outer Wire 0: 1.1...1.55 mm
• Compression Gland: Hexagonal Screw/Nut
• Protection: IP65 And IP67 When Plugged And Screwed Down (EN 60529)
• Material: PA
• Locking Material: Zinc Die Casting, Matte Nickel Plated
• Mating Cycles: ≥ 100
• Reconnection (Cable): 10
• Standards: DIN EN 61076-2-104 (M8)
• Connection: IDC Terminal
• Mounting Method: Inserted, Tightened
• Material (Contact Carrier): TPU
• Material (Contact): Copper Alloy
• Temperature range: -25...+80 °C
