7000-08081-6201000 Murrelektronik Cable Sensor M8 Female Connector

7000-08081-6201000 7000080816201000

Murrelektronik

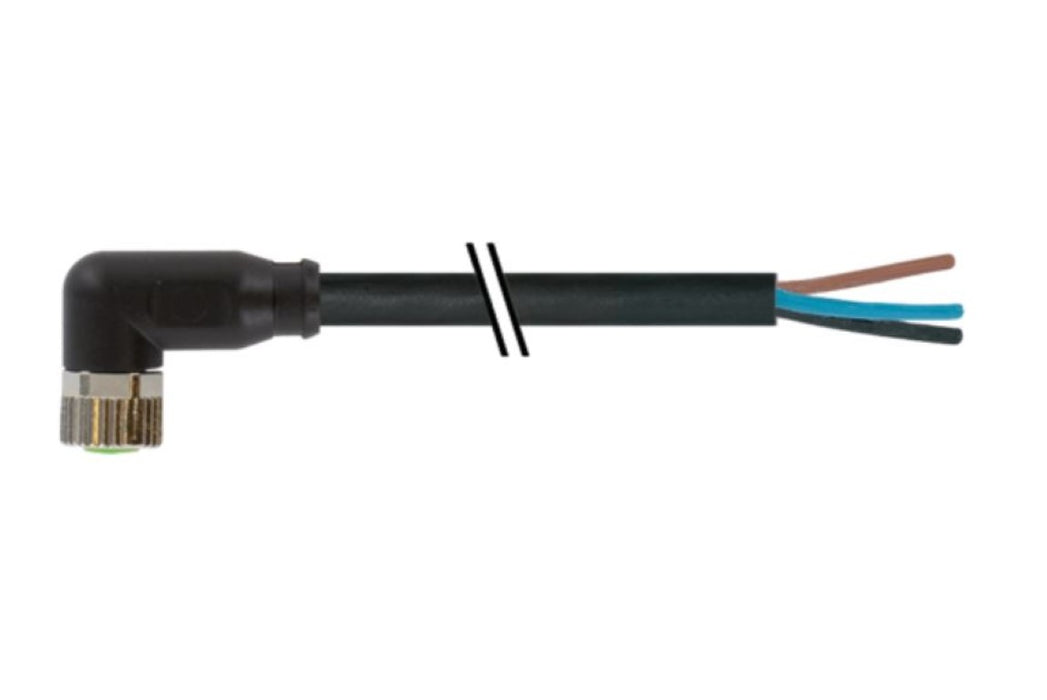

Cable Sensor With Connector 90°, 3-Pin

(New In Bag Sealed)

Description

• Operating Voltage: Max. 50 V AC/60 V DC
• Operating voltage (Only UL listed): 30 V AC/DC
• Rated Surge Voltage: 1.5 kV
• Operating Current Per Contact: Max. 4 A
• No. Of Poles: 3
• Material Group: IEC 60664-1, Category I
• LED Display: No
• Locking Of Ports: Screw Thread (M8×1 mm) Recommended Torque 0.4 Nm, Self-Securing
• Compression Gland: M8 (SW9)
• Protection: IP65, IP66K, IP67 Inserted And Tightened (EN 60529)
• Material: PUR
• Locking Material: Zinc Die Casting, Matte Nickel Plated
• Suitable For Corrugated Tube (Internal Ø): 6.5 mm
