5IK100VEST2-12.5A Orientalmotor Induction Gear Motor 1/8HP Ratio 12.5:1 (New)

5IK100VEST2-12.5A Orientalmotor Induction Gear Motor 1/8HP Ratio 12.5:1

by Orientalmotor
Sold out
$334.41 USD
FACTORY SUPPLY BRAND NEW
SKU MOT-0776-E
UPC: 5IK100VEST2-12
Only 0 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

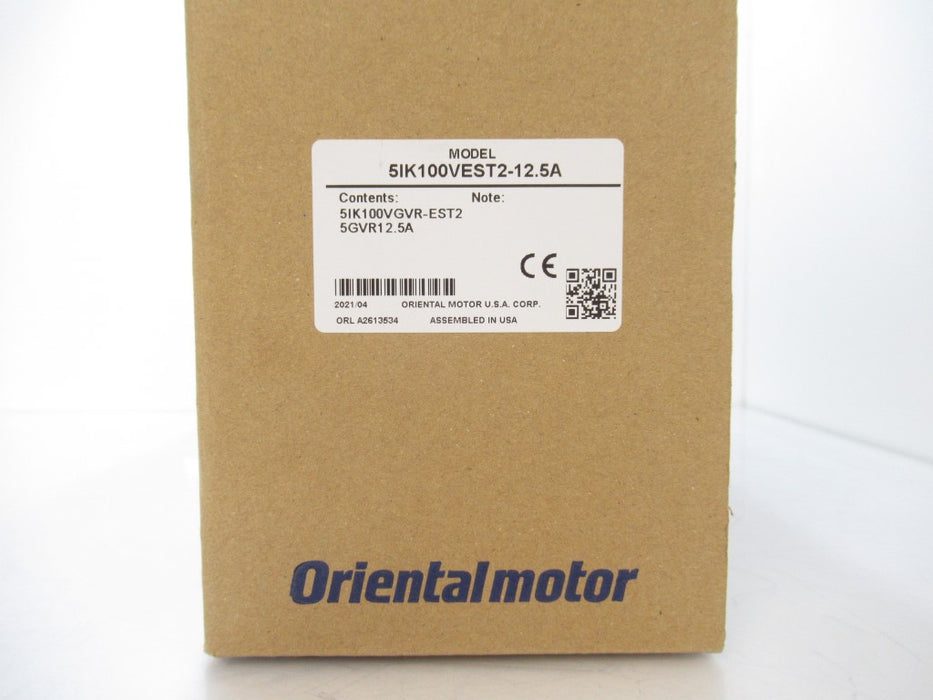

5IK100VEST2-12.5A 5IK100VEST2125A

Orientalmotor

100 W (1/8 HP) Induction Gear Motor (12:1 Gear Ratio, Three-Phase 220/230 VAC)

(New In Box)

  • The Next Generation Kiis Series Offers An Optimally Designed, High Efficiency Next Generation Three-phase Motor That Incorporates Higher Strength Gears That Maximizes The Motor Performance.
  • Higher Permissible Torque
  • Long Life (Rated life 10,000 hours)
  • Low Noise

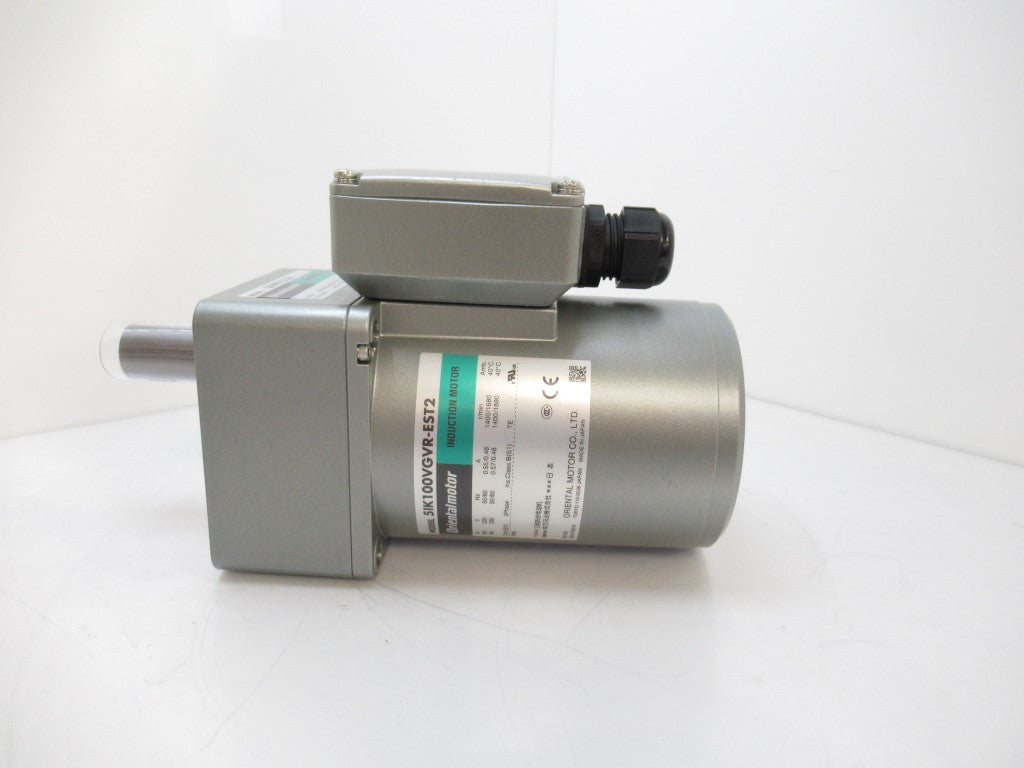

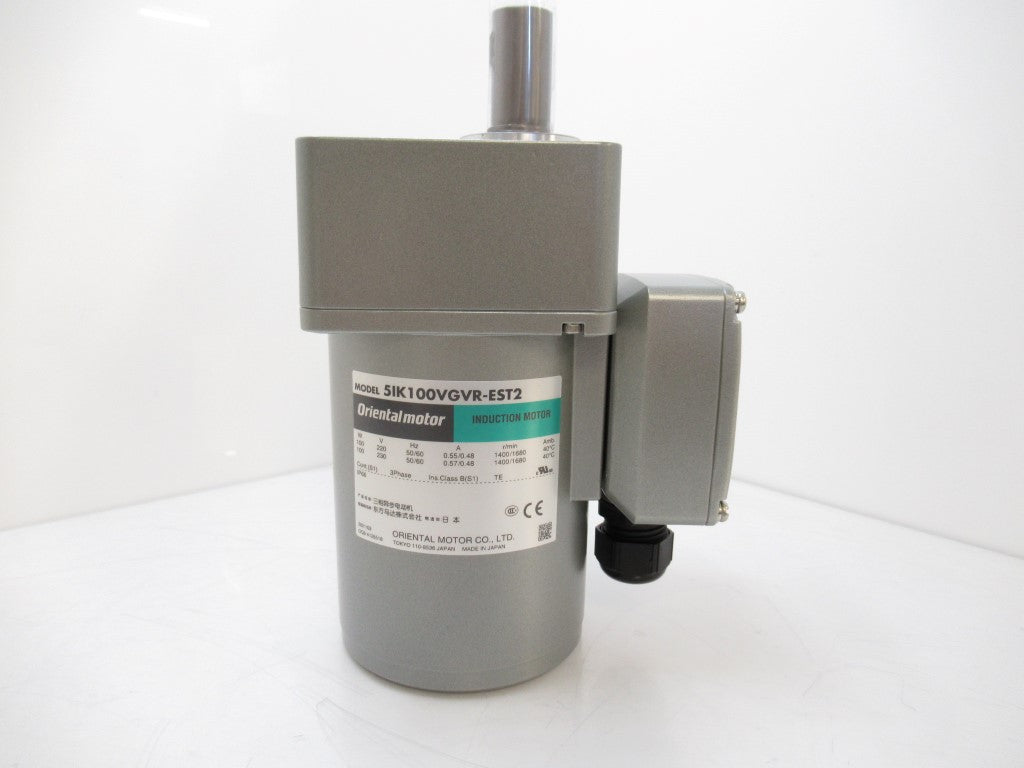

  • Combination Type (Motor And Gearhead Come Pre-Assembled)

Specifications

  • Product Line: Oriental Motor
  • Motor Type: Induction
  • Frame Size: 3.54 in
  • Output Power: 100 W (1/8 HP)
  • Voltage (VAC): Three-Phase 220/230 VAC
  • Frequency (Hz): 60 - 50
  • Current: 0.55 A [220 VAC, 50 Hz] - 0.57 A [230 VAC, 50 Hz] - 0.48 A [60 Hz]

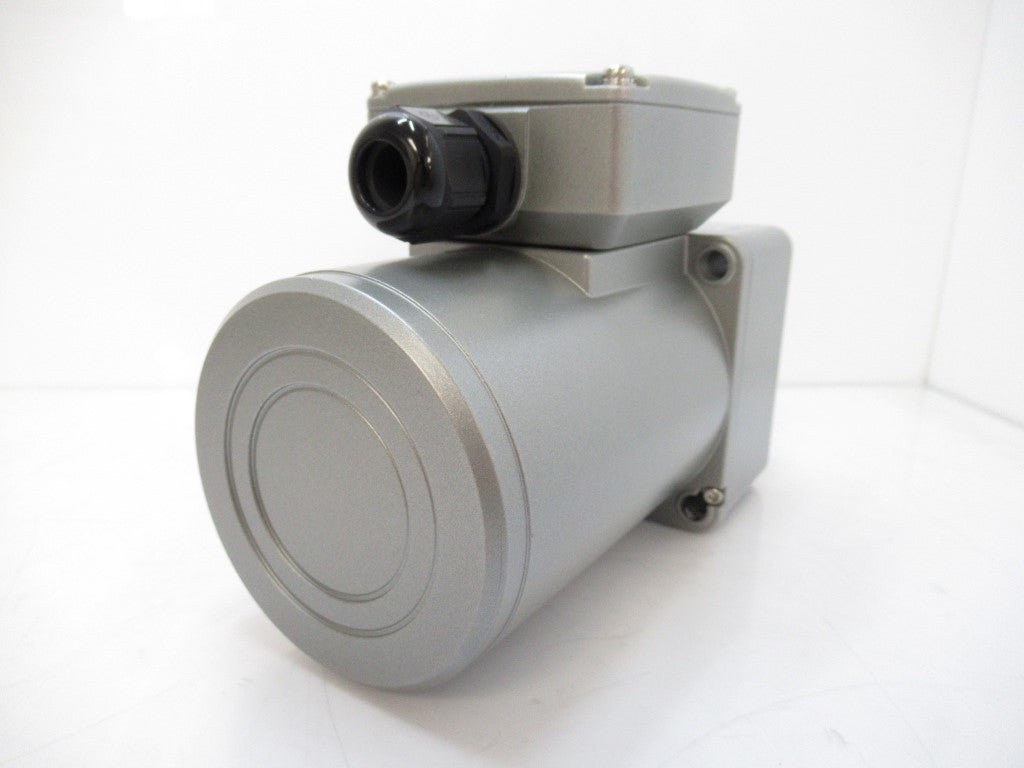

  • Type:Terminal Box
  • Electromagnetic Brake: Not Equipped
  • Shaft/Gear Type: Parallel Shaft Gearhead
  • Gear Ratio (X:1): 12 :1

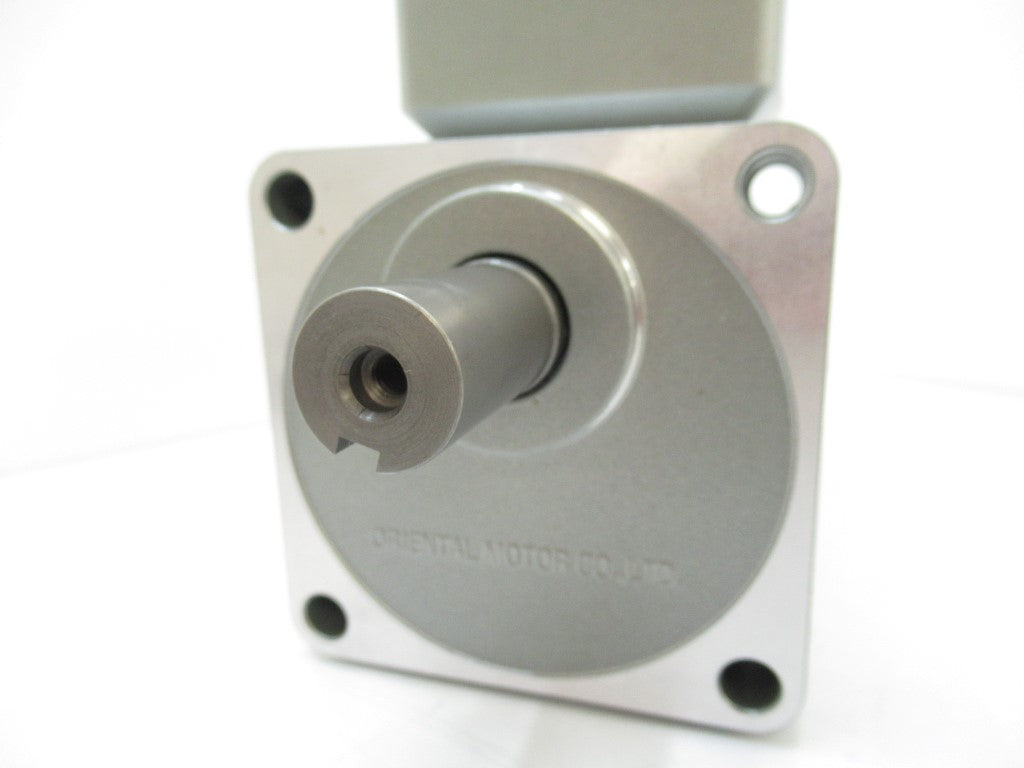

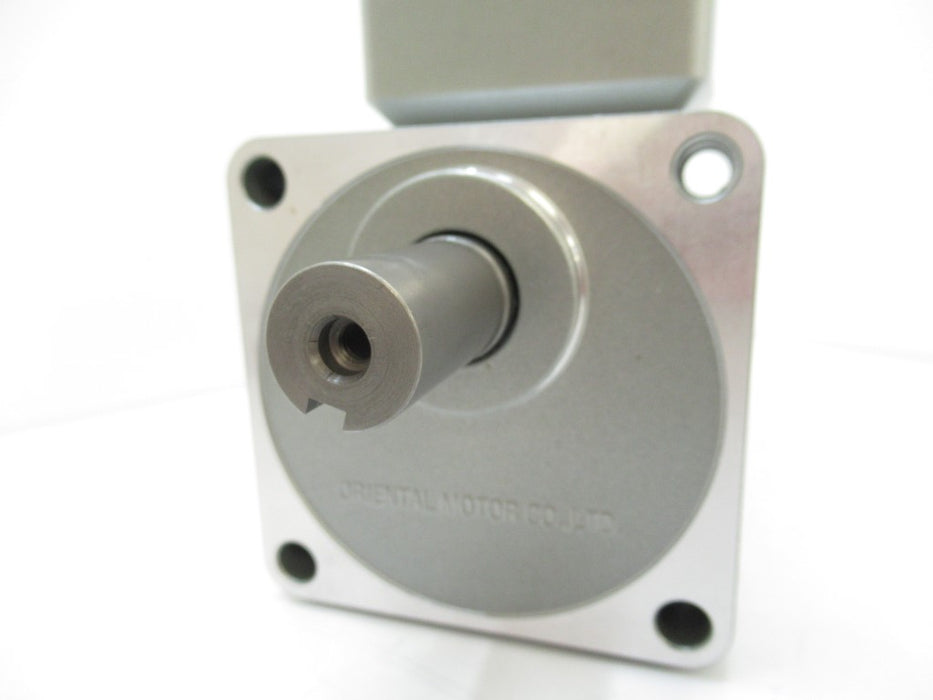

  • Output Shaft Diameter: 3/4 in.
  • Rated Torque: 56 lb-in [60 Hz] - 69 lb-in [50 Hz]
  • Rated Speed (rpm): 120 [50 Hz] - 144 [60 Hz]
  • Permissible Load Inertia: 937.50 oz-in²
  • Permissible Overhung Load: 0.39 in. from Shaft End = 101 lb - 0.79 in. from Shaft End = 135 lb
  • Permissible Thrust Load: 33 lb

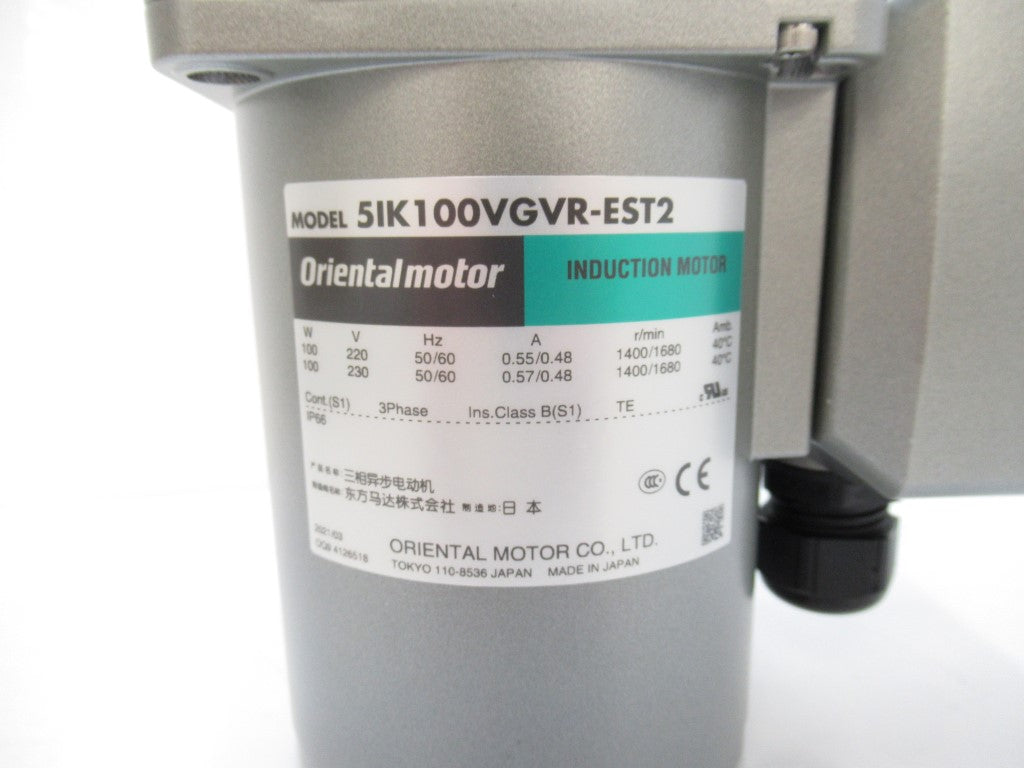

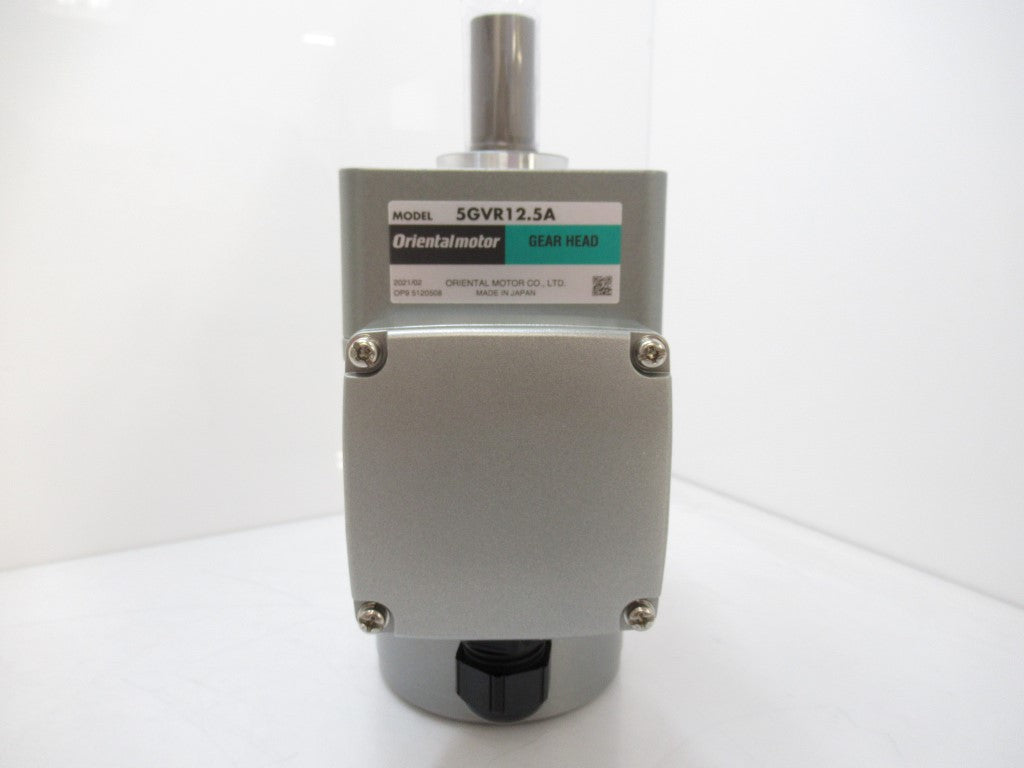

  • Components: 5IK100VGVR-EST2 [Motor] - 5GVR12.5A [Gearhead]
    RoHS Compliant: These products do not contain substances that exceed the regulation values in the RoHS Directive.
  • Safety Standards: UL, CCC,CE
  • CE Marking: Low Voltage Directives
  • Insulation Resistance: 100 M Ω or more when 500 VDC megger is applied between the windings and the case after continuous operation under normal ambient temperature and humidity.
  • Dielectric Strength: Sufficient to withstand 1.5 kV at 50 Hz or 60 Hz applied between the windings and the case for 1 minute after continuous operation under normal ambient temperature and humidity.
  • Temperature Rise: A gearhead or equivalent heat sink [7.87 x 7.87 in. (200 x 200 mm), 0.20 in. (5 mm) thick, material aluminum] is connected to the motor and the winding temperature rise is measured at 176°F (80°C) or less using the resistance change method after
  • Thermal Class: 130 (B)
  • Ambient Temperature Range: 14°F ~ 104°F (-10°C ~ 40°C) (nonfreezing)
  • Ambient Humidity: 85% or less (noncondensing)
