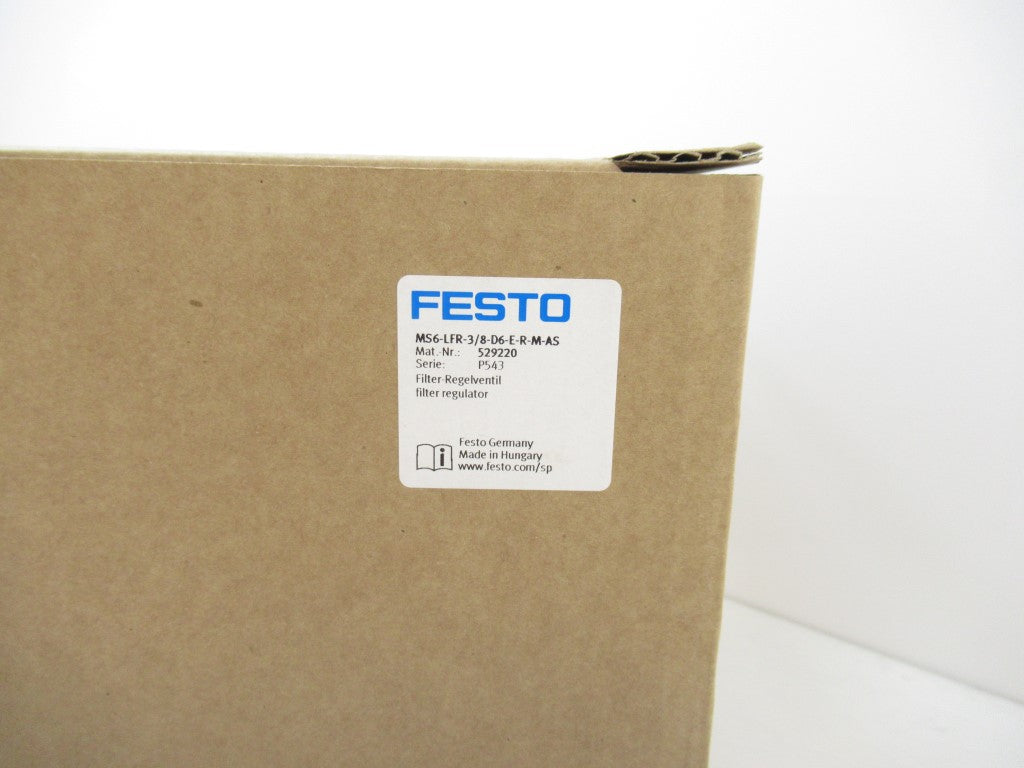

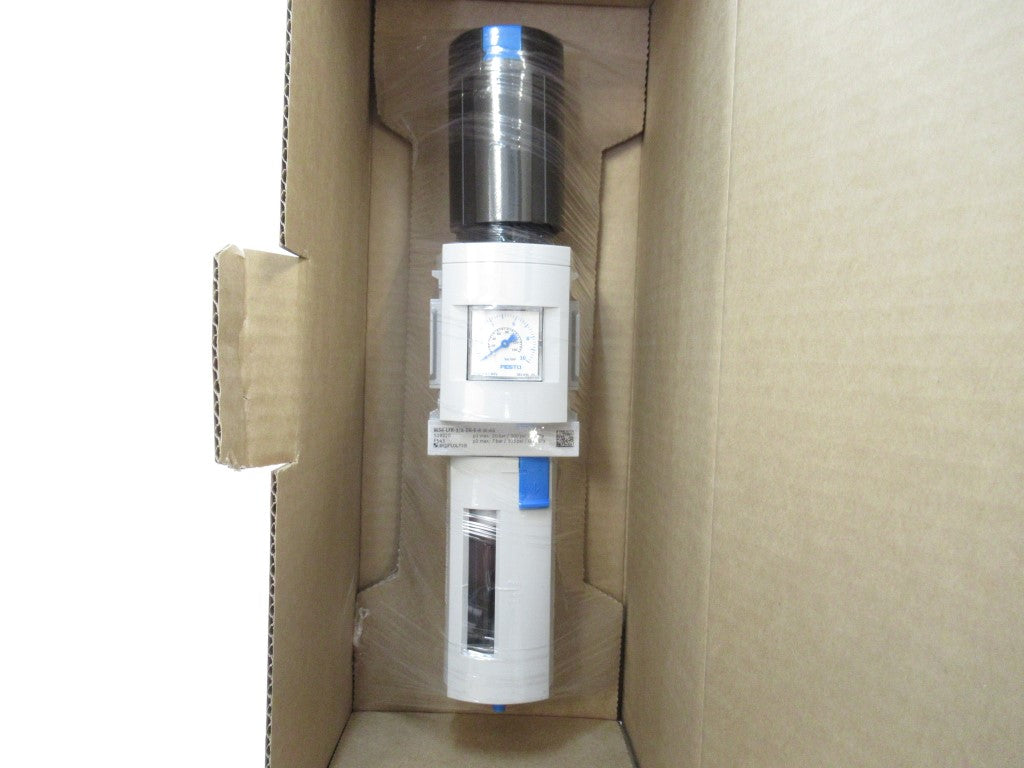

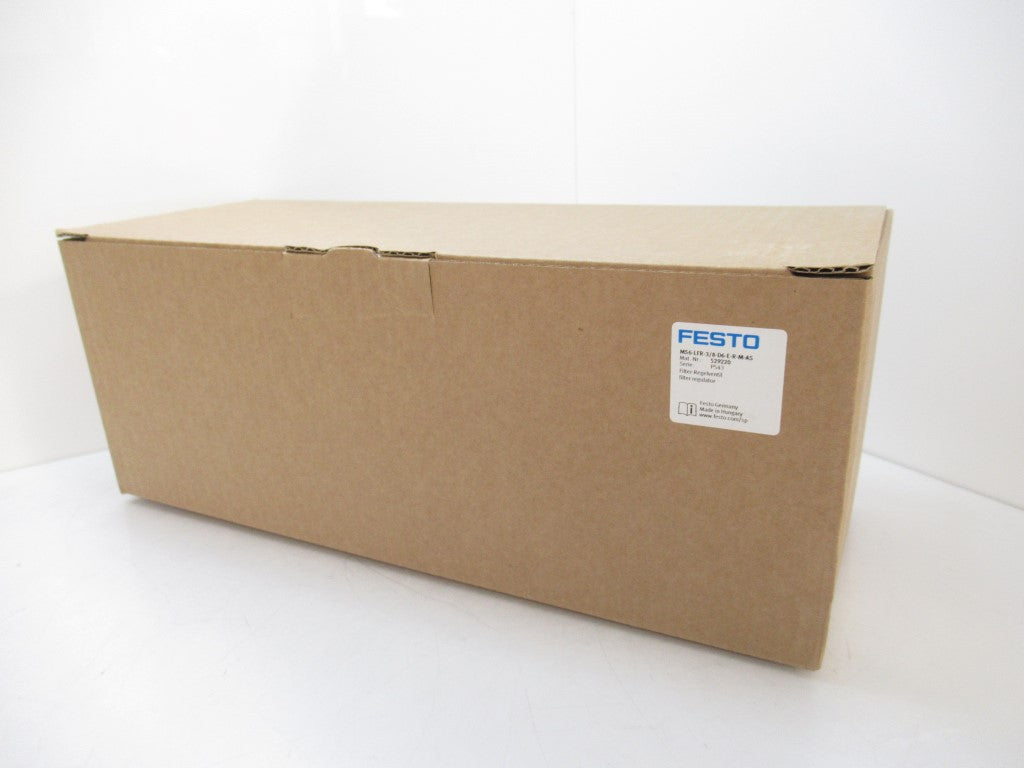

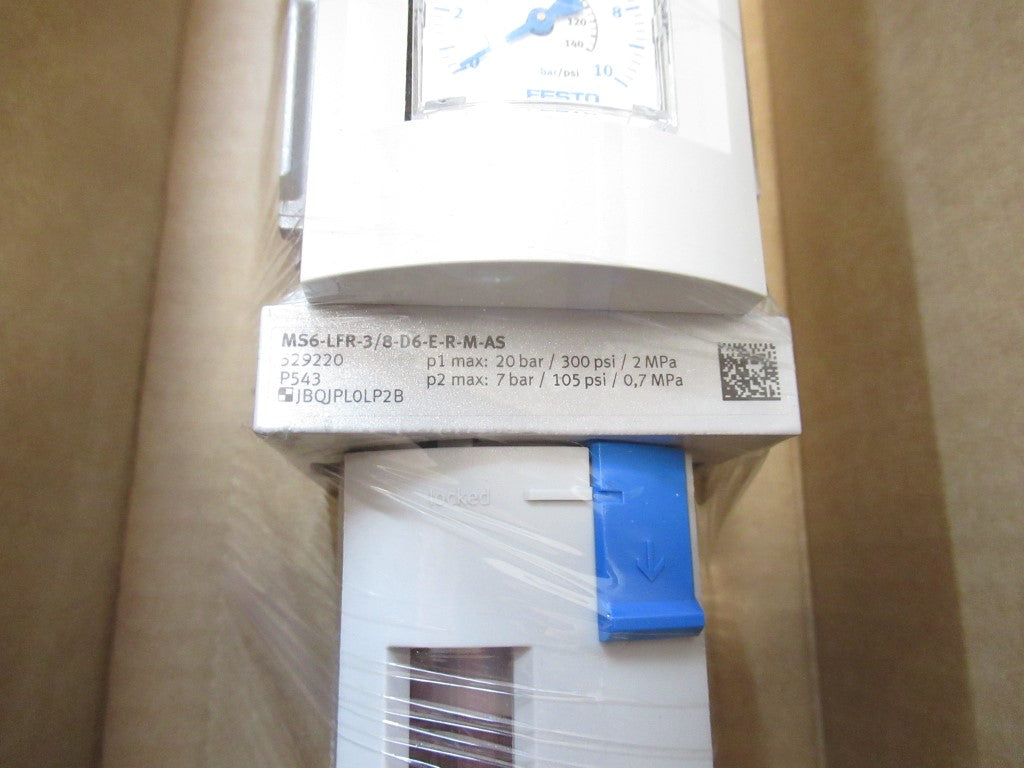

529220 Festo MS6-LFR-3/8-D6-ERM-AS Filter Regulator

by FESTO
$119.64 USD
FACTORY SUPPLY BRAND NEW
SKU FRL-0250-E
UPC: DOES NOT APPLY
Only 2 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

Description

Size
6
Series
MS
Actuator lock
Rotary knob with detent
can be closed with accessories
Mounting position
Vertical +/- 5°
Grade of filtration
40 µm
Condensate drain
Manually rotating
Structural design
Filter regulator with pressure gauge
Max. condensate volume
38 ml
Controller function
Outlet pressure constant
With secondary exhausting
Bowl guard
Plastic bowl guard
Symbol
00991589
Pressure gauge
with pressure gauge
Operating pressure
0.8 bar ... 20 bar
Pressure regulation range
0.3 bar ... 7 bar
Max. pressure hysteresis
0.25 bar
Standard nominal flow rate
5,700 l/min
Operating medium
Compressed air as per ISO 8573-1:2010 [-:4:-]
Inert gas
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage temperature
-10 °C ... 60 °C
For use in the food industry
See supplementary material information
Air quality class at the output
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
875 g
Type of mounting
Optionally:
Front panel mounting
Line installation
With accessories
Pneumatic connection 1
G3/8
Pneumatic connection 2
G3/8
Note on materials
RoHS-compliant
Material of operator panel
PA
POM
Seals material
NBR
Compressed air filter material
PE
Housing material
Die-cast aluminum
Diaphragm material
NBR
Material of bowl
PC
Separating disc material
POM
