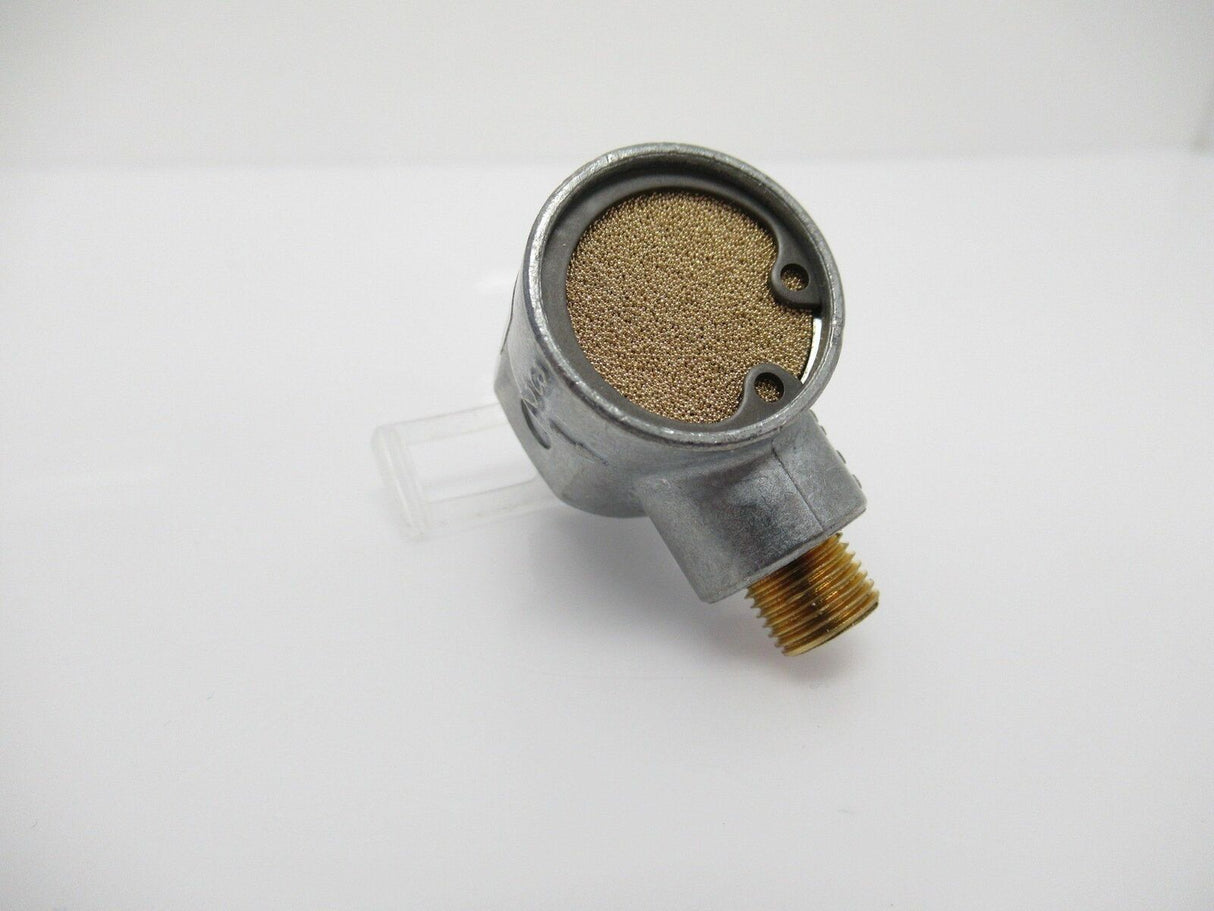

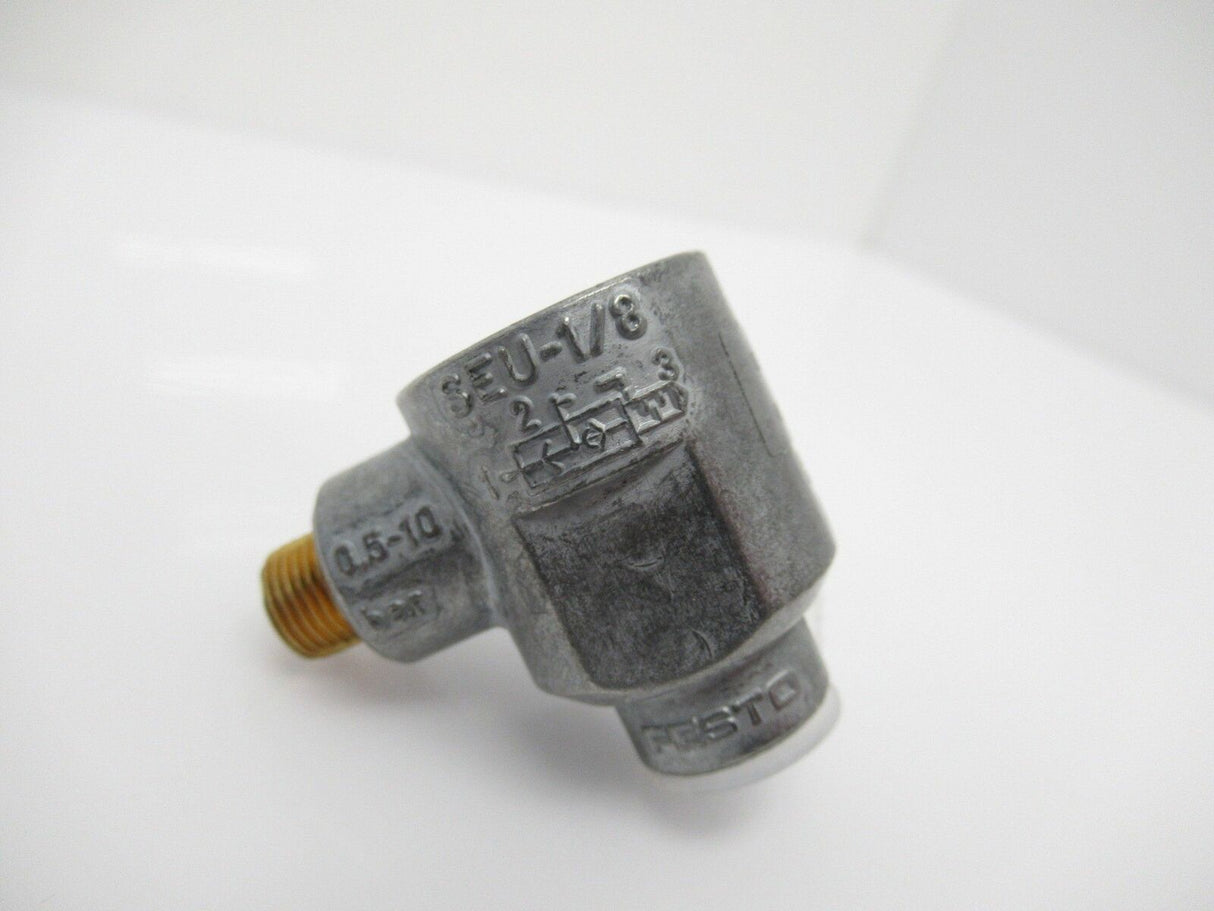

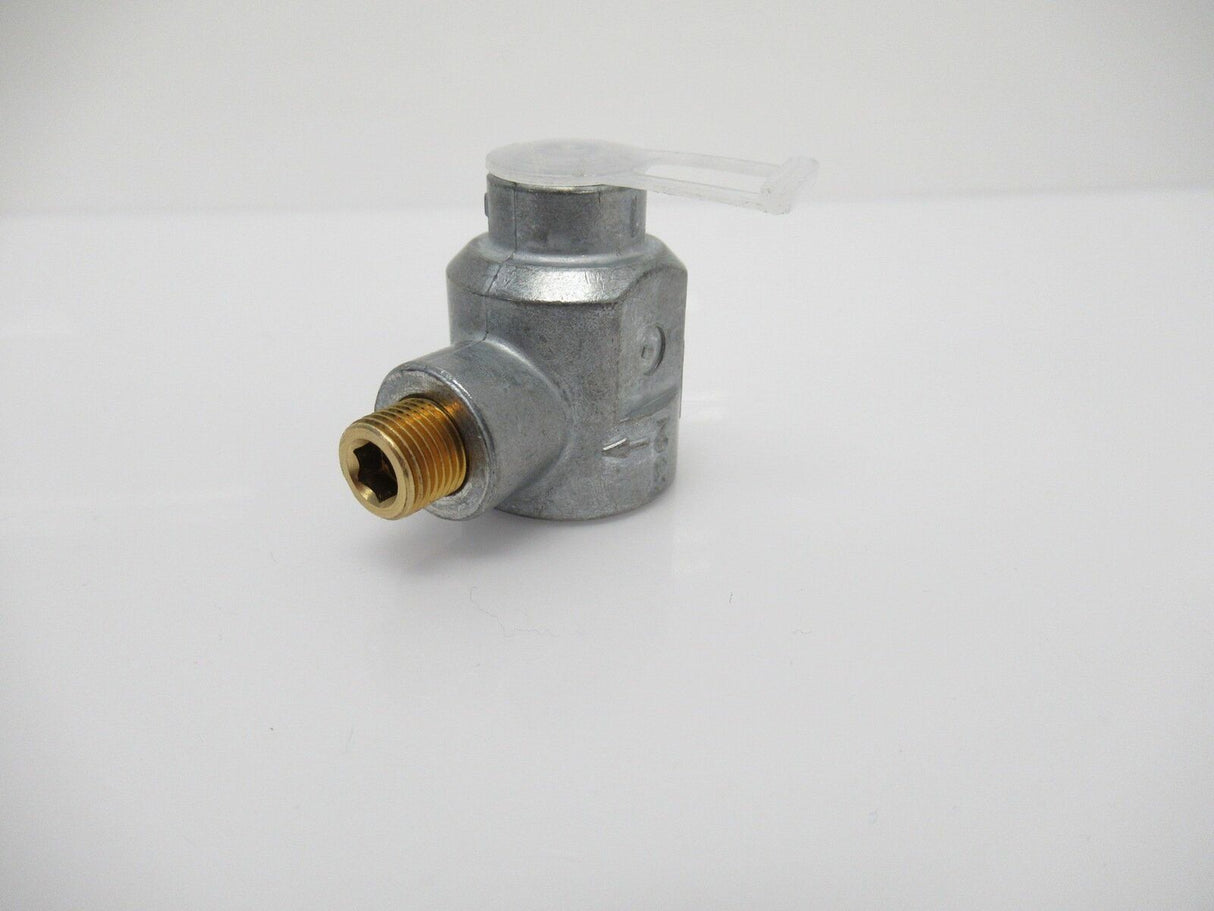

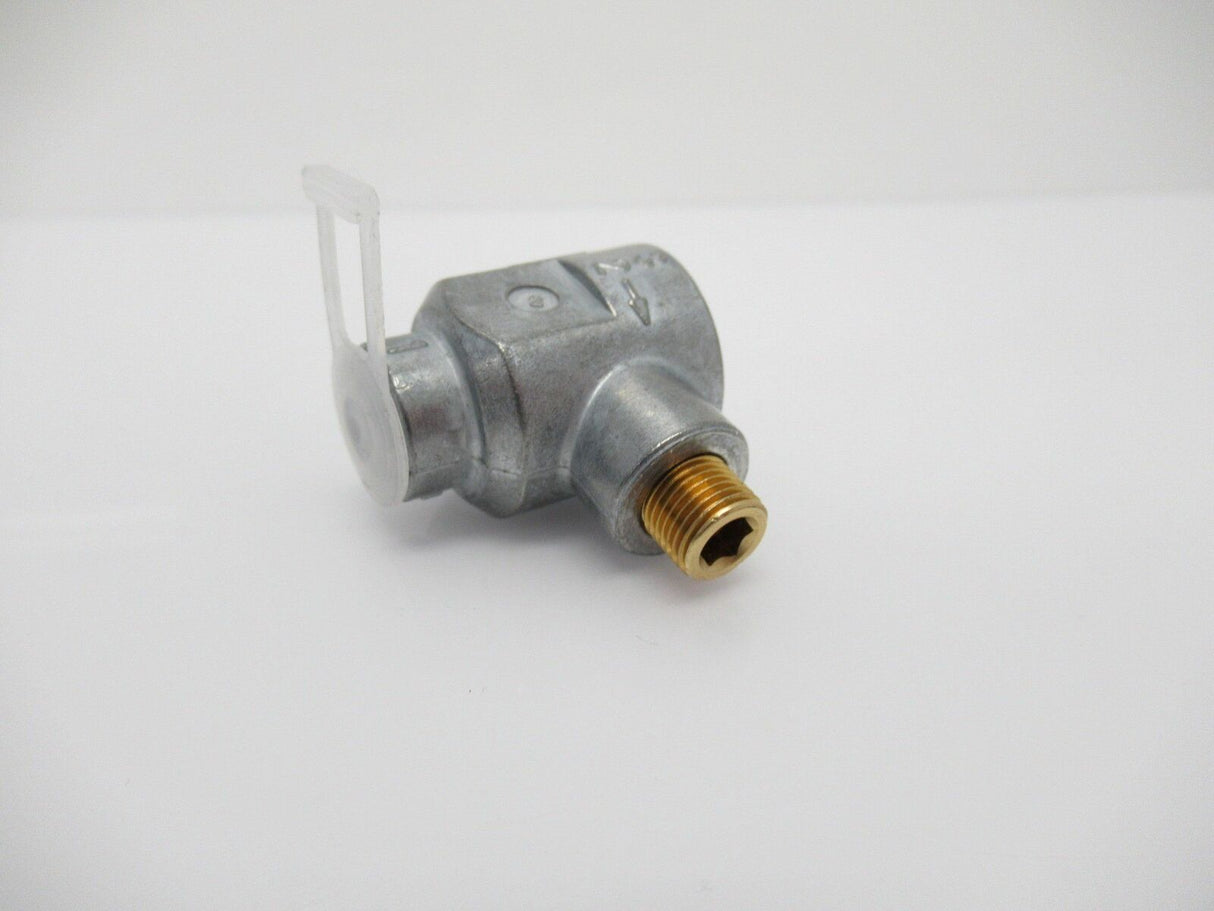

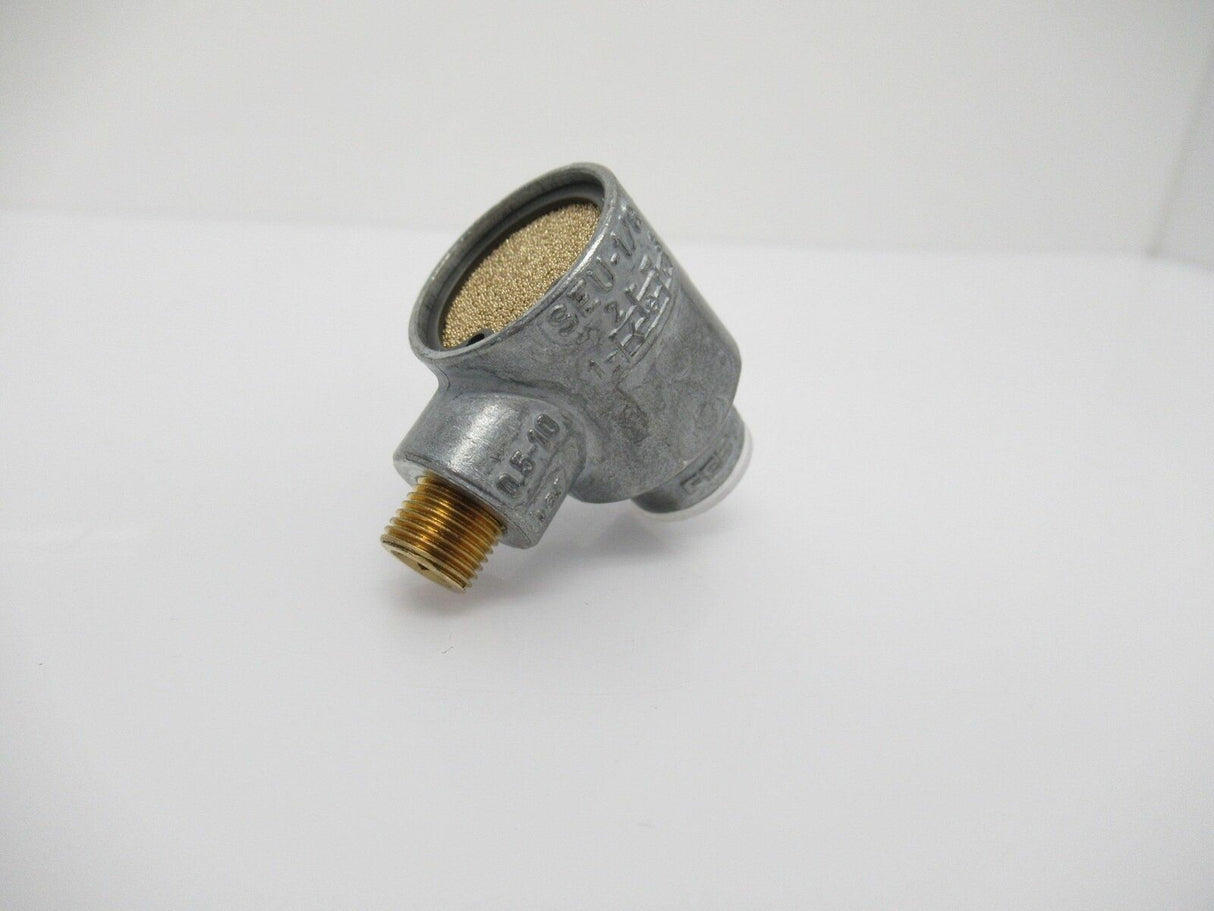

Festo SEU-1/8 4616 Quick Exhaust Valve, Sold By Unit

Product Information

• Valve Function: Quick Exhaust
• Selection Of Additional Function: With Muffler
• Pneumatic Connection 1: G1/8
• Pneumatic Connection 2: G1/8
• Type Of Mounting: Screw-In
• Standard Nominal Flow Rate Exhaust Air 6->5 Bar: 550 L/Min
• Standard Flow Rate Exhaust 6-> 0 Bar: 1,000 L/Min
• Standard Nominal Flow Rate Pressurization 6->5 Bar: 300 L/Min
• Operating Pressure: 0.5 bar ... 10 bar
• Ambient Temperature: -20 °c ... 75 °c
• Housing Material: Die-Cast Zinc
• Operating Medium: Compressed Air As Per ISO 8573-1:2010 [7:4:4]
• Nominal Width: 5 mm
• Mounting Position: Any
• Symbol: 00991460
• Information On Operating And Pilot Media: Operation With Oil Lubrication Possible (Required For Further Use)
• Temperature Of Medium: -20 °c ... 75 °c
• Noise Level: 85 db(A)
• Product Weight: 65 G
• Seals Material: NBR
