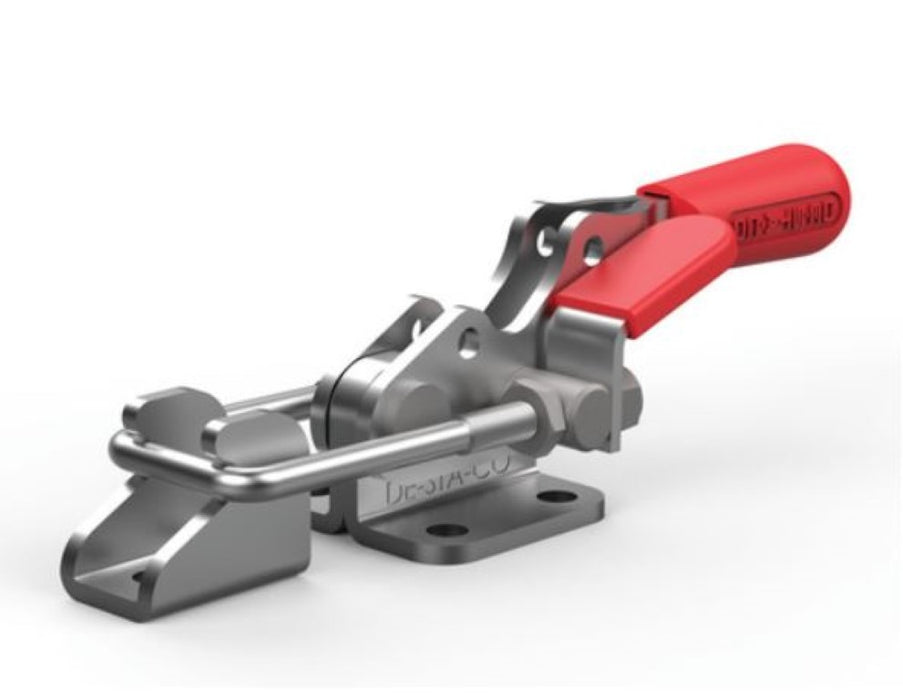

3CXN9 Destaco Model 323 Standard Latch Clamp, 360 Holding Capacity

SKU FAS-0495-E
Original price $28.44 USD - Original price $28.44 USD
Original price
$28.44 USD
$28.44 USD - $28.44 USD
Current price $28.44 USD
Availability:
Only 5 left!

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by DESTACO

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

3CXN9

Destaco

Threaded U-Bolt Permits Easy Adjustment. Ideal For Latching Applications On Molds, Doors, Lids, Access Covers, Drums, Containers, Vessels

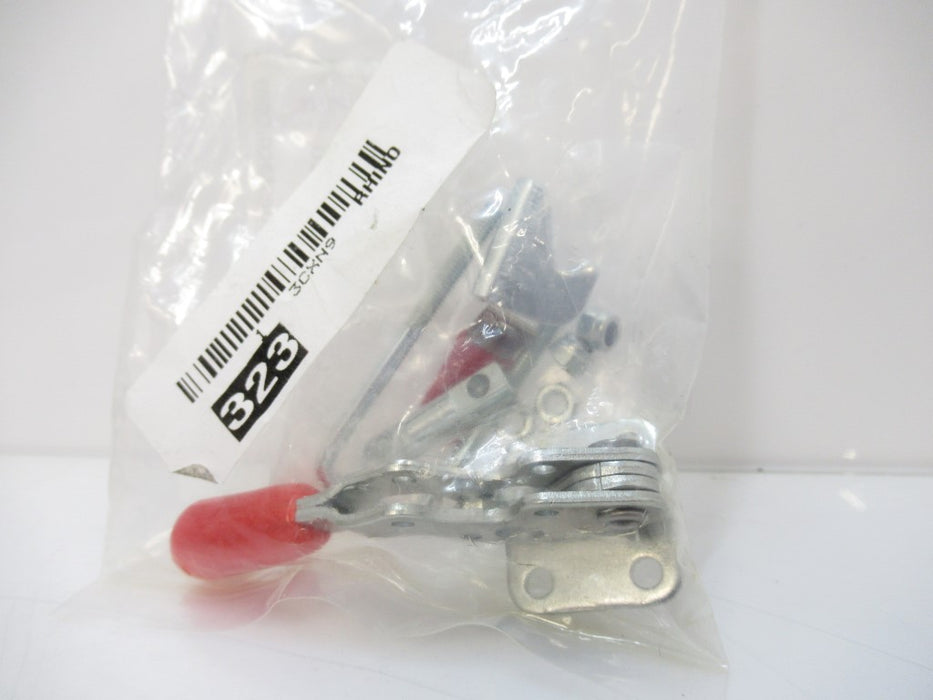

New In Bag

Description

  • Model: 323
  • Product Family: Manual Clamping
  • Product Group: Pull Action Latch Clamps
  • Product Function: Clamping
  • Maximum Holding Capacity (lbf): 360
  • Max Hook Adjustment (in): 1.180
  • Ef: Af Exerting Force: Applied Force (Pushing/Pulling): 27:1
  • Standard Material: Steel
  • Base Mounting Style: Flange
  • Hook Type: U-Hook (Horisontal)
  • Product Type: Standard
  • Weight: 0,15 lb
  • Latch Plate Included
