31299.000 Wohner Holder For Cylindrical Fuse With Led, Class CC 2P 30A

by Wohner
$22.44 USD
FACTORY SUPPLY BRAND NEW
SKU BRE-0043-E
UPC: 4021267312992
Only 1000 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

31299.000

Wohner

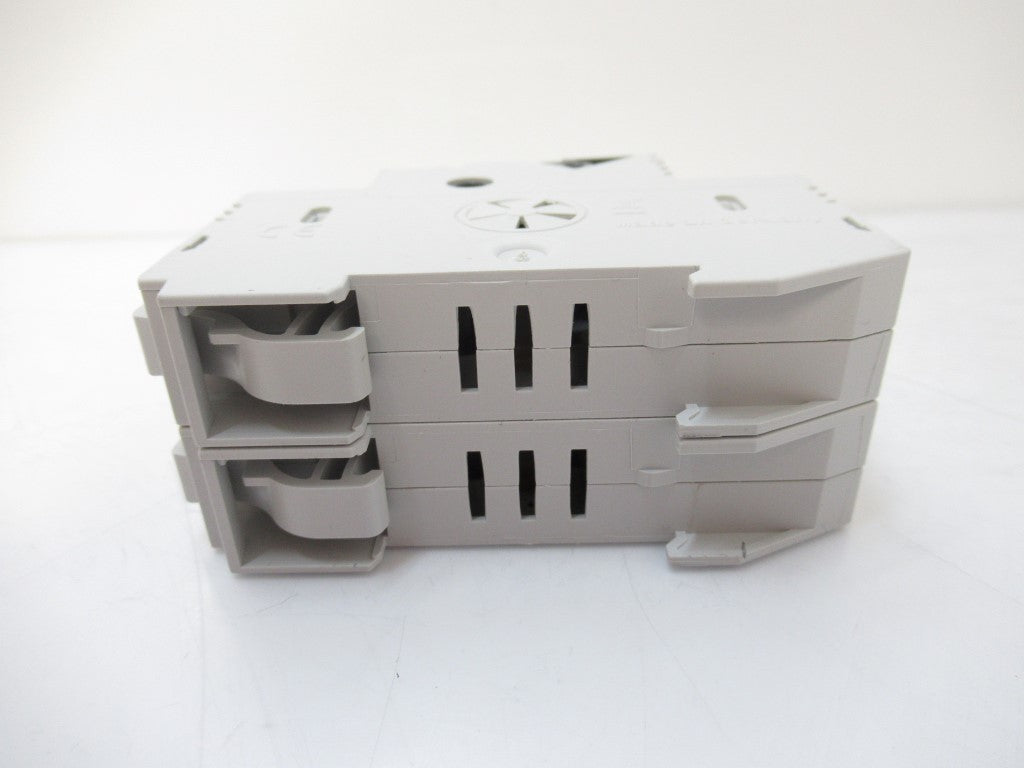

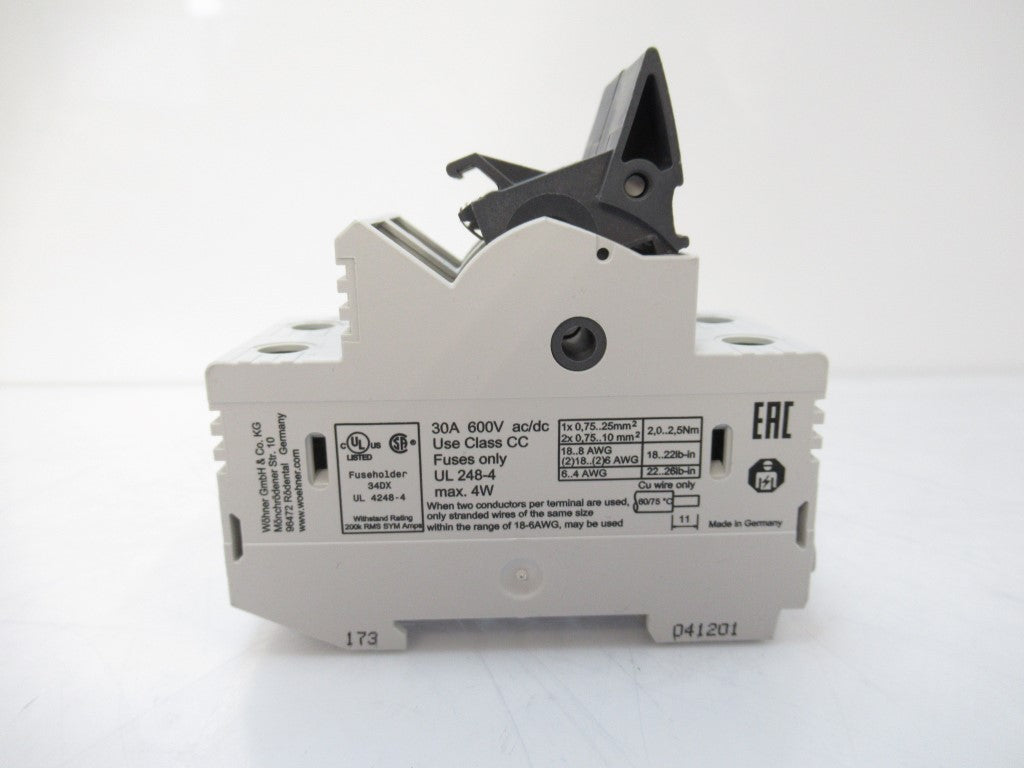

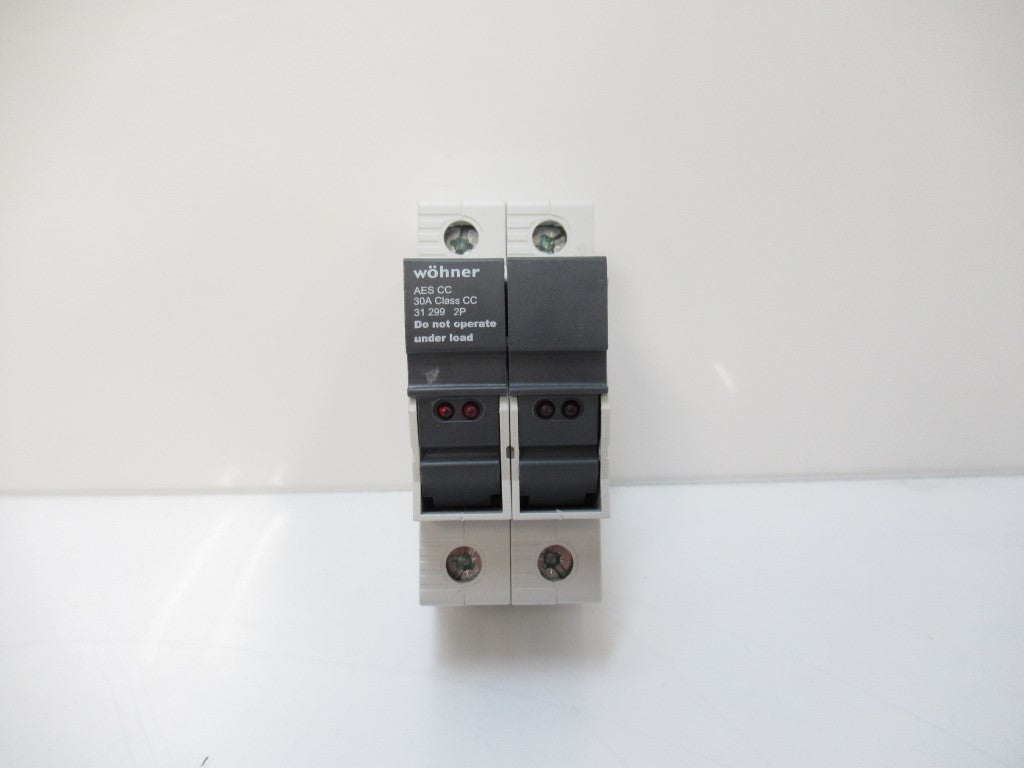

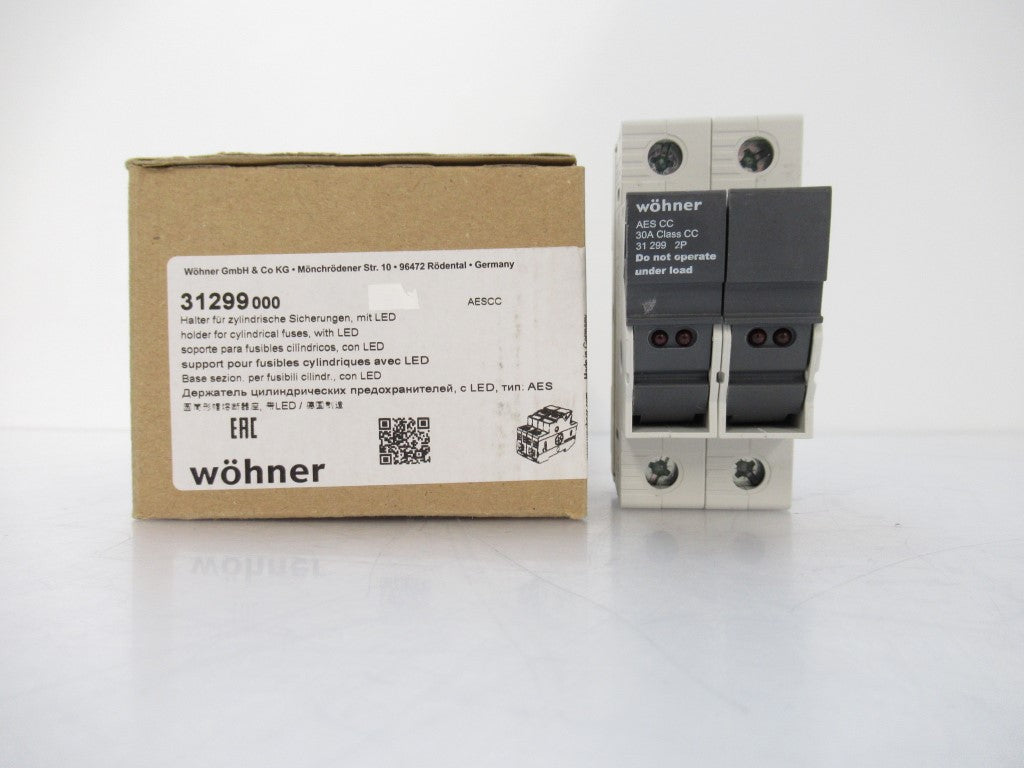

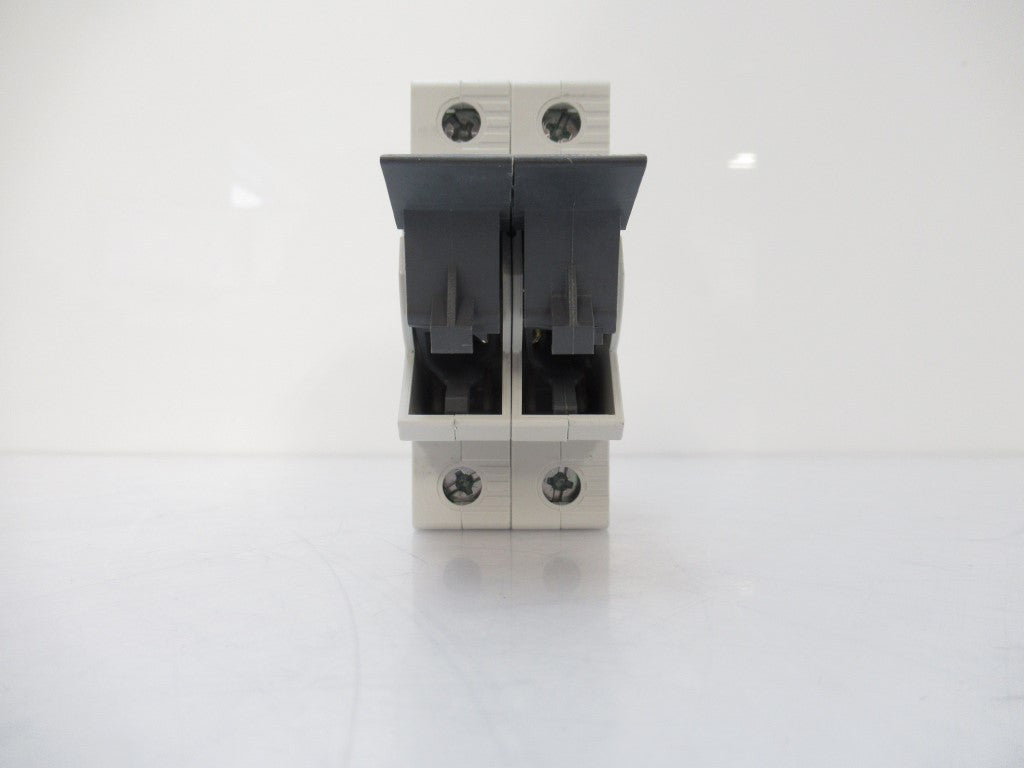

Holder For Cylindrical Fuse With Led

(Sold By Unit, New No Box)

Technical Specifications

  • Fuse Types: Class CC & Midget
  • Voltage Rating: 600V (CSA/UL) 690V (IEC) 1000VDC - Solar
  • Ampere Rating: 30A.
  • LED Indication-Std: 110-600VAC/DC
  • LED Indication-LV: 12 - 72VAC/DC
  • SCCR: Class CC - 200kA Midget - 50kA with KLK fuse
  • Terminal Style: Box Connector
  • Wire size: 2 wires #18-#6 AWG
  • Tightening Torque: 18-22 lb/in (2.0 -2.5Nm)
  • Flammability rating: UL94
  • Approvals: CSA C22.2 no. 39 (file 110285 UL512 (file E230163)
