Phoenix Contact | SKU: TER-0265-E | Barcode: DOES NOT APPLY

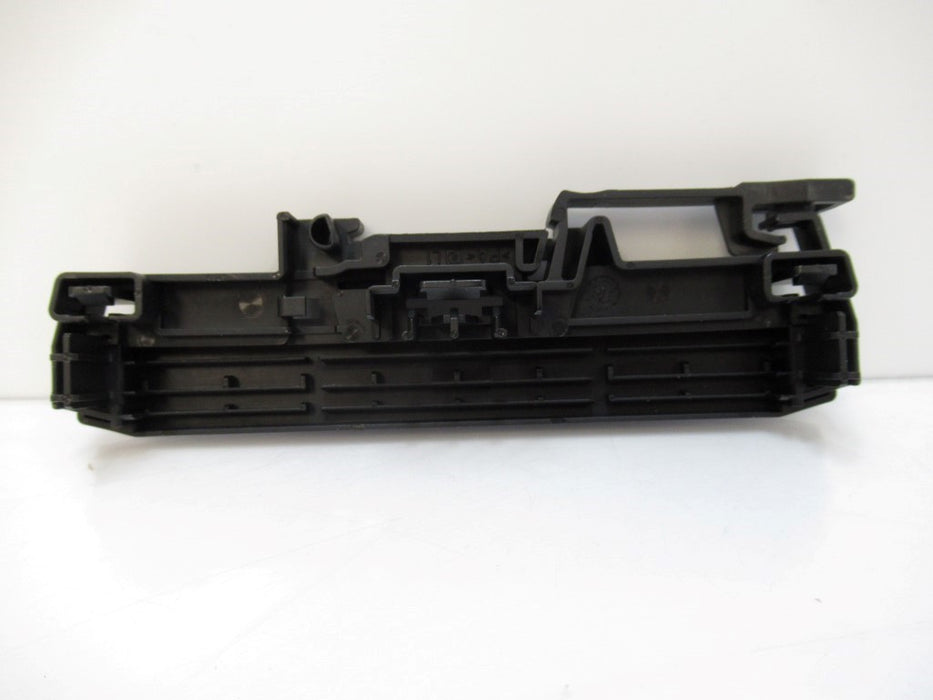

2200172 Phoenix Contact Side Element - UM-PRO LID-92 BK

$5.58 USD

Shipping calculated at checkout.

As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery. Please refer to our Shipping Policy for full details.

🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Tariffs And Fees

Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.

Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.

Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Country Of Origin:

2200172

Phoenix Contact

Side Element - UM-PRO LID-92 BK

Sold By Unit New

Press-drawn section housings, Side element for U-shaped profile cover, width: 10.35 mm, height: 97.51 mm, color: black (9005)

Product properties

Brief article description	Side element
Type	UM-PRO LID-92 BK
Order No.	2200172
Housing type	Press-drawn section housings
Type	Side element for U-shaped profile cover
Mounting type	Latching

Dimensions

Width [ w ]	10.35 mm
Height [ h ]	97.51 mm
Depth [ d ]	39.7 mm

Material specifications

Housing material	Polyamide
Color (RAL)	black (9005)
Flammability rating according to UL 94	V0

Ambient conditions

Ambient temperature (storage/transport)	-40 °C ... 55 °C
Ambient temperature (assembly)	-5 °C ... 100 °C
Ambient temperature (operation)	-40 °C ... 105 °C (depending on power dissipation)
Relative humidity (storage/transport)	80 %

PCB specifications

Number of PCB holders	4 vertical
	2 horizontal
PCB thickness	1.4 mm ... 1.8 mm
Type of PCB mount	Slot

Thermal stability (ball thrust test)

Specification	IEC 60695-10-2:2014-02
Temperature	125 °C
Test duration	1 h
Force	20

Test for assessing the risk of fire (glow wire)

Specification	IEC 60695-2-11:2014-02
Temperature	850 °C
Time of exposure	30 s
