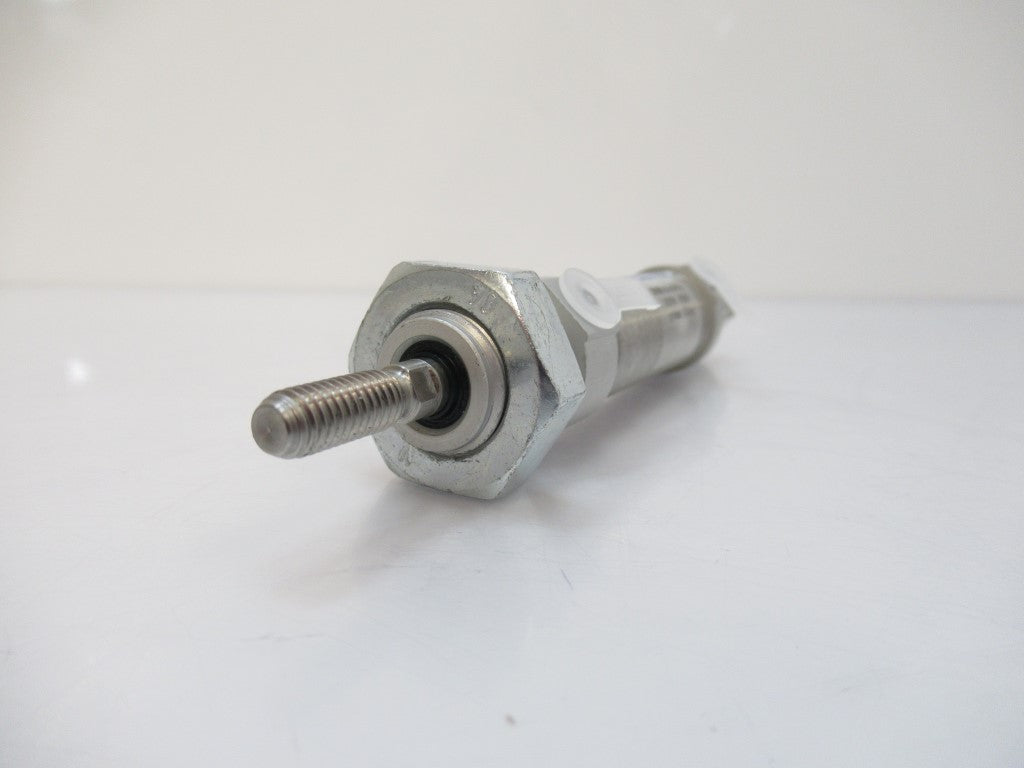

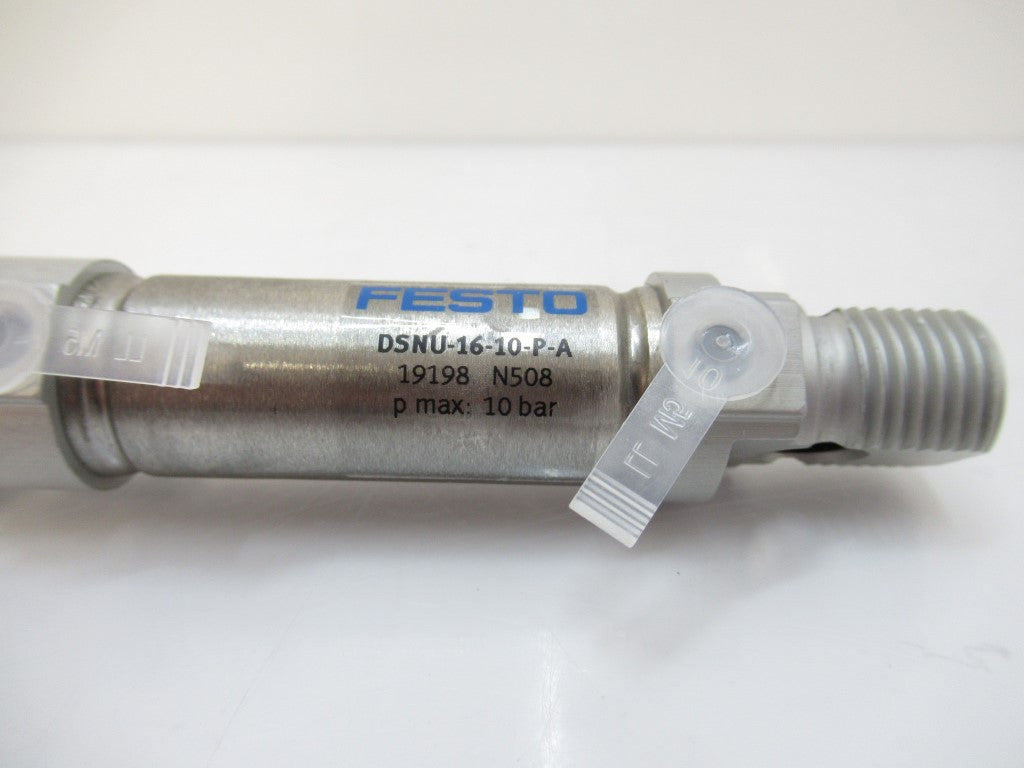

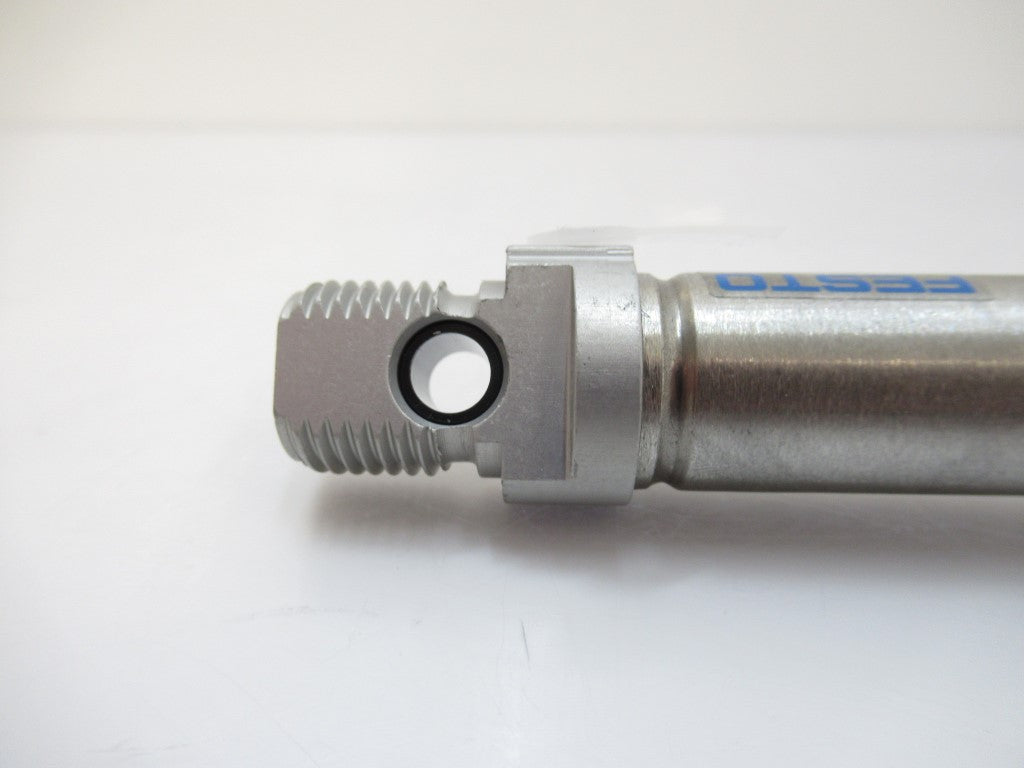

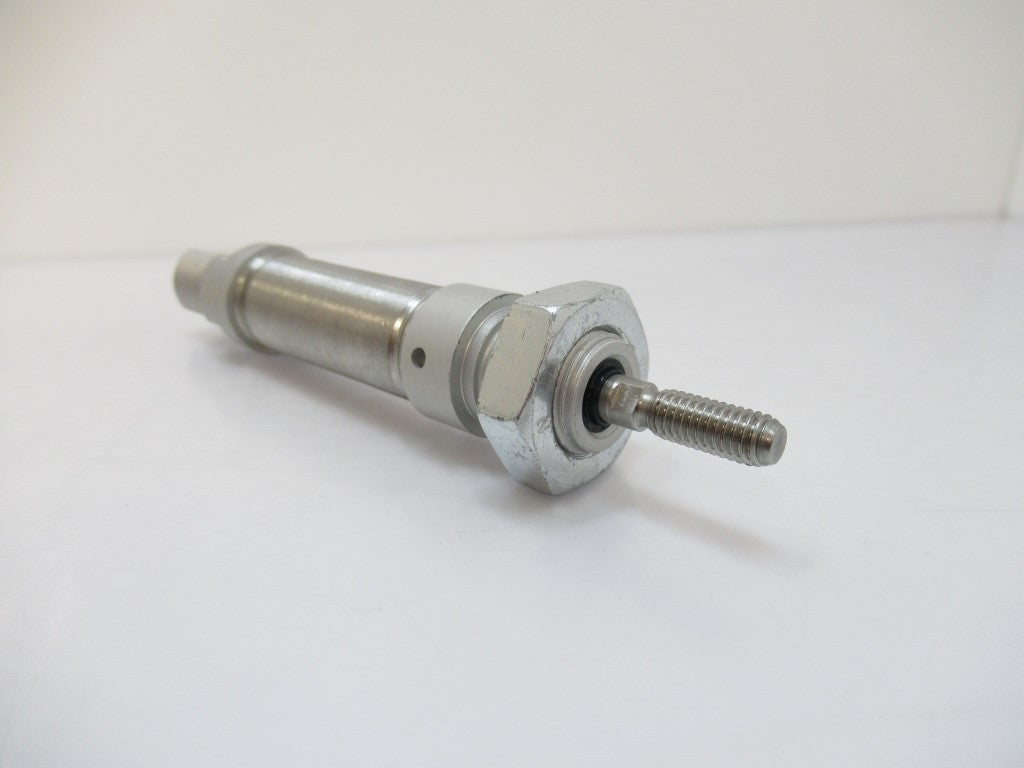

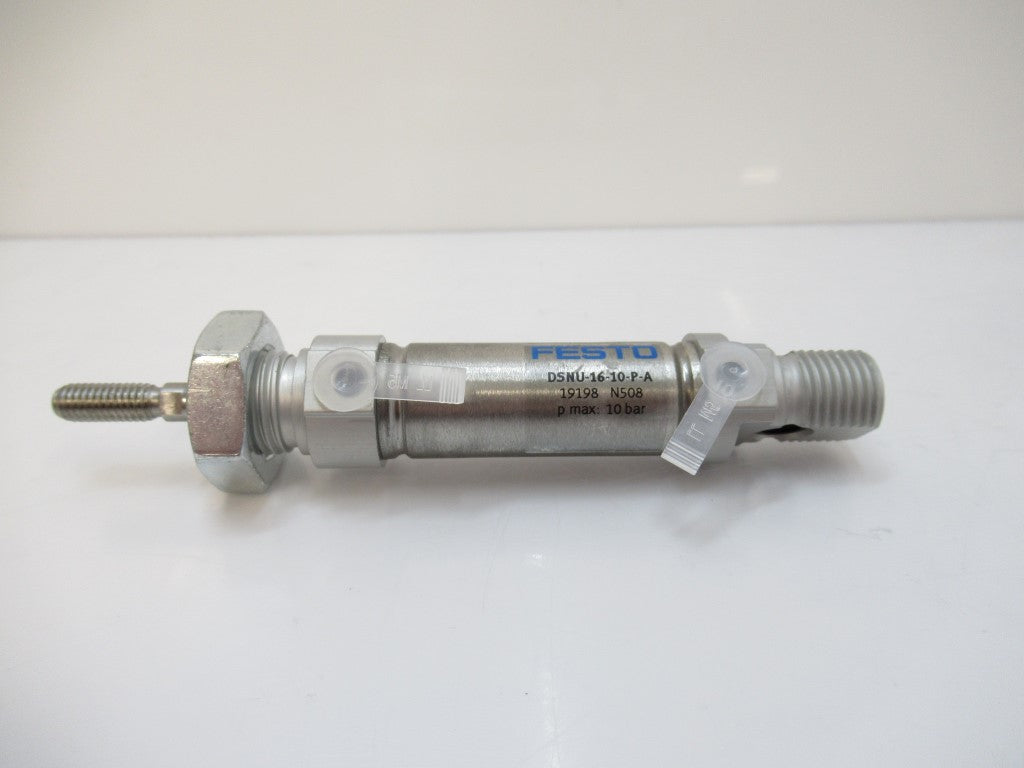

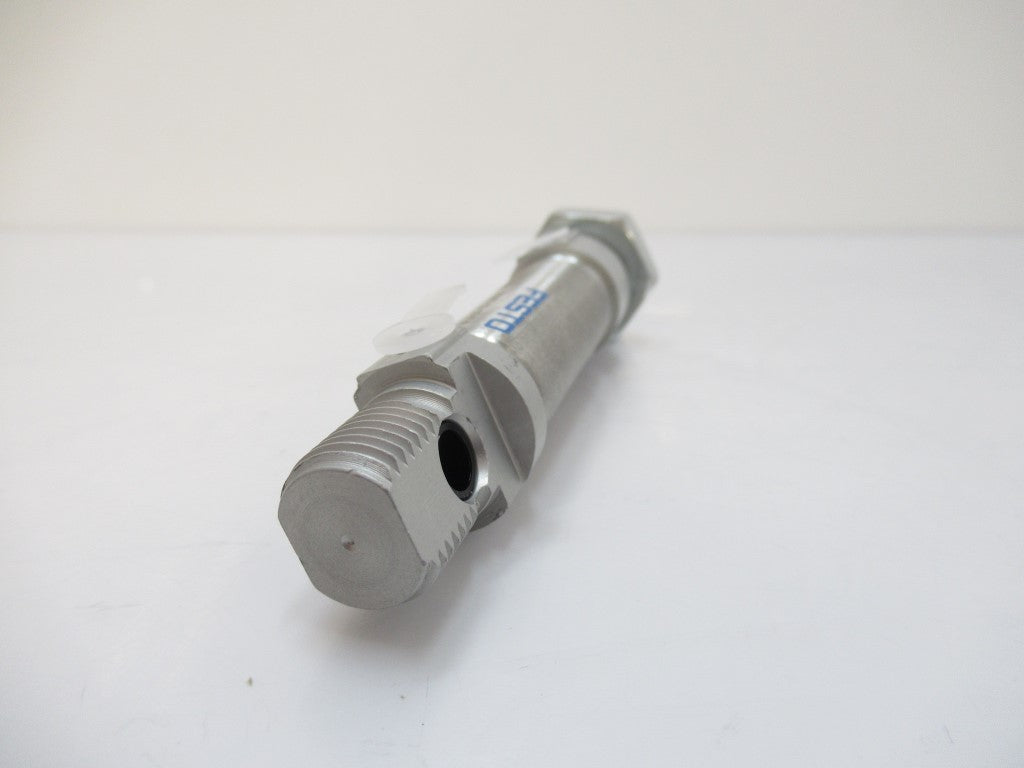

19198 Festo ISO Cylinder DSNU-16-10-P-A

19198 DSNU-16-10-P-A DSNU1610PA

Festo

ISO Cylinder

(New No Box)

Description

• Stroke: 10mm
• Piston Diameter: 16 mm
• Piston Rod Thread: M6
• Type Code: DSNU
• Cushioning: Elastic Cushioning Rings/pads At Both Ends
• Mounting Position: Any
• Conforms To Standard: CETOP RP 52 P; ISO 6432
• Piston Rod End: External Thread
• Design: Piston; Piston Rod; Cylinder Barrel
• Position Sensing: For Proximity Sensor
• Symbol: 00991217
• Variants: Piston Rod At One End
• Operating Pressure: 0.1 MPa ... 1 MPa
• Operating Pressure: 1 bar ... 10 bar
• Mode Of Operation: Double-Acting
• Operating Medium: Compressed Air As Per ISO 8573-1:2010 [7:4:4]
• Information On Operating And Pilot Media: Operation With Oil Lubrication Possible (Required For Further Use)
• Corrosion Resistance Class (CRC): 2 - Moderate Corrosion Stress
• Ambient Temperature: -20 °c ... 80 °c
• Impact Energy In The End Positions: 0.15 J
• Theoretical Force At 6 Bar, Retracting: 103.7 N
• Theoretical Force At 6 Bar, Advancing: 120.6 N
• Moving Mass At 0 Mm Stroke: 23 g
• Additional Weight Per 10 Mm Stroke: 4.6 g
• Basic Weight With 0 Mm Stroke: 89.9 g
• Additional Moving Mass Per 10 mm Stroke: 2 g
• Type Of Mounting: With Accessories
• Pneumatic Connection: M5
• Note On Materials: RoHs-Compliant
• Cover Material: Wrought Aluminum Alloy; Plain Anodized
• Seals Material: NBR; TPE-U(PU)
• Piston Rod Material: High-Alloy Stainless Steel
• Material Of Cylinder Barrel: High-Alloy Stainless Steel
