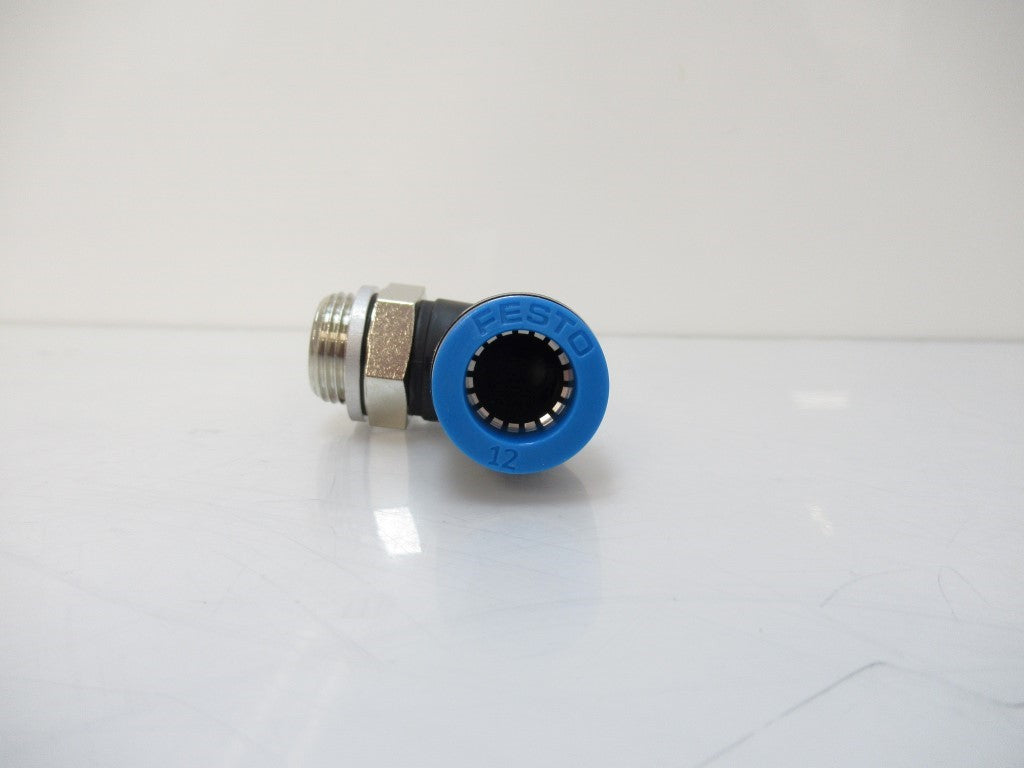

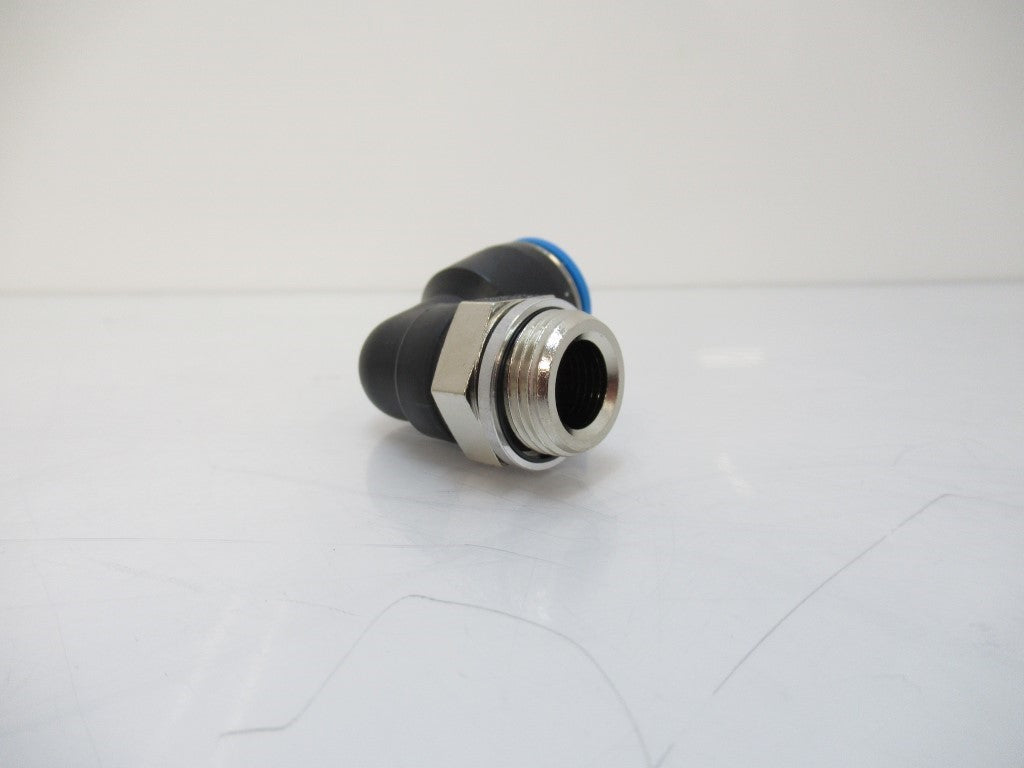

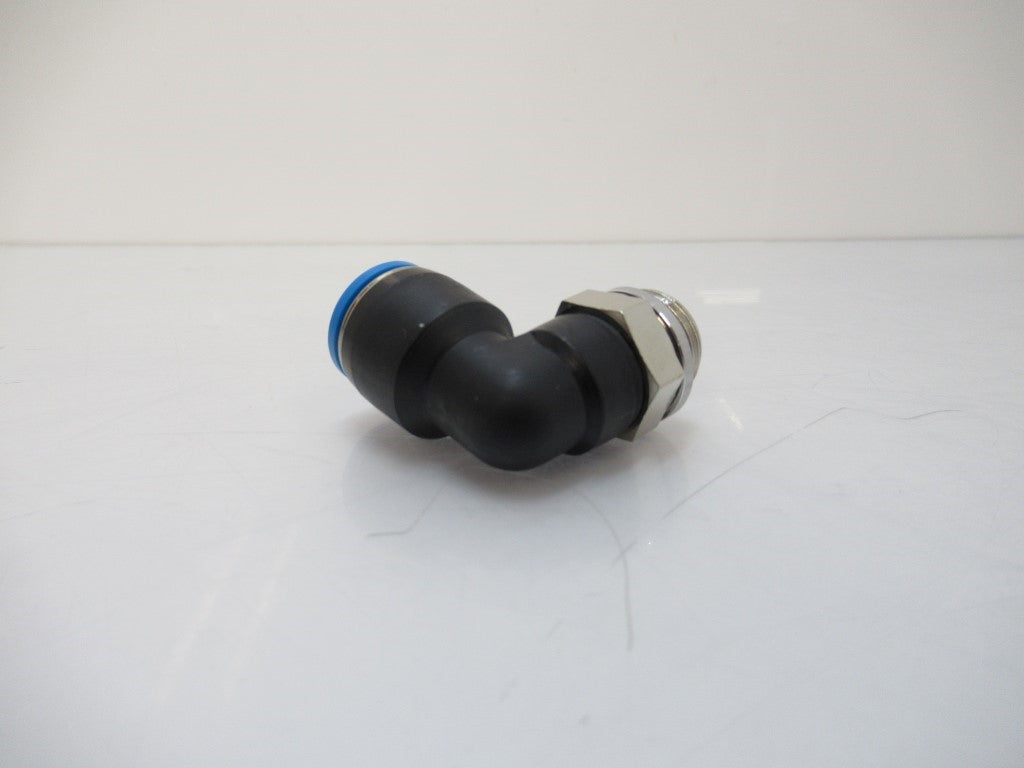

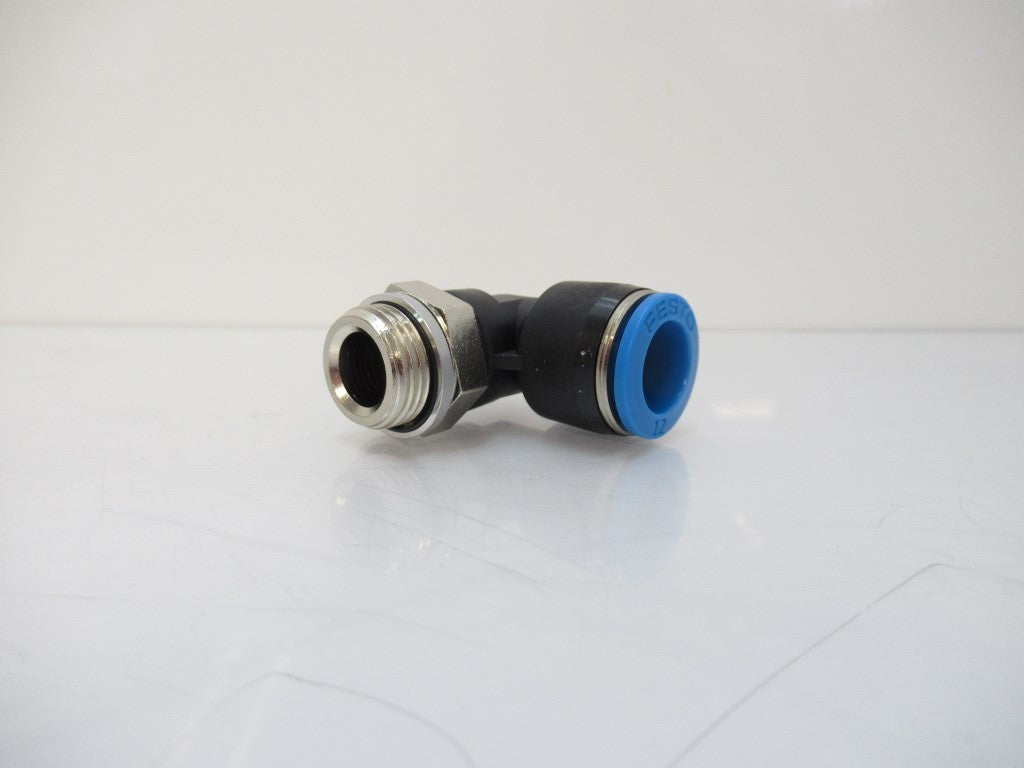

186124 Festo QSL-G3/8-12 Push-In L Fitting Male G3/8 Thread

SKU FIT-0559-E
Original price $8.34 USD - Original price $8.34 USD
Original price
$8.34 USD
$8.34 USD - $8.34 USD
Current price $8.34 USD
Availability:
10 in stock, ready to be shipped
Pre Order

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote
by FESTO

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

186124 QSL-G3/8-12 QSLG3812

Festo

Push-In L Fitting

Sold By Unit, New

Description

  • Size: Standard
  • Nominal Width: 10 mm
  • Type Of Seal On Screwed Trunnion: Sealing Ring
  • Mounting Position: Any
  • Structural Design: Push-Pull Principle
  • Operating Pressure For Entire Temperature Range: -0.95 bar ... 6 bar
  • Temperature-Dependent Operating Pressure: -0.95 bar ... 14 bar
  • Maritime classification: See certificate
  • Information On Operating And Pilot Media: Operation With Oil Lubrication Possible
  • Corrosion Resistance Class (CRC): 1 - Low Corrosion Stress
  • Releasing Ring Color: Blue
  • Note On Materials: RoHS-Compliant
  • Housing Material: PBT
  • Releasing Ring Material: POM
  • Material Of Tubing Seal: NBR
  • Material Of Tube Retaining Claw: High-Alloy Stainless Steel
