186107 Festo QS-G1/8-6-I Push-In Fitting

SKU FIT-0627-E
Sold out
Original price $32.38 USD - Original price $32.38 USD
Original price
$32.38 USD
$32.38 USD - $32.38 USD
Current price $32.38 USD
Availability:
Out of stock

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Festo

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

186107 QS-G1/8-6-I QSG186I

Festo

Push-In Fitting

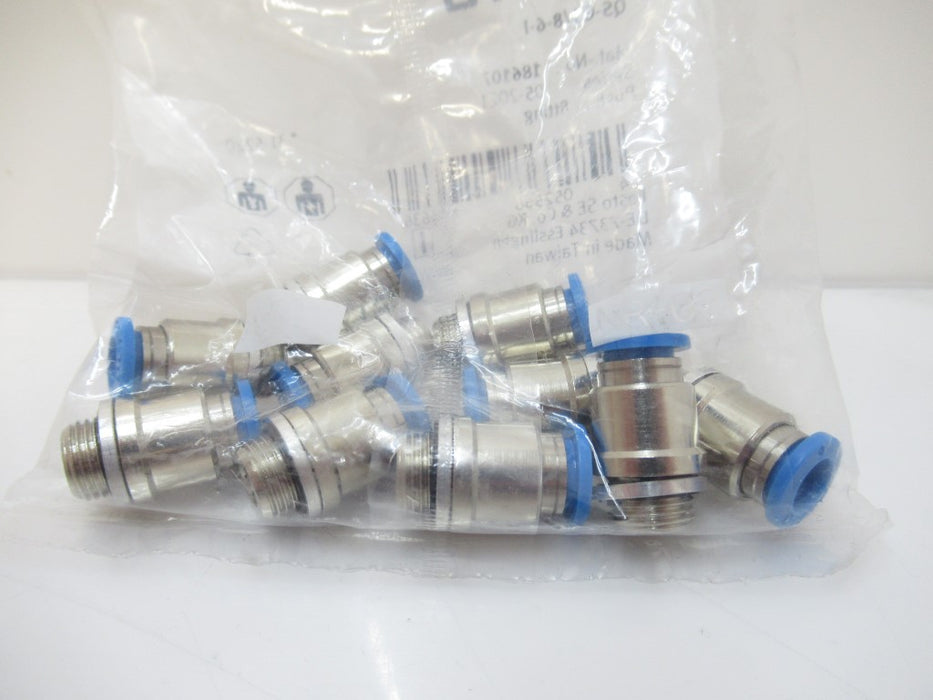

(Sold Per Pack Of 10, New)

Description

  • Size: Standard
  • Nominal Width: 4.2 mm
  • Type Of Seal On Screwed Trunnion: Sealing Ring
  • Mounting Position: Any
  • Structural Design: Push-Pull Principle
  • Operating Pressure For Entire Temperature Range: -0.95 bar ... 6 bar
  • Temperature-Dependent Operating Pressure: -0.95 bar ... 14 bar
  • Information On Operating And Pilot Media: Operation With Oil Lubrication Possible
  • Pneumatic Connection 1: External Thread G1/8
  • Pneumatic Connection 2: For Pneumatic Tubing Outside Diameter 6 mm
  • Releasing Ring Color: Blue
  • Note On Materials: RoHS-Compliant
  • Housing Material: Brass, Nickel-Plate
  • Releasing Ring Material: POM
  • Material Of Tubing Seal: NBR
  • Material Of Tube Retaining Claw: High-Alloy Stainless Steel
