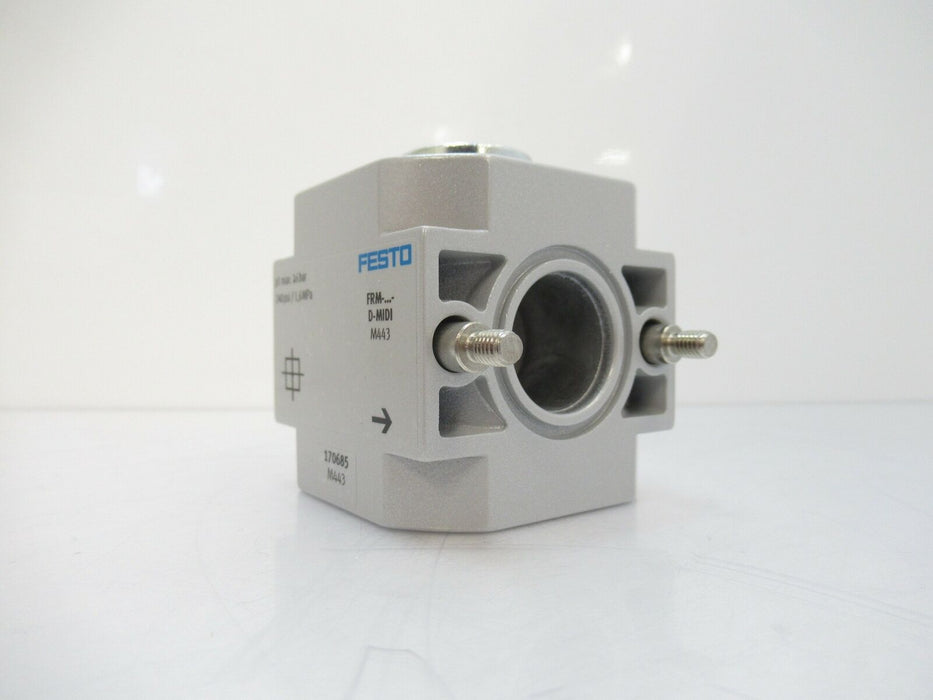

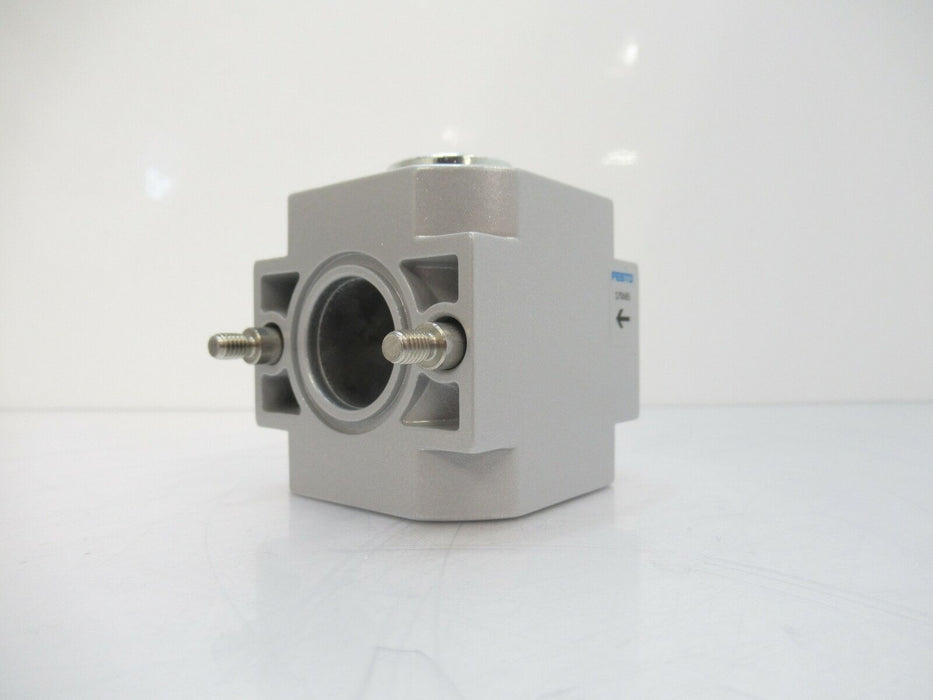

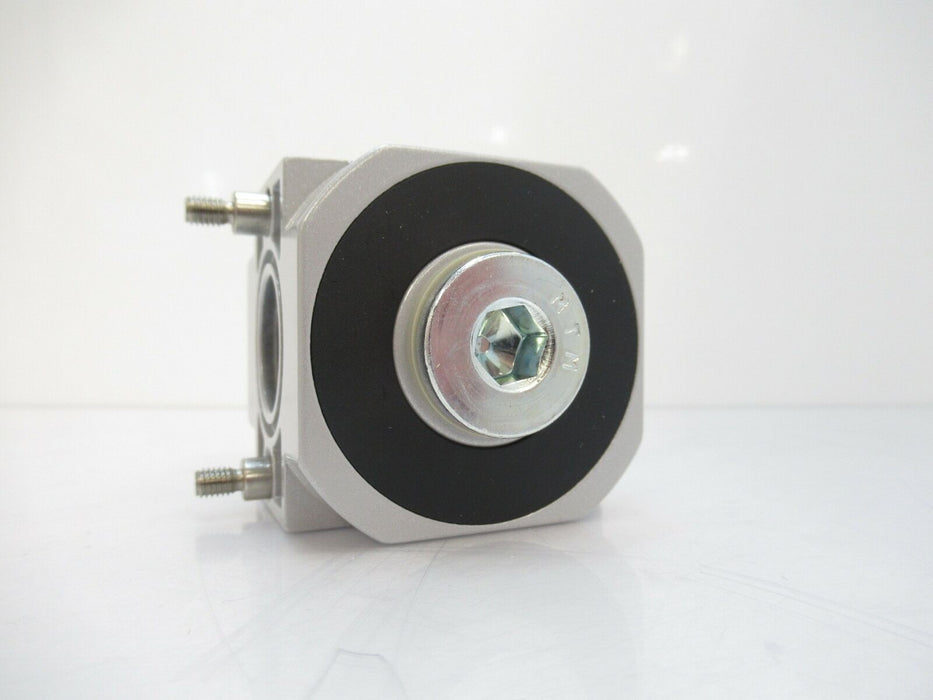

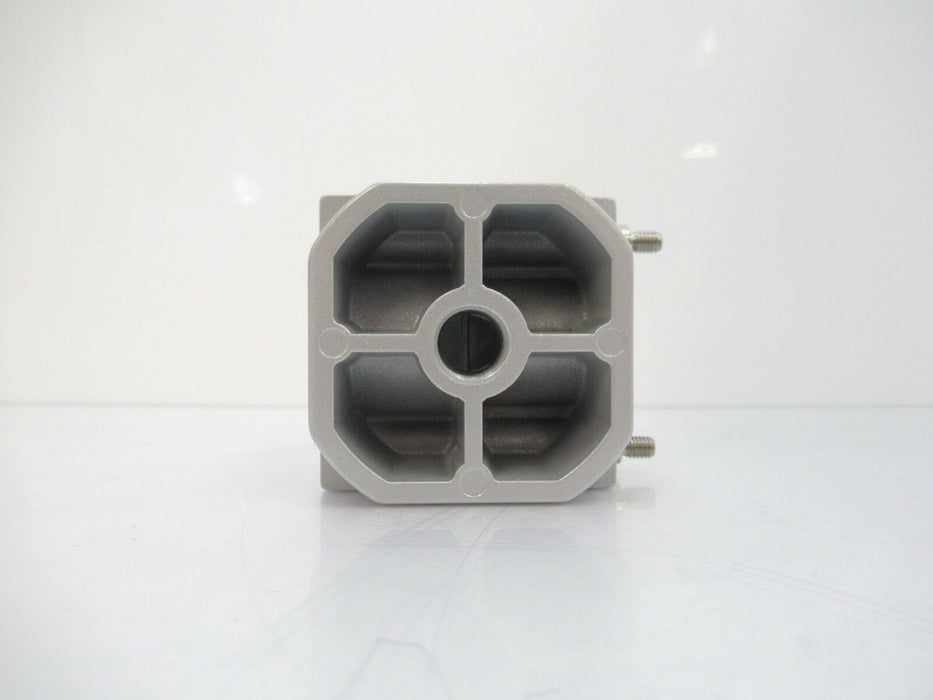

170685 FRM-D-MIDI Festo Branching Module 4 Connections

Product Information

• Assembly Position: Any
• Design Structure: Branching Module
• Operating Pressure: 0 ... 16 Bar
• Standard Nominal Flow Rate In Main Flow Direction 1-2: 8,200 L/min
• Operating Medium: Compressed Air In Accordance With Iso8573-1:2010 [7:-:-] Inert Gases
• Corrosion Resistance Classification Crc: 2 - Moderate Corrosion Stress
• Storage Temperature: -10 ... 60 °c
• Air Purity Class At Output: Compressed Air In Accordance With Iso8573-1:2010 [7:-:-] Inert Gases
• Medium Temperature: -10 ... 60 °c
• Ambient Temperature: -10 ... 60 °c
• Maritime Classification: See Certificate
• Product Weight: 382 G
• Pneumatic Connection, Port 3: G1/2
• Pneumatic Connection, Port 4: G1/4
• Materials Note: Free Of Copper And Ptfe Conforms To Rohs
• Material Housing: Aluminium Die Cast
